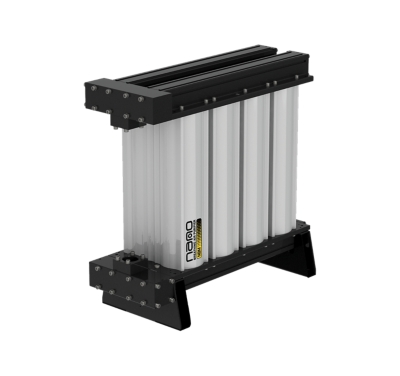

Image of nano NBM Breathing Air Purification Module

Breathing Air

Breathing Air Purification Modules

Are you tired of dealing with an expensive, complex, and unsupported breathing air system? You're not alone. Replacing the entire system, including the dryer, filters, purifier, and monitor, is a costly and time-consuming process with limited options. Fortunately, there's now a better solution. Introducing nano's NBM breathing air module. By replacing only the purifier, you can get your system back up and running at a fraction of the cost and hassle. Experience the convenience and efficiency of nano's NBM breathing air module and save yourself the trouble.

Key Specs:

Flow Rate

120 to 960 scfm

Connections

1” to 2 ½” NPT(F)

Standards

OSHA Grade D

CSA Z180.1-13

Product Documentation

Features

With unique catalyst purifier cartridges that are easy to replace, these compact and cost effective modules provide are simple to operate and maintain.

The multi-stage disposable purification cartridges include an inlet diffuser, a mixed bed purifier to remove odor, taste and carbon monoxide (CO), and a 1.0 micron particulate outlet filter for a long service life with minimum maintenance.  Optional carbon monoxide (CO) monitor available.

Free standing purifier requires no power, needs no controls and can be either floor or wall mounted.


Specifications of Our Models

Breathing Air

Purifier System

Model

Inlet Connection

 Rated Flow at 100 psig (scfm)

NPT (F)

Inlet & Outlet

NBM 030

 ½”

30

NBM 120

1"

120

NBM 240

1"

240

NBM 480

2"

480

NBM 720

2 ½”

720

NBM 960

2 ½”

960

Specifications

Maximum working pressure

232 psig

Recommended operating temperature range

35 to 86°F

Performance

Maximum outlet air CO content

5 ppm

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.

Related Products

Breathing Air Case

Our portable breathing air purifier case provides a robust breathing air system design to be easily taken anywhere by individuals or multiple users.

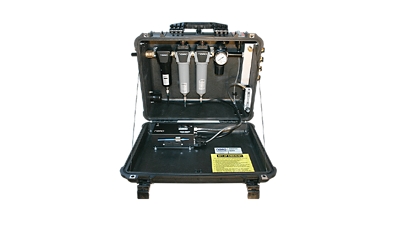

A nano breathing air case, open to show its internal components

Breathing Air Panel

These breathing air panels can be wall-mounted in any location, making them ideal for a confined space, a hazardous area, or a tank cleaning location.

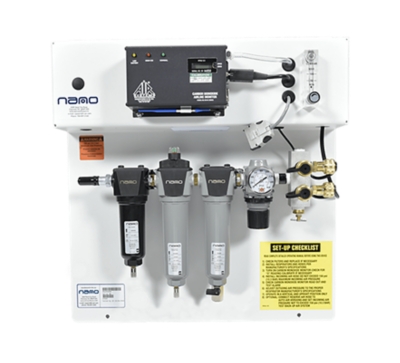

A nano breathing air panel

Modular Breathing Air Systems

The nano-purification solutions modular breathing air systems provide a multi-user, all-in-one packaged solution for CO and CO2 removal with outlet flow rates available from 6 to 486 scfm.

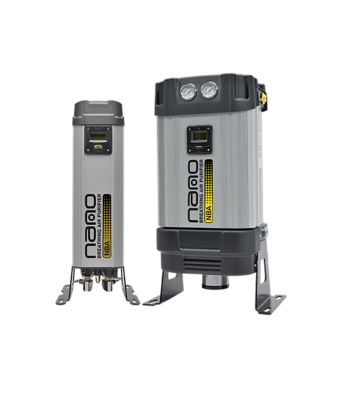

Two sizes of the NBA breathing air modules offered by nano
