Key Specs:
Flow Rate
4.1 to 288 scfm
Connection
3/8” to 3” NPT
Filtration
5 & 1 micron
Product Documentation

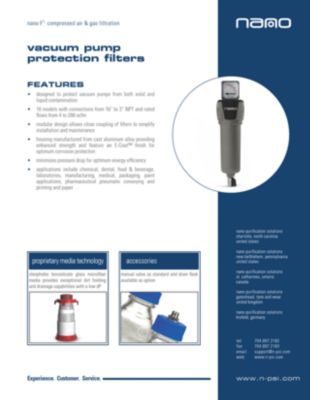

- Brochures
Specifications of our models
Filter Models |
Element Part No. |
Inlet & Outlet |
Exhaust Flow Rate (Vacuum Displacement) |
|---|---|---|---|
NPT |
scfm |
||
NPP 0035 (grade) |
E 0035 (grade) |
⅜” |
4.1 |
NPP 0050 (grade) |
E 0050 (grade) |
½” |
6.5 |
NPP 0070 (grade) |
E 0090 (grade) |
½” |
11.8 |
NPP 0085 (grade) |
E 0090 (grade) |
¾” |
14.7 |
NPP 0125 (grade) |
E 0135 (grade) |
¾” |
20.6 |
NPP 0135 (grade) |
E 0135 (grade) |
1” |
23.5 |
NPP 0175 (grade) |
E 0175 (grade) |
1” |
29.4 |
NPP 0280 (grade) |
E 0325 (grade) |
1 ¼” |
44.1 |
NPP 0325 (grade) |
E 0325 (grade) |
1 ½” |
50.0 |
NPP 0400 (grade) |
E 0450 (grade) |
1 ½” |
59.0 |
NPP 0450 (grade) |
E 0450 (grade) |
2” |
67.5 |
NPP 0700 (grade) |
E 0700 (grade) |
2” |
106 |
NPP 0850 (grade) |
E 1000 (grade) |
2 ½” |
118 |
NPP 1000 (grade) |
E 1000 (grade) |
3” |
138 |
NPP 1250 (grade) |
E 1250 (grade) |
3” |
212 |
NPP 1500 (grade) |
E 1500 (grade) |
3” |
288 |
Element Performance |
PP5 |
PP1 |
|---|---|---|
Particle removal |
5 micron |
1 micron |
Maximum oil carryover at 68°F |
1 ppm |
1 ppm |
Pressure drop - clean |
0.3 psid |
0.6 psid |
Pressure drop - recommended replacement |
1.5 psid |
1.5 psid |
Recommended operating temperature range |
35 to 212°F |
|
Design operating temperature range |
35 to 248°F |
|
Flow direction through element |
outside to Inside |
|
Maximum element life |
12 months or 8000 hours |
|
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
