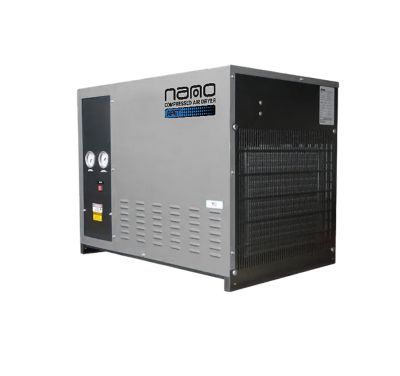

Plug-and-play design is fully packaged into a simple compact design, allowing these models to fit into the smallest spaces.
Key Specs:
Flow Rate
45 to 1000 scfm
Connection
½” to 1" NPT
PressurE RATING
500 or 725 psig
Product Documentation
- Brochures
- Material Safety Data Sheets

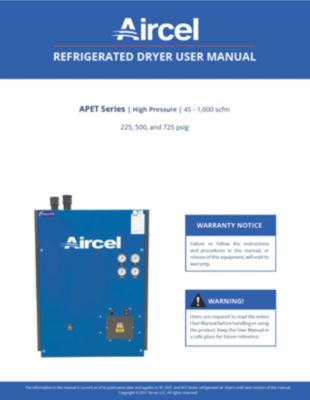

- User Guides
Features
Corrosion-resistant stainless steel tube in tube heat exchanger
Pre- and after filter packages available to provide additional energy savings and improved air quality.
Specifications of Our Models
High-Pressure Refrigerated Dryer Model |
Inlet & |
Flow Rate | FLA |
Power Supply (V/Ph/60Hz) | |||
|---|---|---|---|---|---|---|---|
NPT |
at 500 psig | at 725 psig | amps |
115/1 |
230/1 |
460/3 |
|
| APET-45 | ½” | 45 | 31 | 4.5 | • | ||
| APET-65 | ½” | 65 | 45 | 5.5 | • | ||
| APET-80 | ½” | 80 | 55 | 8.0 | • | ||
| APET-125 | ½” | 125 | 86 | 8.0 | • | ||
| APET-200 | 1" | 200 | 138 | 14.5 | • | ||
| APET-260 | 1" | 260 | 179 | 13.5 | • | ||
| APET-415 | 1" | 415 | 286 | 8.0 | • | ||
| APET-570 | 1" | 570 | 393 | 9.5 | • | ||
| APET-860 | 1" | 860 | 593 | 12.5 | • | ||
| APET-1000 | 1" | 1000 | 690 | 11.5 | • | ||
| Specifications | |
|---|---|
Design operating pressure range |
200 to 725psig |
Inlet temperature range |
40 to 120°F |
Ambient temperature range |
40 to 120°F |
| Electrical class | NEMA 1 |
| Outlet dew point | 38°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
