Plug-and-play design is fully packaged into a simple compact design, allowing these models to fit into the smallest spaces.
Key Specs:
Flow Rate
20 to 275 scfm
Connection
½” NPT
PRESSURE RATING
1200, 3625, 5000 or 6000 psig
Product Documentation

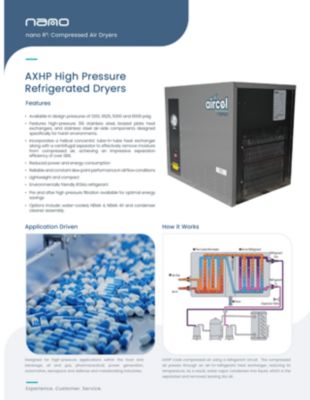

- Brochures
- General Arrangement Drawings

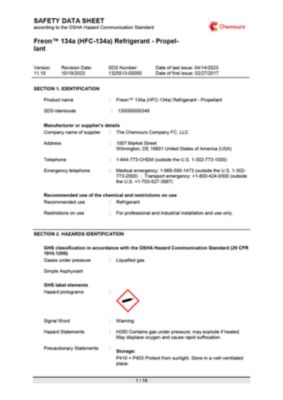

- Material Safety Data Sheets

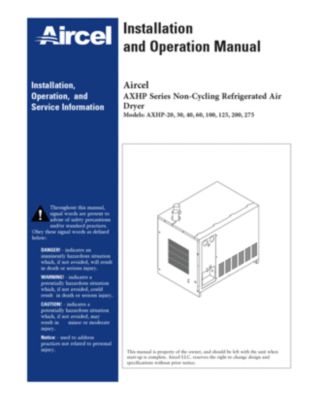

- User Guide
Features
Corrosion-resistant stainless steel tube in tube heat exchanger
Pre- and after filter packages available to provide additional energy savings and improved air quality.
Specifications of Our Models
High-Pressure Refrigerated Dryer Model |
Inlet & |
Rated Flow |
Absorbed Power |
Power Supply (V/Ph/60Hz) | ||
|---|---|---|---|---|---|---|
NPT |
scfm |
kW |
115/1 |
230/1 |
460/3 |
|
1200 psig |
||||||
| AXHP-20-1200 | ½” | 20 | 0.29 | • | ||
| AXHP-30-1200 | ½” | 30 | 0.42 | • | ||
| AXHP-40-1200 | ½” | 40 | 0.57 | • | ||
| AXHP-60-1200 | ½” | 60 | 0.83 | • | ||
| AXHP-100-1200 | ½” | 100 | 1.05 | • | ||
| AXHP-125-1200 | ½” | 125 | 1.35 | • | ||
| AXHP-200-1200 | ½” | 200 | 1.99 | • | ||
| AXHP-275-1200 | ½” | 275 | 2.53 | • | ||
| 3625 psig | ||||||
| AXHP-20-3625 | ½” | 20 | 0.29 | • | ||
| AXHP-30-3625 | ½” | 30 | 0.42 | • | ||
| AXHP-40-3625 | ½” | 40 | 0.57 | • | ||
| AXHP-60-3625 | ½” | 60 | 0.83 | • | ||
| AXHP-100-3625 | ½” | 100 | 1.05 | • | ||
| AXHP-125-3625 | ½” | 125 | 1.35 | • | ||
| AXHP-200-3625 | ½” | 200 | 1.99 | • | ||
| AXHP-275-3625 | ½” | 275 | 2.53 | • | ||
| 5000 psig | ||||||
| AXHP-20-5000 | ½” | 20 | 0.29 | • | ||
| AXHP-30-5000 | ½” | 30 | 0.42 | • | ||
| AXHP-40-5000 | ½” | 40 | 0.57 | • | ||
| AXHP-60-5000 | ½” | 60 | 0.83 | • | ||
| AXHP-100-5000 | ½” | 100 | 1.05 | • | ||
| AXHP-125-5000 | ½” | 125 | 1.35 | • | ||
| AXHP-200-5000 | ½” | 200 | 1.99 | • | ||
| AXHP-275-5000 | ½” | 275 | 2.53 | • | ||
| 6000 psig | ||||||
| AXHP-20-6000 | ½” | 20 | 0.29 | • | ||
| AXHP-30-6000 | ½” | 30 | 0.42 | • | ||
| AXHP-40-6000 | ½” | 40 | 0.57 | • | ||
| AXHP-60-6000 | ½” | 60 | 0.83 | • | ||
| AXHP-100-6000 | ½” | 100 | 1.05 | • | ||
| AXHP-125-6000 | ½” | 125 | 1.35 | • | ||
| AXHP-200-6000 | ½” | 200 | 1.99 | • | ||
| AXHP-275-6000 | ½” | 275 | 2.53 | • | ||
| Specifications | |
|---|---|
Inlet temperature range |
40 to 120°F |
Ambient temperature range |
40 to 120°F |
Electrical class |
NEMA 1 |
| Outlet dew point | 38°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
