ABP aircel Blower Purge Desiccant Dryer

Desiccant Compressed Air Dryers

nano aircel Blower Purge Dryers

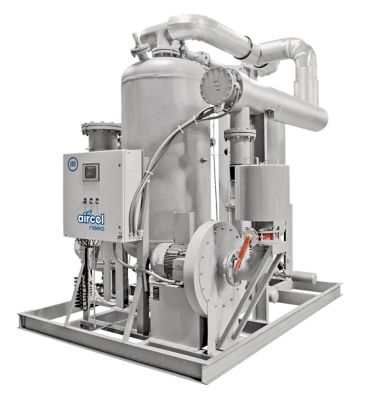

The nano aircel D5 ABP blower purge twin tower desiccant compressed air dryers are designed to remove water vapor from your compressed air, lowering the pressure dewpoint to -40°F.  As the size of your compressed air system increases, it becomes more important to reduce purge air consumption. The ABP range does just that, with the purge rate averaging 0-2% over a 4-hour cycle for dry air cooling.

Key Specs:

Flow Rate

800 to 6000 scfm

Connection

3” NPT(F) to 8” Flg

Air Quality

ISO 8573.1:2010

Product Documentation

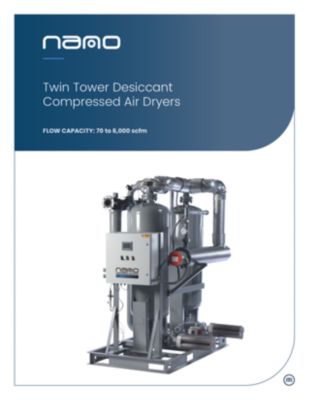

The brochure for the aircel line of twin tower desiccant dryers, models ABP and AEHD

D5 ABP/AEHD - Brochure

Filename
EN-D5-HLA-ABP-AEHD-brochure-aircel-twin-tower-desiccant-dryers-REV-006.pdf
Size
9 MB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Application Worksheet

Filename
EN-D-series-worksheet-desiccant-dryers.pdf
Size
212 KB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Technical Paper

Filename
EN-D-Series-technical-paper-desiccant-dryers.pdf
Size
450 KB
Format
application/pdf
View

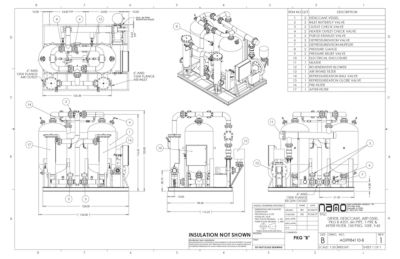

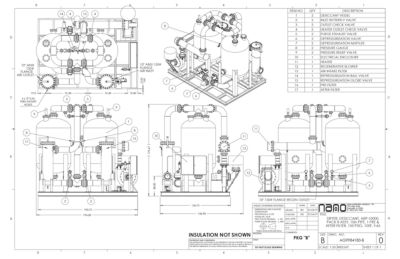

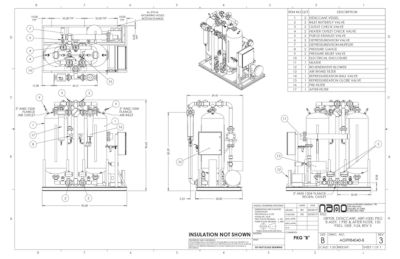

The general arrangement drawing for the aircel ABP 800 model

D5 ABP 800 - GA Drawing

Filename
D5-ABP-800-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
529 KB
Format
application/pdf
View

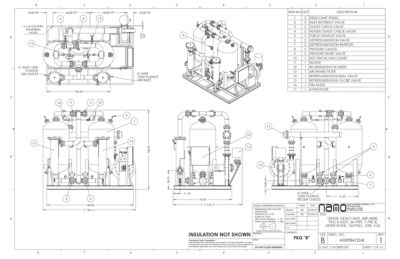

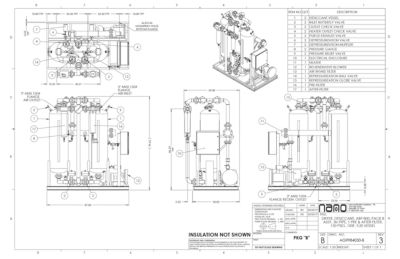

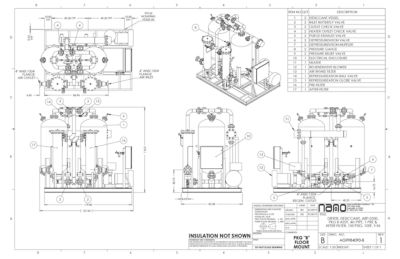

The general arrangement drawing for the aircel ABP 1000 model

D5 ABP 1000 - GA Drawing

Filename
D5-ABP-1000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
527 KB
Format
application/pdf
View

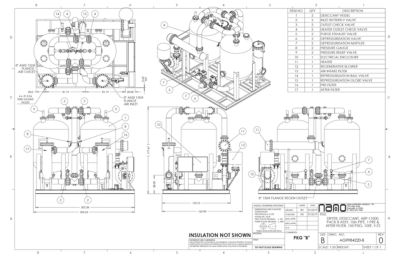

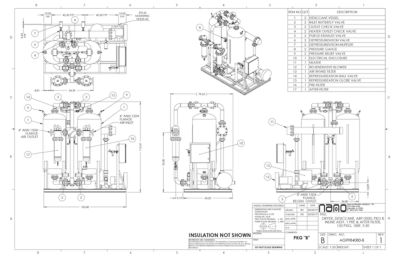

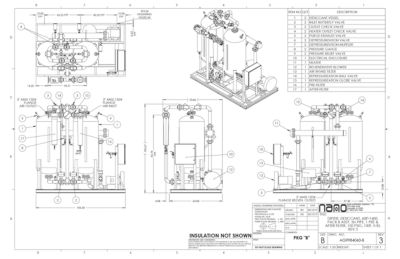

The general arrangement drawing for the aircel ABP 1200 model

D5 ABP 1200 - GA Drawing

Filename
D5-ABP-1200-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
524 KB
Format
application/pdf
View

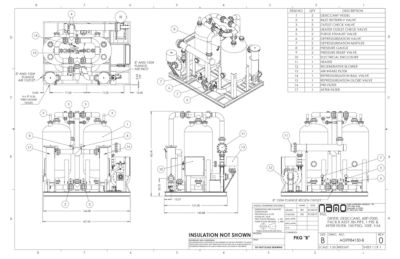

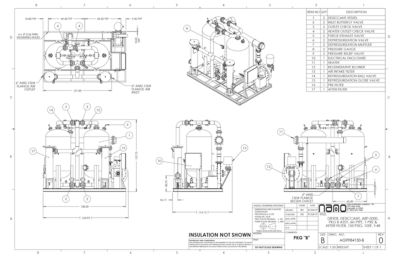

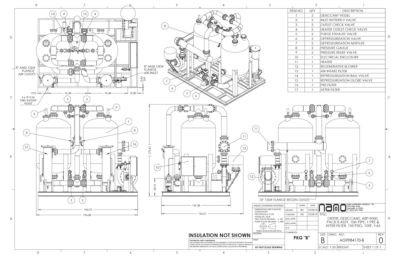

The general arrangement drawing for the aircel ABP 1400 model

D5 ABP 1400 - GA Drawing

Filename
D5-ABP-1400-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
537 KB
Format
application/pdf
View

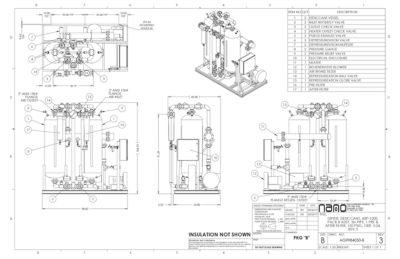

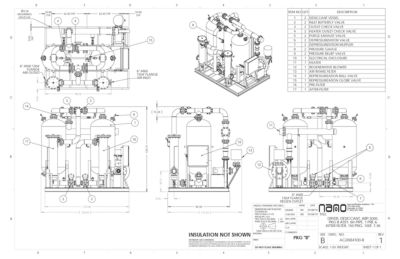

The general arrangement drawing for the aircel ABP 1600 model

D5 ABP 1600 - GA Drawing

Filename
D5-ABP-1600-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
513 KB
Format
application/pdf
View

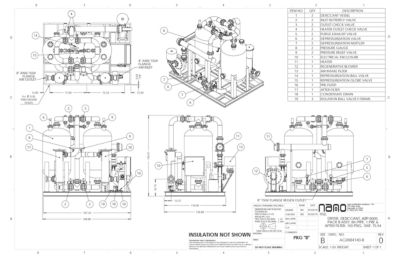

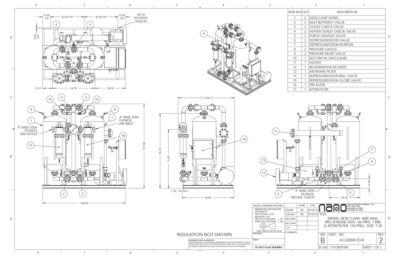

The general arrangement drawing for the aircel ABP 2000 model

D5 ABP 2000 - GA Drawing

Filename
D5-ABP-2000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
607 KB
Format
application/pdf
View

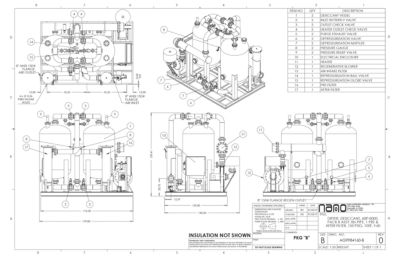

The general arrangement drawing for the aircel ABP 2500 model

D5 ABP 2500 - GA Drawing

Filename
D5-ABP-2500-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
672 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 3000 model

D5 ABP 3000 - GA Drawing

Filename
D5-ABP-3000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
612 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 3500 model

D5 ABP 3500 - GA Drawing

Filename
D5-ABP-3500-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
772 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 4000 model

D5 ABP 4000 - GA Drawing

Filename
D5-ABP-4000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
703 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 5000 model

D5 ABP 5000 - GA Drawing

Filename
D5-ABP-5000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
683 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 6000 model

D5 ABP 6000 - GA Drawing

Filename
D5-ABP-6000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
647 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 7000 model

D5 ABP 7000 - GA Drawing

Filename
D5-ABP-7000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
801 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 8000 model

D5 ABP 8000 - GA Drawing

Filename
D5-ABP-8000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
806 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 9000 model

D5 ABP 9000 - GA Drawing

Filename
D5-ABP-9000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
879 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 10000 model

D5 ABP 10000 - GA Drawing

Filename
D5-ABP-10000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
937 KB
Format
application/pdf
View
The general arrangement drawing for the aircel ABP 11000 model

D5 ABP 11000 - GA Drawing

Filename
D5-ABP-11000-ga-general-arrangement-drawing-aircel-blower-purge-desiccant-dryer.pdf
Size
931 KB
Format
application/pdf
View
D5-ABP-User-Guide-Manual-Blower-Purge-Desiccant-Air-Dryer

D5 ABP Blower Purge Desiccant Air Dryer User Guide

Filename
D5-ABP-user-guide-manual-blower-purge-desiccant-dryer.pdf
Size
12 MB
Format
application/pdf
View

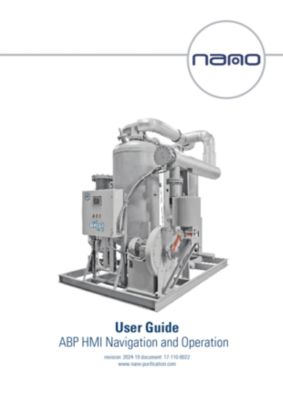

D5-ABP-User-Guide-Manual-Blower-Purge-Desiccant-Air-Dryer

D5 ABP HMI Navigation and Operation User Guide

Filename
D5-ABP-user-guide-controller-blower-purge-desiccant-dryer.pdf
Size
2 MB
Format
application/pdf
View

Features

Regeneration circuit is fully insulated for maximum efficiency, and  specifically designed for a long and dependable operating life in harsh industrial environments

Utilizes atmospheric air for regeneration, making for easy maintenance. Also includes a rugged construction with TEFC premium motor that includes filtered air intake

ASME code pressure vessels, UL/cUL compliant, made in the USA activated alumina, lifting lugs and/or fork lift pockets

Specifications of our models

Dryer Models

Recommended Pre & After Filtration (1)

Inlet & Outlet (2)

Rated Flow (3)

Heater

Pre-Filter

After-Filter

NPT (F)/FLG

scfm

Nm3/h

kW

ABP 800

GF 0850 M01

NHT 1000 M1

3"

800

1352

18

ABP 1000

GF 1250 M01

NHT 1000 M1

3"

1000

1690

22

ABP 1200

GF 1250 M01

NHT 1250 M1

3"

1200

2028

27

ABP 1400

GF 1500 M01

NHT 1600 M1

3"

1400

2366

32.5

ABP 1600

NFZ 2500 M01

NHT 1600 M1

4"

1600

2704

37

ABP 2000

NFZ 2500 M01

NFZ 2500 M1HT

4"

2000

3380

45

ABP 2500

NFZ 2500 M01

NFZ 2500 M1HT

4"

2500

4225

52

ABP 3000

NFZ 3500 M01

NFZ 3500 M1HT

6"

3000

5070

64

ABP 3500

NFZ 3500 M01

NFZ 3500 M1HT

6"

3500

5915

78

ABP 4000

NFZ 4000 M01

NFZ 4000 M1HT

6"

4000

6760

90

ABP 5000

NFZ 5000 M01

NFZ 5000 M1HT

6"

5000

8450

110

ABP 6000

NFZ 5000 M01

NFZ 7500 M1HT

6"

6000

10140

120

Specifications

Standard

Optional

Maximum particle size (ISO class) (5)

class 2 (1 micron)

class 1 (0.01 micron)

Maximum water content (ISO class) (5)

class 2 (-40°F/-40°C pdp)

-

Minimum / design / maximum operating pressure range (6)

60 psig / 100 psig / 150 psig

4.1 bar / 6.9 bar / 10.3 bar

58 to 250 psig

4 to 17.2 bar

Minimum / design / maximum ambient temperature (6)

38°F / 100°F/ 120°F

3°C / 38°C  / 49°C

-

Minimum / design / maximum inlet temperature (6)

38°F / 100°F/ 120°F

3°C / 38°C  / 49°C

-

Power supply requirements

460 VAC / 60 Hz

-

(1) all units are flanged, ANSI welded pipe

(2) in compliance with ADF 100 specifications for compressed air dryers: Inlet temperature: 100°F/38°C, ambient temperature: 100°F/38°C, inlet pressure dew point: -40°F/-40°C. For all other conditions refer to the correction factors or contact [email protected]

(3) approx. weight for all models includes desiccant; units 2500 scfm and above desiccant is shipped loose

(4) pre and after filters mounted on dryer as standard

(5) per ISO 8573.1:2010

(6) maximum working pressure for all models is 150 psig. For higher pressures, contact [email protected]

(7) be used as a rough guide only. All applications should be confirmed by nano. Contact nano for sizing assistance

(8) all models are UL/cUL compliant

(9) all models have ASME coded pressure vessels. For other approvals, consult [email protected]

(10) technical specifications subject to change without notice. Direct inquiries to [email protected] or contact 704.897.2182
