Product Documentation

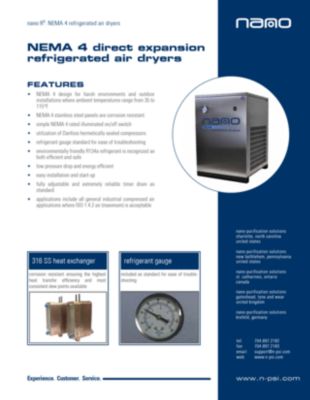

- Brochures

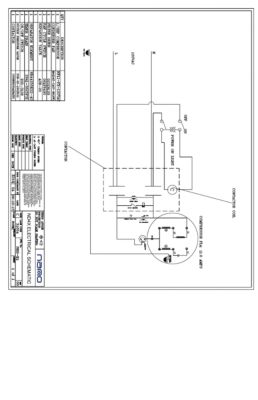

- Electrical Diagrams

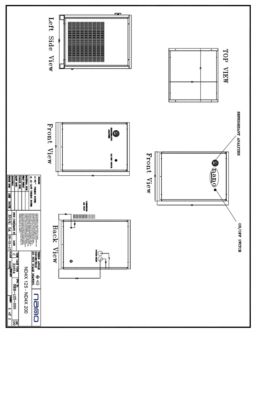

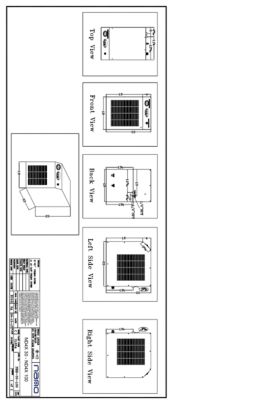

- GA Drawings
- Material Safety Data Sheets

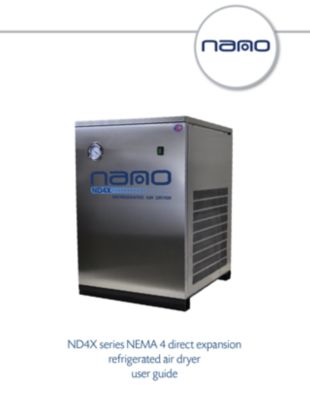

- User Guide
Technical Data by Model
Dryer Model |
Recommended Pre & After Filtration |
Inlet & Outlet |
Rated Flow at 100 psig |
Absorbed Power |
Power Supply (V/Ph/60Hz) |
||
|---|---|---|---|---|---|---|---|
Pre Filter |
After Filter |
NPT |
scfm |
kW |
115/1 |
208/230/1 |
|
NF 0030 M1 |
NF 0030 M01 |
½” |
30 |
0.15 |
• |
||
NF 0050 M1 |
NF 0050 M01 |
½” |
40 |
0.19 |
• |
||
NF 0070 M1 |
NF 0070 M01 |
½” |
60 |
0.25 |
• |
||
NF 0085 M1 |
NF 0085 M01 |
½” |
80 |
0.25 |
• |
||
NF 0280 M1 |
NF 0280 M01 |
1 ¼” |
100 |
0.37 |
• |
||
NF 0280 M1 |
NF 0280 M01 |
1 ¼” |
125 |
0.56 |
• |
||
NF 0280 M1 |
NF 0280 M01 |
1 ¼” |
150 |
0.56 |
• |
||
NF 0290 M1 |
NF 0290 M01 |
1 ½” |
200 |
0.75 |
• |
||
Specifications |
ND4X 30 to ND4X 125 |
ND4X 150 to ND4X 200 |
|---|---|---|
Design operating pressure range |
0 to 250 psig |
0 to 250 psig |
Maximum inlet temperature |
180°F |
120°F |
Maximum ambient temperature |
110°F |
110°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
