The R1 NRC legacy product line of refrigerated compressed air dryers

Legacy Equipment

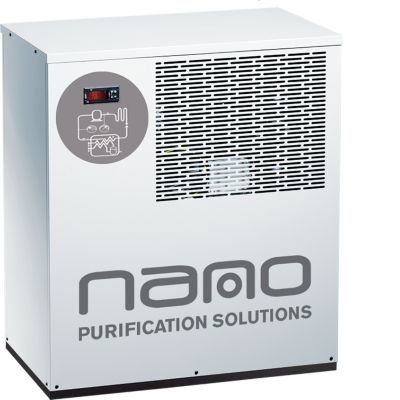

NRC Cycling Refrigerated Dryers

With unique digital controls that automatically managed energy consumption and energy saving condensate drains that automatically adjusted to demand - the NRC cycling dryer saved energy and eliminated seasonal adjustments. It is the ultimate solution to remove moisture from your compressed air system.

Product Documentation

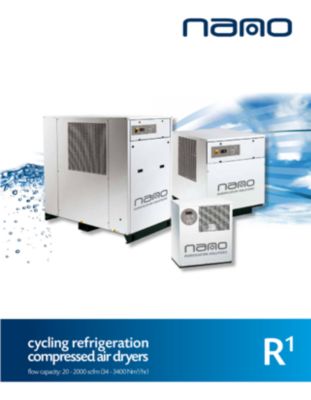

The brochure for our legacy model of refrigerated dryers, the R1 NRC cycling

NRC Cyling Refrigerated Dryers

Product Brochure

Filename
R1-NRC-brochure-legacy-cycling-refrigerated-dryers.pdf
Size
2 MB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View

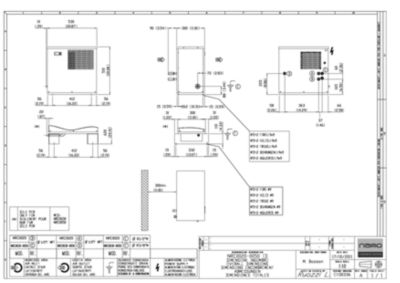

R1 NRC 0020-0050 general arrangement drawing

NRC 0020-0050 Cyling Refrigerated Dryers

General Arrangement Drawing

Filename
R1-NRC-0020-0050-ga-general-arrangement-drawing-legacy-cycling-refrigerated-dryers.pdf
Size
72 KB
Format
pdf
View

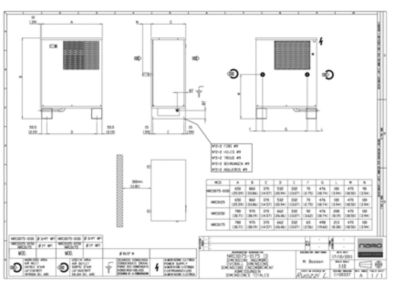

R1 NRC 0075-0175 general arrangement drawing

NRC 0075-0175 Cycling Refrigerated Dryers

General Arrangement Drawing

Filename
R1-NRC-0075-0175-ga-general-arrangement-drawing-legacy-cycling-refrigerated-dryers.pdf
Size
90 KB
Format
pdf
View

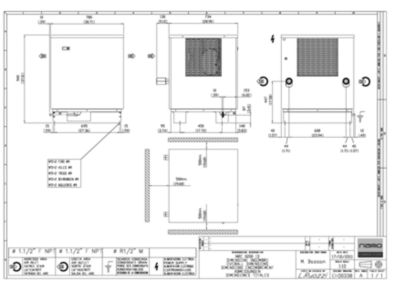

R1 NRC 0200 general arrangement drawing

NRC 0200 Cycling Refrigerated Dryers

General Arrangement Drawing

Filename
R1-NRC-0200-ga-general-arrangement-drawing-legacy-cycling-refrigerated-dryers.pdf
Size
106 KB
Format
pdf
View
R1 NRC 0250-0800 general arrangement drawing

NRC 0250-0800 Cycling Refrigerated Dryers

General Arrangement Drawing

Filename
R1-NRC-0250-0800-ga-general-arrangement-drawing-legacy-cycling-refrigerated-dryers.pdf
Size
133 KB
Format
pdf
View

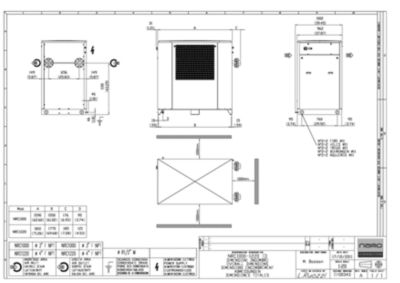

R1 NRC 1000-1220 general arrangement drawing

NRC 1000-1220 Cycling Refrigerated Dryers

General Arrangement Drawing

Filename
R1-NRC-1000-1220-ga-general-arrangement-drawing-legacy-cycling-refrigerated-dryers.pdf
Size
121 KB
Format
pdf
View
R1 NRC 1600-2000 general arrangement drawing

NRC 1600-2000 Cycling Refrigerated Dryers

General Arrangement Drawing

Filename
R1-NRC-1600-2000-ga-general-arrangement-drawing-legacy-cycling-refrigerated-dryers.pdf
Size
56 KB
Format
pdf
View

NRC Cycling Refrigerated Dryers - R134a

Material Safety Data Sheet

Filename
R4-NDX-msds-direct-expansion-refrigerated-dryers-R134a.pdf
Size
307 KB
Format
pdf
View

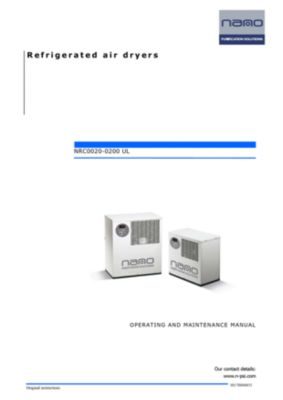

The general arrangement drawing for the R1 NRC models 0020 to 0200

NRC 0020-0200 Cycling Refrigerated Dryers

User Guide

Filename
R1-NRC-0020-0200-service-manual-user-guide-cycling-refrigerated-dryers.pdf
Size
720 KB
Format
pdf
View

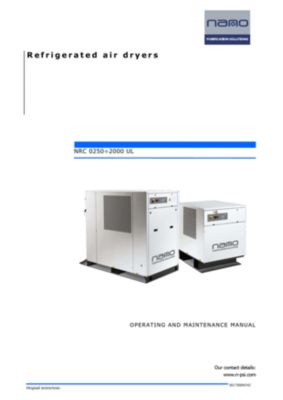

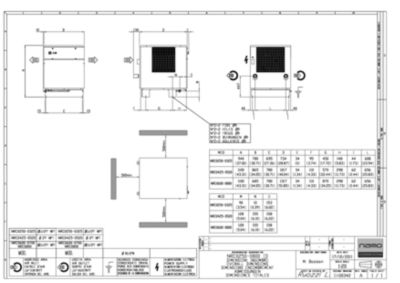

The general arrangement drawing for the R1 NRC models 0250 to 2000

NRC 0250-2000 Cycling Refrigerated Dryers

User Guide

Filename
R1-NRC-0250-2000-service-manual-user-guide-cycling-refrigerated-dryers.pdf
Size
1 MB
Format
pdf
View

Specifications of these models

Dryer Model

Inlet & Outet

Rated Flow at 100 psig

Absorbed Power

Power Supply (V/Ph/60Hz)

NPT/Flg

scfm

kW

115/1

230/1

230/3

460/3

575/3

NRC 0020

½”

20

0.26



NRC 0030

½”

30

0.26

°



NRC 0050

½”

50

0.36

°



NRC 0075

½”

75

0.50

°



NRC 0100

¾”

100

0.64



NRC 0125

1”

125

0.97



NRC 0150

1”

150

0.92



NRC 0175

1”

175

1.11



NRC 0200

1 ½”

200

1.30



°

NRC 0250

1 ½”

250

1.32



°

NRC 0325

1 ½”

325

2.07



°

°

NRC 0425

2”

425

2.82



°

NRC 0520

2”

520

3.28



°

°

NRC 0600

2 ½”

600

3.49



°

°

NRC 0700

2 ½”

700

3.64



°

°

NRC 0800

2 ½”

800

4.28



°

°

NRC 1000

3” Flg

1000

5.09



°

°

NRC 1220

4” Flg

1220

6.48



°

°

NRC 1600

4” Flg

1600

8.55



°

°

NRC 2000

4” Flg

2000

10.75



°

°


Specifications

NRC 0020 to 0325

NRC 0425 to 1220

NRC 1600 to 2000

Design operating pressure range

0 to 232 psig 0 to 232 psig 0 to 232 psig

Design inlet air temperature range

41 to 158°F 41 to 158°F 41 to 149°F

Design ambient temperature range

41 to 115°F 41 to 115°F 41 to 110°F

Condenser cooling options

air only

air (standard) or water (optional)

air (standard) or water (optional)

Refrigerant type

R134a

R134a

R134a

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
