Designed to remove oil vapors to 0.003 ppm.
Key Specs:
Flow Rate
30 to 5000 scfm
Connection
1½” NPT to " Flg
Air Quality
ISO 8573.1:2010 Class -.-.1
Product Documentation
- Brochures

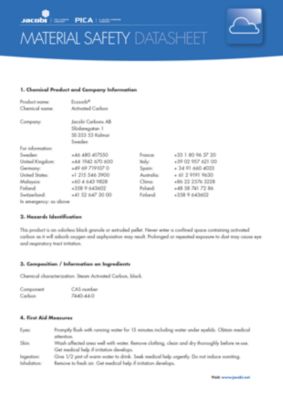

- Material Safety Data Sheets
- User Guides
Features
Large amount of loose activated carbon for use in adsorbing oil, hydrocarbon vapors and odor.
Built-in residual oil indicator to determine life of the activated carbon material.
Specifications of our models
Model |
Inlet & Outlet |
Rated Flow at 100 psig |
---|---|---|
NPT/Flg |
scfm |
|
AKC-30 | ½” | 30 |
AKC-40 | ½” | 40 |
AKC-50 | ½” | 50 |
AKC-60 | ¾” | 60 |
AKC-80 | ¾” | 80 |
AKC-100 | 1" | 100 |
AKC-150 | 1" | 150 |
AKC-200 | 1 ½” | 200 |
AKC-250 | 1 ½” | 250 |
AKC-300 | 1 ½” | 300 |
AKC-350 | 1 ½” | 350 |
AKC-450 | 2" | 450 |
AKC-500 | 2" | 500 |
AKC-600 | 2" | 600 |
AKC-750 | 3" Flg | 750 |
AKC-1000 | 3" Flg | 1000 |
AKC-1250 | 3" Flg | 1250 |
AKC-1500 | 4" Flg | 1500 |
AKC-2000 | 4" Flg | 2000 |
AKC-2500 | 6" Flg | 2500 |
AKC-3000 | 6" Flg | 3000 |
AKC-3500 | 6" Flg | 3500 |
AKC-4000 | 6" Flg | 4000 |
AKC-4500 | 6" Flg | 4500 |
AKC-5000 | 6" Flg | 5000 |
Specifications |
|
---|---|
Maximum working pressure |
232 psig |
Recommended operating temperature range |
36 to 95°F |
Maximum operating temperature |
122°F |
Estimated cartridge life |
12 months |
Inlet Air Quality Requirements |
|
---|---|
Maximum particulate size |
0.01 micron |
Maximum pressure dew point |
-40°F |
Maximum oil content |
0.05 ppm |
Performance |
|
---|---|
Maximum outlet air oil content (@95°F) |
0.003 ppm |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
