A nano V1 NVR oil vapor removal system

Compressed Air Dryer Add-Ons

Oil Vapor Removal Systems

Are you tired of dealing with unpleasant odors and oil vapors in your compressed air systems? Look no further than the nano NVR series of oil vapor removal adsorbers. Our innovative and compact design is much smaller than traditional activated carbon towers, making it the perfect solution for businesses that want to save on space. Not only that, but our unique design ensures a low differential pressure, making our adsorbers highly efficient and economical to operate. You can install our units in your compressor room or at the point of use, which will protect both your personnel and critical applications. Choose the nano NVR series to experience the ultimate in oil vapor removal.

Key Specs:

Flow Rate

40 to 1500 scfm

Connection

½” to 2 ½” NPT

Air Quality

ISO 8573.1:2010 Class -.-.1

Product Documentation

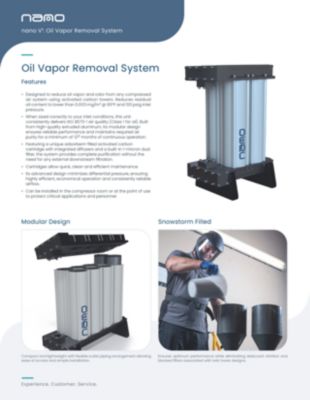

the brochure for the NVR oil vapor removal product

NVR Oil Vapor Removal Systems

Product Brochure

Filename
EN-V1-NVR-brochure-oil-vapor-removal-dryer.pdf
Size
609 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View

NVR Oil Vapor Removal Systems Eurocarb PHO 6x12 Activated Carbon

Material Safety Data Sheet

Filename
EN-V1-NVR-MSDS-oil-vapor-removal-Eurocarb-PHO-6x12-Activated-Carbon-Rev-1.1.pdf
Size
232 KB
Format
pdf
View
nano equipment user guide

NVR Oil Vapor Removal Systems

User Guide

Filename
V1-NVR-0185-1500-user-guide-manual-oil-vapor-removal-system.pdf
Size
1 MB
Format
pdf
View

Features

These products are manufactured from high quality extruded aluminum

Unique adsorbent filled activated carbon cartridge complete with integral diffusers and built-in 1 micron dust filter as standard eliminating the need for external downstream filtration



Compact and lightweight with flexible outlet piping arrangement allowing ease of access and simple installation

Specifications of our models

Model

Service Kit

Inlet & Outlet

Rated Flow at 100 psig

Part No.

NPT

scfm

NVR 0040

NVR SK 040

½”

40

NVR 0185

NVR SK 185

1”

185

NVR 0370

NVR SK 370

1”

370

NVR 0750

NVR SK 370

2 ½”

750

NVR 1100

NVR SK 370

2 ½”

1100

NVR 1500

NVR SK 370

2 ½”

1500



Specifications

Maximum working pressure

232 psig

Recommended operating temperature range

36 to 95°F

Maximum operating temperature

122°F

Estimated cartridge life

12 months


Inlet Air Quality Requirements

Maximum particulate size

0.01 micron

Maximum pressure dew point

-40°F

Maximum oil content

0.05 ppm



Performance

Maximum outlet air oil content (@95°F)

0.003 ppm

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
