D series of the nano desiccant dryers standing together

Desiccant Compressed Air Dryers

Modular Desiccant Dryers

Designed for use in the compressor room, at the point of application or integrated into your original equipment, nano high purity desiccant compressed air dryers are an effective solution to the problems caused by contaminated compressed air. Perfect for sensitive processes or instrumentation, these -40°F/-40°C pressure dew point dryers have a modular, space-saving design that is easy to install & ready for use in spaces too small for a traditional twin tower dryer design.  Standard pre-filter and outlet filtration, low pressure drop and consistent dew point performance are just a few of the many benefits of the modular dryer system.

Key Specs:

Flow Rate

3 scfm and up

Connection

 ⅜” PTC to 2 1/2 ” NPT(F)

Air Quality

ISO 8573.1:2010 Class 1.2.2

Product Documentation

The latest brochure for the D series of modular desiccant dryers

D1/D2/D3 NDL - Brochure

Filename
EN-D1-D2-D3-NDL-brochure-high-purity-desiccant-dryers-2023-19.pdf
Size
6 MB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
equipment user guide product manual

D1 NDL 010-050 - User Guide

Filename
D1-NDL-010-050-C-user-guide-manual-heatless-desiccant-air-dryer.pdf
Size
2 MB
Format
application/pdf
View
equipment user guide product manual

D2 NDL 060-130 - User Guide

Filename
D2-NDL-60-130-user-guide-manual-desiccant-dryer.pdf
Size
2 MB
Format
application/pdf
View
equipment user guide product manual

D3 NDL 2110-6130 - User Guide

Filename
D3-NDL-2110-6130-user-guide-manual-heatless-desiccant-dryer.pdf
Size
2 MB
Format
application/pdf
View
D1 NDL - Service Manual

D1 NDL - Service Manual

Filename
D1-NDL-service-manual-maintenance-modular-desiccant-dryers.pdf
Size
1 MB
Format
application/pdf
View
D2.2 NDL - Service Manual

D2.2 NDL - Service Manual

Filename
D2.2-NDL-service-manual-maintenance-modular-desiccant-dyers.pdf
Size
2 MB
Format
application/pdf
View
The manual for the D3 modular desiccant dryer standard controller

D3 Standard Controller

Filename
D3-NDL-standard-controller-service-manual-maintanence-modular-dessicant-dryer-controller.pdf
Size
5 MB
Format
application/pdf
View
The manual for the D3 modular desiccant dryer advanced controller

D3 Advanced Controller

Filename
D3-NDL-advanced-controller-service-manual-maintanence-modular-dessicant-dryer-advanced-controller.pdf
Size
6 MB
Format
application/pdf
View
A safety data sheet for the nano-brand desiccant material used in the NDL compressed air modular dryers

NDL Desiccant - Safety Data Sheet

Filename
NDL-desiccant-data-sheet-AxSorb-UK.pdf
Size
132 KB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Application Worksheet

Filename
EN-D-series-worksheet-desiccant-dryers.pdf
Size
212 KB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Technical Paper

Filename
EN-D-Series-technical-paper-desiccant-dryers.pdf
Size
450 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NDL 0010-0020

Filename
EC-Declaration-of-Conformity-2014-68-EU-COC-NDL-0010-0020-NDC-015-140.pdf
Size
123 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NDL 0030-0050

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-030-050-NBA-030-050-NDC-300-600.pdf
Size
124 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NDL 0060-0130

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-060-130-NDC-900-1200-NBA-060-120.pdf
Size
124 KB
Format
application/pdf
View
ga general arrangement drawing

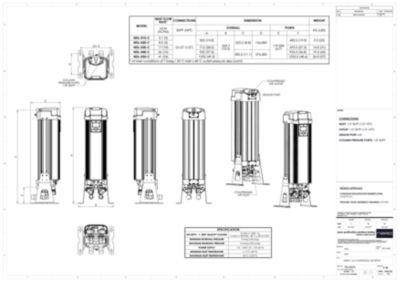

D1 NDL 0010-0050 - GA Drawing

Filename
D1-NDL-010-050-C-ga-general-arrangement-drawing-CRN-modular-desiccant-dryers.pdf
Size
867 KB
Format
application/pdf
View
ga general arrangement drawing

D2 NDL 0060-0130 - GA Drawing

Filename
D2-NDL-060-130-ga-general-arrangement-drawing-desiccant-dryer.pdf
Size
2 MB
Format
application/pdf
View
ga general arrangement drawing

D3 NDL 2110-6130 - GA Drawing

Filename
D3-NDL-2110-6130-ga-general-arrangement-drawing-desiccant-dryer.pdf
Size
5 MB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

D1 NDL 010-050 - Electrical Diagram

Filename
D1-NDL-010-050-electrical-wiring-schematics-desiccant-dryer.pdf
Size
477 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

D2 NDL 060-130 - Electrical Diagram

Filename
D2-NDL-010-050-electrical-wiring-schematics-desiccant-dryer.pdf
Size
275 KB
Format
application/pdf
View
D2/D3 NDL - Electrical Diagram (Premium Controller)

D2/D3 NDL - Premium Controller

Filename
D2-D3-NDL-electrical-wiring-schematics-premium-controller-desiccant-dryer.pdf
Size
305 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

D3 NDL 2110-6130 - Electrical Diagram

Filename
D3-NDL-2110-6130-electrical-wiring-schematics-desiccant-dryer.pdf
Size
275 KB
Format
application/pdf
View

Features

High performance valves designed for durability, ease of maintenance and long service life

Patented, high density snowstorm filled cartridges (models NDL 010 to NDL 130) with integrated after filter (all models) can be serviced in less than 15 minutes and provide maximum adsorption capacity

Energy Saving Dew Point Control, -94°F/-70°C pressure dew point, advanced PLC controller available (models NDL 2110 to NDL 6130)

Specifications of our models

Dryer Model

Pre-Filter

After-Filter

Inlet & Outlet

Rated Flow (3)



NPT (F)

scfm

Nm3/h

D1

NDL 010 GF

GF 0006 M01

integrated

3/8” (2)

3

5.1

NDL 020 GF

GF 0006 M01

integrated

3/8” (2)

5

8.5

NDL 030 GF

GF 0015 M01

integrated

3/8” (2)

10

17

NDL 040 GF

GF 0015 M01

integrated

3/8” (2)

15

25.5

NDL 050 GF

GF 0025 M01

integrated

½” (2)

20

34

D2

NDL 060 GF

GF 0105 M01

integrated

1”

34

58

NDL 070 GF

GF 0105 M01

integrated

1”

41

70

NDL 080 GF

GF 0105 M01

integrated

1”

53

90

NDL 090 GF

GF 0105 M01

integrated

1”

66

112

NDL 100 GF

GF 0105 M01

integrated

1”

88

150

NDL 110 GF

GF 0125 M01

integrated

1”

106

180

NDL 120 GF

GF 0175 M01

integrated

1”

132

224

NDL 130 GF

GF 0175 M01

integrated

1”

177

301

D3

NDL 2110 GF

GF 0450 M01

integrated

2”

212

360

NDL 2120 GF

GF 0450 M01

integrated

2”

276

469

NDL 2130 GF

GF 0450 M01

integrated

2”

400

680

NDL 3130 GF

GF 0700 M01

integrated

2”

560

951

NDL 4130 GF

GF 0850 M01

integrated

2 ½”

750

1274

NDL 6120 GF

GF 0850 M01

integrated

2 ½”

828

1407

NDL 6130 GF

GF 1250 M01

integrated

2 ½” (3)

1110

1886

Specifications

D1/ D2

D3



Standard

Optional

Standard

Optional

Maximum particle size (ISO class) (4)

class 2 (1 micron)

class 1 (0.01 micron) (5)

class 2 (1 micron)

class 1 (0.01 micron) (5)

Maximum water content (ISO class) (4)

class 1 (-94°F/-70°C pdp)

class 2 (-40°F/-40°C)

class 2 (-40°F/-40°C pdp)

class 1 (-94°F/-70°C)

Minimum operating pressure

58 psig /4 bar

-

58 psig / 4 bar

-

Maximum operating pressure

232 psig / 16 bar

-

145 psig / 10 bar

232 psig (consult factory) (6)

Recommended operating temp range

35 to 85°F / 2 to 29°C

-

35 to 100°F / 2 to 38°C

-

Design operating temperature range

35 to 100°F / 2 to 38°C

-

35 to 122°F / 2 to 502 to 38°C

-

Power supply requirements

100 to 240 VAC / 50 or 60 Hz

pneumatic or 24 V DC

100 to 240 VAC / 50 or 60 Hz

pneumatic or 24 V DC

(1) dryer includes a separate M1 & M01 grade pre filters with timer drains (shipped loose) and a built in 1 micron after filter

(2) NDL 010 to 050 have push to connect fittings on the inlet and outlet. All other models have NPT(F) threaded connections

(3) at an inlet conditions of 100 psig and 85°F and a -94°F outlet pressure dew point. For all other conditions refer to the correction factors above

(4) per ISO 8573.1:2010

(5) with separate M01 grade after filter

(6) to be used as a rough guide only. All applications should be confirmed by nano.

(7) once the unit is online it has to run continuously to achieve and maintain the low dew point

(8) standard scope should be 1 micron and 0.01 micron pre filters with timed solenoid drains
