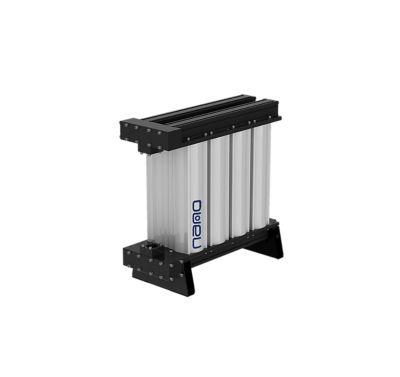

A nano V1 NVR oil vapor removal system

Compressed Air Dryer Add-Ons

Oil Vapour Removal Systems

The nano NVR range of oil vapour removal adsorbers has been designed to reduce oil vapour and odor from any compressed air system using a compact, modular design with a smaller footprint than traditional activated carbon towers.  The unique design  ensures a low differential pressure for highly efficient and economical operation. Units can be installed in the compressor room or at the point of use to protect critical applications and personnel.

Key Specs:

Flow Rate

40 to 1500 scfm

Connection

| ½” to 2 ½” BSPP

Air Quality

ISO 8573.1:2010 Class -.-.1

Product Documentation

UK NVR oil vapor removal brochure

NVR - Brochure

Filename
UK-V1-NVR-brochure-oil-vapour-removal.pdf
Size
2 MB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
nano equipment user guide

V1 NVR - User Guide

Filename
V1-NVR-0185-1500-user-guide-manual-oil-vapor-removal-system.pdf
Size
1 MB
Format
application/pdf
View

Features

These products are manufactured from high quality extruded aluminium

Unique adsorbent filled activated carbon cartridge complete with integral diffusers and built-in 1 micron dust filter as standard eliminating the need for external downstream filtration



Compact and lightweight with flexible outlet piping arrangement allowing ease of access and simple installation

Specifications of our models

Model

Service Kit (2)

Inlet & Outlet

Rated

Flow (2)

Part No.

BSPP

scfm

Nm3/h

NVR 0040

NVR SK 040

½”

40

68

NVR 0185

NVR SK 185

1”

185

315

NVR 0370

NVR SK 370

1”

370

630

NVR 0750

NVR SK 370

2 ½”

750

1275

NVR 1100

NVR SK 370

2 ½”

1100

1870

NVR 1500

NVR SK 370

2 ½”

1500

2550

Specifications

Maximum working pressure

16 barg

Recommended operating temperature range

1.5 to 35°C

Maximum operating temperature

50°C

Estimated cartridge life

6000 hrs (3) (or 12 months)

Inlet Air Quality Requirements (4)

Maximum particulate size

0.01 micron

Maximum pressure dew point

-40°C pdp

Maximum oil content

0.05 mg/m3



Performance

Maximum outlet air oil content (@35°C)

0.003 mg/m3

(ppm)

(1) at inlet conditions of 7 barg and 35°C, and 35°C ambient temperature. For all other operating conditions contact us for sizing assistance

(2) includes purification cartridges (including integral inlet diffusers and outlet particulate filters) and all o-rings

(3) provided as an estimate only. Cartridges must be replaced as required to maintain adequate air quality in accordance with all applicable codes and regulations

(4) if the air doesn’t meet these conditions, contact us to confirm the additional treatment required

(5) to be used as a rough guide only. All applications should be confirmed by nano. Contact us
