Breathing Air

Modular Breathing Air Purification

In our industry, there is perhaps no more critical use of compressed air than for breathing.  While many breathing air applications may require only the removal of particulates, oil, odor and taste, others may also require the removal of hazardous gasses  such as carbon dioxide (CO2) and carbon monoxide (CO). nano NBA breathing air systems are the optimum solution if there is a potential for high levels of CO and CO2 in the air as it is imperative they are reduced to safe levels for breathing.

Key Specs:

Flow Rate

6 to 16 barg

Connections

 3/8” NPT(F) to 2 ½” NPT(F)

Flow Rate

8 to 648 scfm

Product Documentation

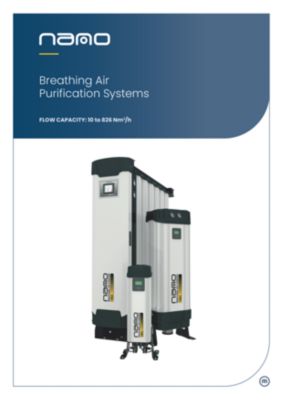

B1 BAP/BAC/NBA - Brochure

B1 BAP/BAC/NBA - Brochure

Filename
UK-B1-BAP-BAC-NBA-brochure-breathing-air-products.pdf
Size
724 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
A user guide for the B1 models of breathing air purifiers

B1 NBA 30-70 - User Guide

Filename
B1-NBA-0030-0060-user-guide-manual-breathing-air-system.pdf
Size
2 MB
Format
application/pdf
View
The user guide for B2 models of breathing air purifiers

B2 NBA 70-120 - User Guide

Filename
B2-NBA-0070-0120-user-guide-manual-breathing-air-system.pdf
Size
2 MB
Format
application/pdf
View
B1-NBA-070-120-service-manual-maintenance-breathing-air-purifier-unit

B1 NBA 0070-0120 - Service Manual

Filename
B1-NBA-070-120-service-manual-maintenance-breathing-air-purifier-unit.pdf
Size
1 MB
Format
application/pdf
View
equipment worksheet product technical paper

B-Series Application Worksheet

Filename
EN-B-Series-worksheet-breathing-air-systems.pdf
Size
285 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NBA 0030-0050

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-030-050-NBA-030-050-NDC-300-600.pdf
Size
124 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NBA 0060-0120

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-060-130-NDC-900-1200-NBA-060-120.pdf
Size
124 KB
Format
application/pdf
View
FIL - Certificate of Compliance

FIL - Certificate of Compliance

Filename
FIL-certificate-filtration-and-particle-science-CC1710-01-00-FIL-2017.pdf
Size
2 MB
Format
application/pdf
View

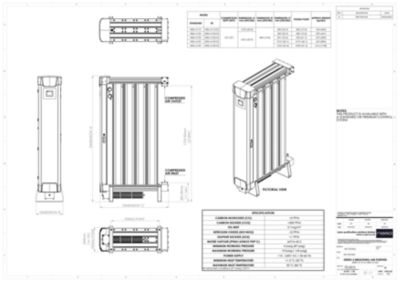

ga general arrangement drawing

B1 NBA 020-050 - GA Drawing

Filename
B1-NBA-020-050-ga-general-arrangement-drawing-breathing-air.pdf
Size
363 KB
Format
application/pdf
View
ga general arrangement drawing

B1 NBA 030 - GA Drawing

Filename
B1-NBA-030-ga-general-arrangement-breathing-air.pdf
Size
206 KB
Format
application/pdf
View
ga general arrangement drawing

B1 NBA 070-130 - GA Drawing

Filename
B1-NBA-070-130-ga-general-arrangement-breathing-air.pdf
Size
1 MB
Format
application/pdf
View
ga general arrangement drawing

B1 NBA 2100-6120 - GA Drawing

Filename
B1-NBA-2100-6120-ga-general-arrangement-breathing-air.pdf
Size
675 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

B1 NBA 030-050 - Electrical Diagram

Filename
B1-NBA-030-050-electrical-wiring-schematics-breathing-air.pdf
Size
73 KB
Format
application/pdf
View

Features

Wide range of flow rates for multiple user

With multiple connections for multiple users, the system contains 1 and 0.01 micron high-efficiency filter with drains, a 4-layer mixed bed to remove CO and scrub CO2 and an integral 1 micron particulate after filter

Energy saving dew point control option provides the ultimate in energy and power savings

Specifications of our models

Model

Included Inlet Filtration

Inlet & Outlet

Inlet Flow

Outlet Flow

Part no.

BSPP

scfm

Nm3/h

scfm

Nm3/h

NBA 030

GFNB 0015 M1/M01

⅜” (1)

8

13

6

10

NBA 040

GFNB 0015 M1/M01

⅜” (1)

12

20

9

15

NBA 050

GFNB 0025 M1/M01

⅜” (1)

16

25

11

17

NBA 070

GFNB 0050 M1/M01

1”

35

59

26

44

NBA 090

GFNB 0070 M1/M01

1”

55

93

41

70

NBA 110

GFNB 0105 M1/M01

1”

87

148

65

110

NBA 120

GFNB 0125 M1/M01

1”

108

183

81

138

NBA 2110

GFNB 0280 M1/M01

2”

172

292

139

219

NBA 2120

GFNB 0280 M1/M01

2”

216

367

162

275

NBA 3120

GFNB 0325 M1/M01

2”

324

550

243

413

NBA 4120

GFNB 0450 M1/M01

2”

432

734

324

550

NBA 6120

GFNB 0700 M1/M01

2”

648

1101

486

826

Specifications

NBA 030 to 120

NBA 2110 to 6120

Operating pressure range

6 to 16 barg

6 to 10 barg

Recommended operating temp range

1.5 to 30

1.5 to 30

Recommended air inlet quality

Class 2

Class 2

Design operating temperature range

1.5 to 50

1.5 to 50

Power supply requirements

85 to 264V AC, 50 or 60Hz

100 to 240 VAC, 50 or 60Hz

Power rating

25W (D1) 35W (D2/D3)

38W (D3)

Performance (2)

Maximum water content

-31C (pdp)

-31 (pdp)

Maximum oil content

0.01 mg/m3

0.01 mg/m3

Odour + taste

none

none

O2 range

21% + 1%

21% + 1%

Maximum CO content

< 5 ppm

< 5 ppm

Maximum CO2 content

< 500 ppm

< 500 ppm

(1) PTC = push to connect fittings

(2) air quality to BS EN 12021.2014

(3) to be used as a rough guide only. All applications should be confirmed by nano. Contact nano for more
