Breathing Air

Breathing Air Cases

In our industry, there is perhaps no more critical use of compressed air than for breathing. The nano B1 BAC portable breathing air purifier case is the solution for one or multiple users who need a robust, go anywhere breathing air system.

Key Specs:

Flow Rate

1.5 to 30°C Operating Range

Pressure Range

1 to 10 barg

Portability

under 18 kg

Product Documentation

B1 BAP/BAC/NBA - Brochure

B1 BAP/BAC/NBA - Brochure

Filename
UK-B1-BAP-BAC-NBA-brochure-breathing-air-products.pdf
Size
724 KB
Format
application/pdf
View
equipment user guide product manual

B1 BAC - User Guide

Filename
B1-BAC-50-100-user-guide-manual-breathing-air-system.pdf
Size
2 MB
Format
application/pdf
View
equipment worksheet product technical paper

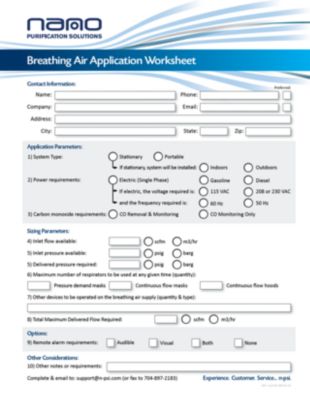

B-Series Application Worksheet

Filename
EN-B-Series-worksheet-breathing-air-systems.pdf
Size
285 KB
Format
application/pdf
View

Features

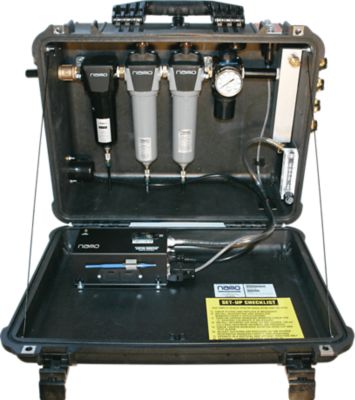

Made out of a portable , compact, and water resistant case

Comes with 4 outlet connections for multiple users, the case contains a water separator, 0.01 micron coalescing filter with drain and activated carbon adsorber to remove moisture, oil aerosols odors and taste to 0.003 ppm

Integrated battery operated CO monitor included as standard

Specifications of our models

Model

Inlet Connection

Outlet Connection (s)

Inlet Flow

Outlet Flow

Size

Type

Qty

Size

Type

Qty

scfm

Nm3/h

scfm

Nm3/h

BAC 035 CP N

½”

BSPP

1

⅜”

BSPP

4

35

60

35

60

BAC 035 CP H

½”

BSPP

1

¼”

Hansen (1)

4

35

60

35

60

BAC 035 CP S

½”

BSPP

1

¼”

Schrader (1)

4

35

60

35

60

Specifications

BAC Cases

Operating pressure range

1 to 10 barg

Recommended operating temperature range

1.5 to 30°C

Recommended air inlet quality

-

(1) female style coupling

(2) PTC = push to connect fittings

(3) contact us for higher pressures or flows
