Condensate Management

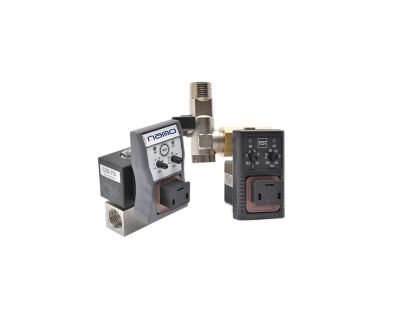

Timed Solenoid Drains

At nano, we provide a wide range of condensate drains to support virtually any industrial compressed air or gas application. Most efficient in low flow applications, our full range of reliable and cost-effective timer drains protect your downstream equipment by effectively removing harmful liquid condensate such as water, oil and other liquids.

Key Specs:

Flow Rate

Flows to fit any system

Connection

¼”  to ½” BSPP

Maximum Pressure

16 to 414 barg

Product Documentation

nano-purification solutions product brochure with equipment details

ND Brochure - Condensate Drains

Filename
EN-ND-brochure-condensate drains.pdf
Size
243 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View

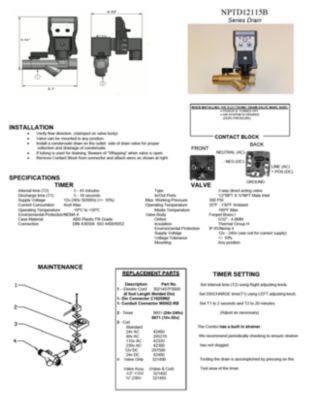

A guide on installation and maintenance for the NPTD range of condensate drain products

NPTD-12115-B - Operating & Maintenance Guide

Filename
NPTD-12115-B-operating-maintenance-manual-guide-condensate-drain.pdf
Size
141 KB
Format
application/pdf
View

Features

Pressures available up to 6000 psig, multiple voltages, brass and stainless steel material options

Duration and frequency can be adjusted to discharge condensate according to your compressed air system requirements

6 ft power cord included as standard

Specifications of our models

Drain Model

Inlet

Outlet

Pressure Rating

Supply Voltage

BSPP

BSPP

barg

1ph

NPTCD Premium Timed Combination Solenoid (Brass)

NPTCD 12 115 B

½” (m)

½” (f)

16

115 V

NPTCD 12 230 B

½” (m)

½” (f)

16

230 V

NPTCD 12 24A B

½” (m)

½” (f)

16

24 VAC

NPTCD 12 24D B

½” (m)

½” (f)

16

24 VDC

NPTD Premium Timed Solenoid (Brass)

NPTD 12 115B

½” (m)

½” (f)

16

115V

NPTD 12 230B

½” (m)

½” (f)

16

230V

NPTD 12 24A B

½” (m)

½” (f)

16

24 VAC

NPTD 12 24D B

½” (m)

½” (f)

16

24 VDC

NPTD Premium Timed Solenoid (Stainless Steel)

NPTD 14 115 S

¼” (f)

¼” (f)

16

115V

NPTD 14 230 S

¼” (f)

¼” (f)

16

230V

NPTD 38 115 S

3/8” (f)

3/8” (f)

16

115V

NPTD 38 230 S

3/8” (f)

3/8” (f)

16

230V

NPTD 12 115 S

½” (f)

½” (f)

16

115V

NPTD 12 230 S

½” (f)

½” (f)

16

230V

NHPTD High Pressure Timed Solenoid (Brass)

NHPTD 14 115 40 B

¼” (f)

¼” (f)

40

115V

NHPTD 14 230 40 B

¼” (f)

¼” (f)

40

230V

NHPTD 12 115 40 B

½” (f)

½” (f)

40

115V

NHPTD 12 230 40 B

½” (f)

½” (f)

40

230V

NHPTD 14 115 80 B

¼” (f)

¼” (f)

80

115V

NHPTD 14 230 80 B

¼” (f)

¼” (f)

80

230V

NHPTD 12 115 80 B

½” (f)

½” (f)

80

115V

NHPTD 12 230 80 B

½” (f)

½” (f)

80

230V

NHPTD 14 115 250 B

¼” (f)

¼” (f)

250

115V

NHPTD 14 230 250B

¼” (f)

¼” (f)

250

230V

NPTD High Pressure Timed Solenoid (Stainless Steel)

NPTD 14 115 S

¼” (f)

¼” (f)

16

115V

NPTD 14 230 S

¼” (f)

¼” (f)

16

115V

NPTD 38 115 S

½” (f)

½” (f)

16

115V

NPTD 38 230 S

½” (f)

½” (f)

16

115V

NPTD 12 115 S

¼” (f)

¼” (f)

16

115V

NPTD 12 230 S

½” (f)

½” (f)

16

115V

(1) For additional voltage options contact nano for further details

(2) 250 barg drains are stainless steel
