The nano range of GFNB compressed air and gas filters easily achieves clean, and If you're looking to achieve clean and oil-free compressed air and gas, look no further than the GFNB compressed air and gas filters in the nano range. Our filters have been rigorously tested and validated per ISO 12500-1 and ISO 8573.1:2010, so you can trust that they will deliver top-notch performance. We manufacture our filters using only the highest-quality materials to provide you with optimal efficiency and energy savings. Choose our filters and experience the benefits of superior performance and reduced energy usage.

Key specs:

Flow Rate

10 to 2550 Nm3/h

Connection

⅛” to 3” BSPP

Filtration

1 & 0.01 micron & AC

Product Documentation

The UK model of the performance validated compressed air and gas filters brochure

GFNB Validated Performance Compressed Air & Gas Filters

Product Brochure

Filename
UK-F1.1-GFNB-brochure-performance-validated-filters-v2.pdf
Size
664 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View
nano-purification solutions product brochure with equipment details

Safe Quality Food (SQF) Standards Brochure

Support Brochure

Filename
EN-SQF-brochure-safe-quality-food-air-quality-standard.pdf
Size
848 KB
Format
pdf
View
ga general arrangement drawing

GFN 0006 to 0015 Validated Performance Compressed Air & Gas Filters

General Arrangement Drawing

Filename
F1.1-GF-0006-0015-ga-general-arrangement-drawing-performance-validated-filters.pdf
Size
141 KB
Format
pdf
View
ga general arrangement drawing

GFN 0025 to 0050 Validated Performance Compressed Air & Gas Filters

General Arrangement Drawing

Filename
F1.1-GF-0025-0050-ga-general-arrangement-drawing-performance-validated-filters.pdf
Size
181 KB
Format
pdf
View
ga general arrangement drawing

GFN 0070 to 0125 Validated Performance Compressed Air & Gas Filters

General Arrangement Drawing

Filename
F1.1-GF-0070-0125-ga-general-arrangement-drawing-performance-validated-filters.pdf
Size
180 KB
Format
pdf
View
ga general arrangement drawing

GFN 0280 to 0325 Validated Performance Compressed Air & Gas Filters

General Arrangement Drawing

Filename
F1.1-GF-0280-0325-ga-general-arrangement-drawing-performance-validated-filters.pdf
Size
172 KB
Format
pdf
View
ga general arrangement drawing

GFN 0450 to 0700 Validated Performance Compressed Air & Gas Filters

General Arrangement Drawing

Filename
F1.1-GF-0450-0700-ga-general-arrangement-drawing-performance-validated-filters.pdf
Size
210 KB
Format
pdf
View
ga general arrangement drawing

GFN 0850 to 1500 Validated Performance Compressed Air & Gas Filters

General Arrangement Drawing

Filename
F1.1-GF-0850-1500-ga-general-arrangement-drawing-performance-validated-filters.pdf
Size
175 KB
Format
pdf
View
GF GFN M1 M01 AC M5 compressed air element material safety data sheet MSDS

GFN Validated Performance Compressed Air & Gas Filter Elements

Material Safety Data Sheet

Filename
nano-GF-GFN-M1-M01-AC-M5-compressed-air-element-material-safety-data-sheet-MSDS.pdf
Size
220 KB
Format
pdf
View

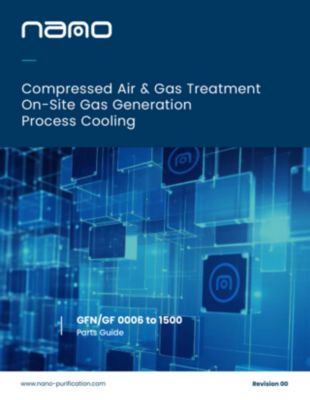

GFN Validated Performance Compressed Air & Gas Filters

Spare Parts Guide

Filename
en-us-F1.1-GFN-spare-parts-guide-compressed-air-filters-ver-000.pdf
Size
823 KB
Format
pdf
View
EN-GF-Line-Filters-Element-Replacement-Instructions

GFN 0006 to 1500 Validated Performance Compressed Air & Gas Filters

Service Guide

Filename
EN-GF-Line-Filters-Element-Replacement-Instructions.pdf
Size
2 MB
Format
pdf
View

"I'll start by saying that the nano filter system is a significant upgrade from the previous brand, which failed, and it will be much easier to service when necessary."

- Rick DeAngelis, A Portal Diesel Compressor Specialist in the USA


Features

Deep-pleated media technology delivers exceptional oil coalescing and particulate removal while providing extremely low-pressure drop.

Die cast aluminium housing with internal and external E-Coat™ finishing for optimum corrosion resistance

No-tie rod allows for easy bowl removal and maintenance.


Specifications of Our Models

Compressed Air & Gas

Filter Model

Replacement Element Inlet & Outlet Flow Rate

Part No.

BSPP

Nm3/hr

GFNB 0006 (grade)

GE 0015 (grade)

⅛”

10

GFNB 0015 (grade)

GE 0015 (grade)

¼”

25

GFNB 0025 (grade)

GE 0032 (grade)

¼”

42

GFNB 0032 (grade)

GE 0032 (grade)

⅜”

54

GFNB 0050 (grade)

GE 0050 (grade)

½”

85

GFNB 0070 (grade)

GE 0105 (grade)

½”

119

GFNB 0085 (grade)

GE 0105 (grade)

¾”

145

GFNB 0105 (grade)

GE 0105 (grade)

1”

178

GFNB 0125 (grade)

GE 0175 (grade)

1”

212

GFNB 0175 (grade)

GE 0175 (grade)

1”

298

GFNB 0280 (grade)

GE 0325 (grade)

1 ¼”

476

GFNB 0325 (grade)

GE 0325 (grade)

1 ½”

553

GFNB 0450 (grade)

GE 0450 (grade)

2”

765

GFNB 0700 (grade)

GE 0700 (grade)

2”

1190

GFNB 0850 (grade)

GE 0900 (grade)

2 ½”

1445

GFNB 0900 (grade)

GE 0900 (grade)

3”

1530

GFNB 1250 (grade)

GE 1250 (grade)

3”

2125

GFNB 1500 (grade)

GE 1500 (grade)

3”

2550


Specifications

GFNB 0006 to GFNB 0015

GFNB 0025 to GFNB 0050

GFNB 0070 to GFNB 1500

Design operating pressure range

0 to 16 barg

0 to 16 barg

1.5 to 16 barg

dP equipment (part no.)

-

indicator - GFDP 0050

gauge - GFDP 1500

Condensate drain (included)

GFDK 0050

GFDK 0050

GFDK 1500

Element Performance

M1

M01

AC

RM1

Maximum oil content (ISO class)

3

1

1

3

Particle removal

1 micron

0.01 micron

-

1 micron

Max oil carryover at 20°C

0.3 ppm

0.01 ppm

0.003 ppm

0.3 ppm

Design operating temperature range

0 to 80°C

0 to 80°C

0 to 50°C

0 to 80°C

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.


Frequently Asked Questions

A compressed air and gas filter is a crucial device expertly designed to eliminate contaminants such as dust, moisture, oil, and particles from compressed air or gas systems. These filters guarantee that the air or gas remains impeccably clean and dry, safeguarding machinery, tools, and equipment from damage and enhancing the quality of the output. This is especially vital in sensitive applications such as medical, food, or industrial processes. Without effective filtration, impurities can significantly diminish efficiency, lead to equipment failure, or compromise product quality. Thus, using a filter is essential for ensuring optimal system performance and longevity.

  • Particulate Filters: Remove solid particles like dust and dirt.
  • Coalescing Filters: Separate water and oil aerosols from the air or gas.
  • Activated Carbon Filters: Remove odours and trace gases by adsorption.

nano GFNB compressed air and gas filters expertly utilise a powerful combination of mechanical filtration, coalescing, and adsorption to eliminate contaminants effectively. As compressed air or gas flows through the filter, particles are efficiently trapped within a deep-pleated filter medium or coalescer, while water and oil are skillfully separated and expelled.

In numerous systems, multiple stages of filtration are essential for effectively eliminating various types of contaminants. Typically, a particulate filter operates first to capture large particles, followed by a coalescing filter that handles oil and water separation. The number of stages is determined by the required air quality and the specific contaminants involved.

  • M1: Primary filtration for particulate and oil removal
  • M01: To be used after an M1 filter,  the M01 grade provides finer particulate and oil removal
  • AC: To be used after an M1/M01 filter, the AC grade removes odours and oil vapours
  • RM1: Typically used as an after filter, the RM1 grade removes dry particulate.

Filter size is based on the flow rate and pressure requirements of your compressed air or gas system. It’s essential to match the filter size to the specific needs of your system to ensure optimal filtration and prevent restrictions or performance loss. You should select a filter that matches or exceeds the flow rate of your system to maintain optimal performance. The flow rate is critical to ensure that the filter can handle the volume of compressed air or gas your system requires without causing excessive pressure loss or inefficiency. The GFNB range includes filters with flow rates ranging from 10 to 2550 Nm3/h to accommodate all small to mid-flow applications. Our high-capacity fabricated filter range is the solution for more significant flows of up to 28800 Nm3/h.

The maximum pressure rating for our GFNB range is 16 barg. It's essential to match the filter's pressure rating with the pressure level of your compressed air or gas system. Using a filter with an insufficient pressure rating can lead to damage or failure, so ensuring compatibility is essential. We offer a mid-pressure filter range rated at 50 barg for applications requiring higher-pressure solutions. For even higher pressures, our high-pressure stainless-steel filters are designed to handle up to 350 barg.

Grade RM1, M1, and M01 filters can withstand a maximum design temperature of 80°C, whereas the AC grade has a maximum of 50°C.  Filters have a specific temperature range they can operate within. Make sure to choose a filter that can withstand the temperature of your compressed air or gas system to avoid damage or malfunction.

Certain filters are made specifically for particular gases, such as nitrogen, oxygen, or hydrogen. It is important to ensure that the filter you buy is compatible with the type of gas used in your system. Using an incorrect filter may result in ineffective filtration or even cause system failure. For the best recommendations on filters based on the specific gas you need to filter, consult a nano specialist.

The GFNB range has been tested in accordance with ISO 12500-4. Our filters are also performance validated by a third party.

nano GFNB filter housings are made from die-cast aluminium and feature a durable powder-coated exterior. They also have an internal and external E-Coat™ finish for superior corrosion resistance. The filter element is constructed from borosilicate microfiber, and the end caps are glass-filled nylon.

Grade M1 and M01 filters are equipped with a reliable automatic float drain, while our grade AC and RM1 filters come with a robust manual drain.

External condensate drains are readily available, including options like timed solenoid drains and zero air loss drains.

A filter's lifespan depends on the type of contaminants in your system, the quality of the filter, and maintenance practices. Regular monitoring and maintenance are essential to ensure continued efficiency.

Filters must undergo regular maintenance to ensure optimal performance. This critical process includes checking the pressure drop across the filter, draining water from coalescing filters, and replacing filter elements as needed. The maintenance frequency will vary based on your system's usage and environmental conditions, but staying proactive in these tasks is essential for efficiency and longevity. You can easily find the service intervals for GFNB filter components in our spare parts guide. If you need further details, our nano technical support team is ready to assist you.

Grade RM1, M1 and MO filter elements must be replaced annually. In addition, the Grade AC filter element must be replaced after every 1,000 hours of operation. For detailed information on replacement elements, refer to our spare parts guide.

nano offers high-quality wall mounting and connecting kits designed for optimal performance. Our wall mounting kits ensure a secure attachment of filters to any wall, maximising your available space. Meanwhile, the connecting kits make it effortless to install multiple filter applications, streamlining your setup with ease and efficiency. For comprehensive information on the accessories available for the GFNB range, be sure to check out our spare parts guide.

The cost is determined by the size required for your compressed air system.

18 months from the date of shipment (from the factory) or 12 months from the date of installation/start-up, whichever occurs first • Coverage: 100% parts only

If your system has specific requirements or operates under unique conditions, a custom filter solution is essential. Don't hesitate to contact the nano team for a specialised solution tailored specifically to your application.
