Manual valve and sterilizable glass drain flask are included as standard
Key Specs:
Flow Rate
2.1 to 156 scfm
Connection
1/4” to 3“ NPT
Filtration
0.01 micron
Product Documentation

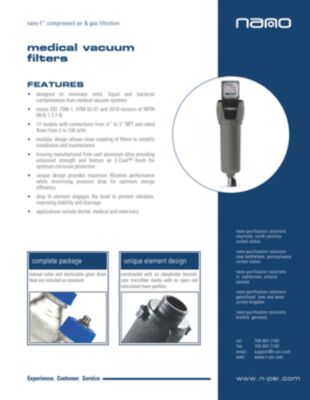

- Brochures
Features
Allows close coupling of filters to simplify installation and maintenance
Drop-fit element engages the bowl to prevent vibration, improving stability and drainage
Specifications of our models
Filter Model |
Replacement Element Part no. |
Inlet & Outlet (1) |
Exhaust Flow Rate (2) (vacuum displacement) |
|
NPT |
scfm |
Nm3/h |
||
E 0025 MV |
¼” |
2.1 |
3.5 |
|
E 0035 MV |
⅜” |
2.9 |
5.0 |
|
E 0050 MV |
½” |
4.1 |
7.0 |
|
E 0090 MV |
½” |
7.1 |
12 |
|
E 0090 MV |
¾” |
8.8 |
15 |
|
E 0135 MV |
¾” |
14.7 |
25 |
|
E 0135 MV |
1” |
19.4 |
33 |
|
E 0175 MV |
1” |
26.5 |
45 |
|
E 0325 MV |
1 ¼” |
35.3 |
60 |
|
E 0325 MV |
1 ½” |
41.2 |
70 |
|
E 0450 MV |
1 ½” |
55.9 |
95 |
|
E 0450 MV |
2” |
70.6 |
120 |
|
E 0700 MV |
2” |
103 |
175 |
|
E 1000 MV |
2 ½” |
112 |
190 |
|
E 1000 MV |
3” |
118 |
200 |
|
E 1250 MV |
3” |
132 |
225 |
|
E 1500 MV |
3” |
156 |
265 |
|
Specifications |
NMV 0025 to 0050 |
NMV 0070 to 1500 |
Vacuum Indicator |
NDV 50 |
NDV 1500 |
Condensate Drain (included) (3) |
MLF 100 |
MLF 250 |
Design Operating Pressure Range |
Full Vacuum to 7 psig / 0.5 bar |
|
Filter Housing Material |
Cast aluminum with e-Coat™ & powder top coat finish |
|
Element Performance |
MV |
DOP Particle Removal Efficiency (4) |
> 99.995% |
Pressure Drop - Clean |
0.44 psid / > 0.0 bar |
Pressure Drop - Recommended Replacement |
1.5 psid / 0.1 |
Design Operating Temperature Range |
35 to 140°F / 2 to 60°C |
Flow Direction Through Element |
Outside to Inside |
Maximum Element Life |
6 months or 1000 hours |
(1) inlet and outlet connections are NPT threaded to ANSI B2.1
(2) free air conditions when operating at atmospheric pressure. For vacuums refer to the vacuum correction factor table above
(3) includes manual valve and sterilizable glass drain flask
(4) as specified in HTM 02-01 medical gas pipeline systems
(5) technical specifications subject to change without notice. Direct inquiries to support or contact 704.897.2182
