Breathing Air

nano aircel Breathing Air Desiccant Dryer

In many industries, compressed air is used for breathing purposes. However, in some cases, hazardous gases like carbon dioxide (CO2) and carbon monoxide (CO) need to be removed to ensure safe breathing. The nano aircel BHD breathing air dryer system is designed to address this issue. It is an ideal solution for applications that involve high levels of CO and CO2 in the air, as it can reduce these gases to safe levels for breathing. The system produces a clean, reliable, and safe breathable air supply that meets the OSHA Grade D (US) and CSA Z180.1-13 (Canada) breathing air standards. By using this system, you can ensure that your workers are provided with the best possible quality of breathing air. Therefore, if you want to prioritize the safety and well-being of your workers, the nano aircel BHD breathing air desiccant dryer system is the way to go.

Key Specs:

Flow Rate

50 to 1000 scfm

Connections

½”  NPT to 3" Flg

STANDARDS

OSHA Grade D
CSA Z180.1-13

Product Documentation

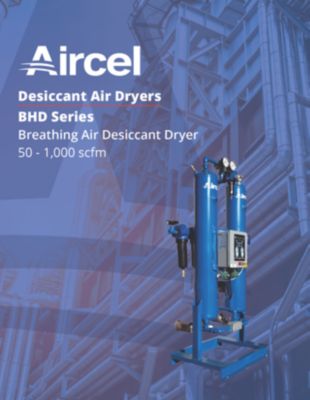

nano aircel BHD Breathing Air Desiccant Dryer Brochure

nano aircel BHD Breathing Air Desiccant Dryers

Product Brochure

Filename
EN-BHD-brochure-breathing-air-desiccant-dryer.pdf
Size
5 MB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View
F2003_16_2268KG5H4_53732394_SDS_GEN_US_en_9-1_US01.PDF

nano aircel BHD Breathing Air Desiccant Dryers F200 Activated Alumina Desiccant

Material Safety Data Sheet

Filename
EN-AHLD-HLA-AEHD-ABP-BHD-AHCR-Rental-F200-.1875-SDS.pdf
Size
622 KB
Format
pdf
View

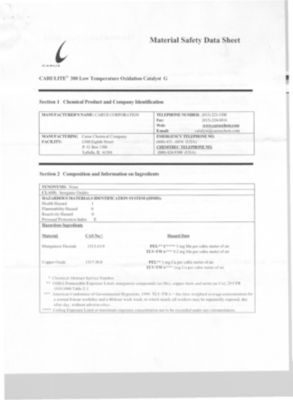

nano aircel BHD Breathing Air Desiccant Dryers Carulite 300 Low Temperature Oxidation Catalyst G

Material Safety Data Sheet

Filename
EN-B1-BHD-breathing-air-desiccant-dryer-Carulite-300-low-temp-oxidation-catalyst-G.pdf
Size
1 MB
Format
pdf
View

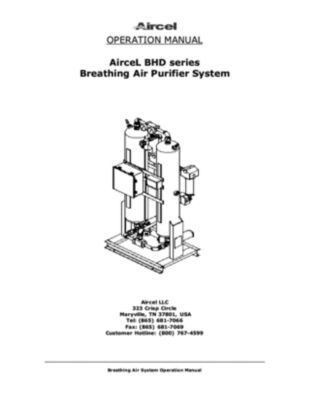

nano aircel BHD Breathing Air Desiccant Dryer User Guide Manual

nano aircel BHD Breathing Air Desiccant Dryers

User Guide

Filename
EN-BHD-user-guide-manual-breathing-air-desiccant-dryer.pdf
Size
1 MB
Format
pdf
View

Features

High quality CO monitor as standard providing a constant sensing of CO concentration to ensure the safety of all users.

Achieves a unique purification process without the addition of third purification vessel that is required and utlized on many competitive design.  Includes high quality coalescing prefilter, activated carbon after filter and a particulate final filter mounted as standard.

NEMA 4 programmable controller is standard with ethernet communcation capabilities.

Specifications of our models

Model

Inlet Connection

Flow at 100 psig (scfm)

NPT/Flg

Inlet

Outlet

BHD-50 ½” 50 40
BHD-80 ¾” 80 64
BHD-100 1" 100 80
BHD-150 1" 150 120
BHD-200 1 ½” 200 160
BHD-250 1 ½” 250 200
BHD-300 1 ½” 300 240
BHD-350 2" 350 280
BHD-450 2" 450 360
BHD-500 2" 500 400
BHD-600 2" 600 480
BHD-750 3" Flg 750 600
BHD-1000 3" Flg 1000 800

Specifications

Operating pressure range

60 to 175 psig

Inlet air temperature

40 to 100°F

Ambient air temperature

38 to 105°F

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
