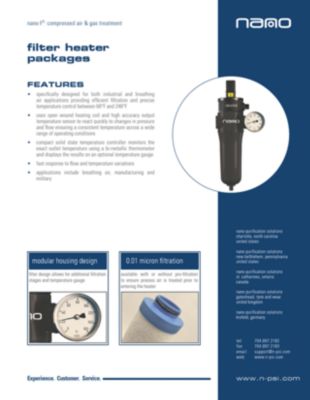

nano-purification solutions product brochure with equipment details

F5 NH Brochure

Filename
EN-F5-NH-brochure-filter-heater-combination-filters.pdf
Size
623 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View

Features

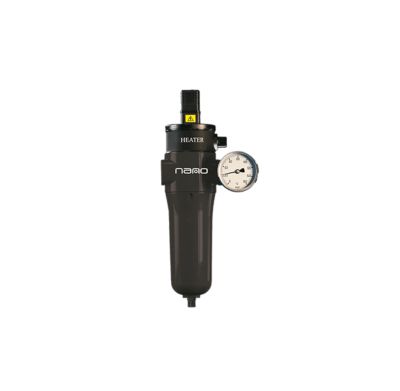

Can be supplied and directly mounted to nano filtration to ensure process air is clean

Compact solid-state temperature controller is mounted on top of the unit and the exact temperature output is indicated by a bi-metallic thermometer

Uses an open wound heating coil and high accuracy output temperature sensing device

Specifications of our models

Filter Model

Replacement

Part No.

Inlet & Outlet

Rated Flow (1)

Supply Voltage

NPT

scfm

Nm3/h

1ph / 50-60 Hz

Heater

NH 27 A1

-

3/8”

27

46

115 VAC

NH 27 A2

-

3/8”

27

46

230 VAC

NH 27 B1

-

1/2”

27

46

115 VAC

NH 27 B2

-

1/2”

27

46

230 VAC

Heater + Temperature Gauge

NTH 27 A1

-

3/8”

27

46

115 VAC

NTH 27 A2

-

3/8”

27

46

230 VAC

NTH 27 B1

-

1/2”

27

46

115 VAC

NTH 27 B2

-

1/2”

27

46

230 VAC

Filter + Heater

NFH 27 A1

E 27 M01

3/8”

27

46

115 VAC

NFH 27 A2

E 27 M01

3/8”

27

46

230 VAC

NFH 27 B1

E 27 M01

1/2”

27

46

115 VAC

NFH 27 B2

E 27 M01

1/2”

27

46

230 VAC

Filter + Heater + Temperature Gauge

NFTH 27 A1

E 27 M01

⅜”

27

46

115 VAC

NFTH 27 A2

E 27 M01

⅜”

27

46

230 VAC

NFTH 27 B1

E 27 M01

½”

27

46

115 VAC

NFTH 27 B2

E 27 M01

½”

27

46

230 VAC

Specifications

Minimum operating flow

1.7 scfm

Design operating pressure

22 to 232 psig

Automatic float drain (filter)

NDK 0050

Semi-automatic drain (heater)

NSDK 175

Power rating

1.5 kW

Input temperature range

-4 to 248°F

Controlled output temperature range

60 to 248°F

Electrical connection

DIN

Element Performance (2)

M01

Maximum particle size (ISO class) (3)

1

Maximum oil content (ISO class) (3)

2

Particle removal

0.01 micron

Max oil carry over at 68°F

0.01 ppm

Recommended operating temperature range

35 to 212°F

Design operating temperature range

35 to 248°F

Maximum element life

12 months or 8000 hours

(1) At 100 psig. For all other pressures, contact our nano support team.
(2) Applies to filter & heater packages (NFH & NFTH) only. Filters are required for all applications containing liquids or aerosols.
(3) Per ISO 8573.1:2001 (E).
(4) When used in breathing air application, the product will be installed downstream of a suitable breathing air purifier (consult nano). The product does not remove gases such as CO or CO2.
(5) Technical specifications subject to change without notice.
