Aftercooling

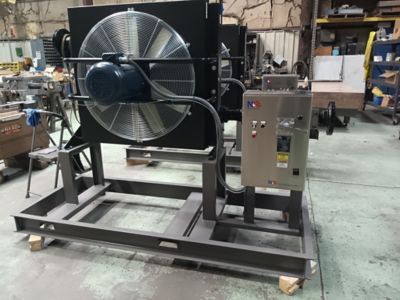

High Performance Aftercoolers

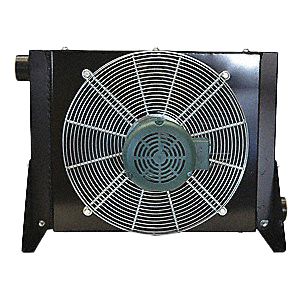

Introducing the X-CC Series Aftercooler Package - the complete solution designed to work seamlessly with most models of rotary and piston air compressors. Our state-of-the-art manufacturing facility ensures the highest build quality, delivering superior performance that meets the highest industry standards. Trust the X-CC Series to keep your air compressor running smoothly and efficiently.

Key Specs:

Flow Rate

100 to 3500 scfm

Operating Temperatures

35 to 250°F

Max Allowable Working Pressure

250 psig

Product Documentation

nano-purification solutions product brochure with equipment details

X-CC High Performance Aftercoolers

Product Brochure

Filename
EN-X1-X-CC-brochure-compressed-air-aftercoolers.pdf
Size
764 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View
The ga drawing for the X-CC 100 aftercooler

X-CC 100 High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-100-ga-general-arrangement-drawing-aftercooler.pdf
Size
339 KB
Format
pdf
View
The ga drawing for the X-CC 200 aftercooler

X-CC 200 High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-200-ga-general-arrangement-drawing-aftercooler.pdf
Size
265 KB
Format
pdf
View
The ga drawing for the X-CC 450 single phase motor aftercooler

X-CC450-1 (Single Phase Motor) High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-450-ga-general-arrangement-drawing-single-phase-motor-aftercooler.pdf
Size
210 KB
Format
pdf
View
The ga drawing for the X-CC 450 three phase motor aftercooler

X-CC 450-3 (Three Phase Motor) High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-450-ga-general-arrangement-drawing-three-phase-motor-aftercooler.pdf
Size
531 KB
Format
pdf
View
The ga drawing for the X-CC 600 aftercooler

X-CC 60 High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-600-ga-general-arrangement-drawing-aftercooler.pdf
Size
505 KB
Format
pdf
View
The ga drawing for the X-CC 1000 aftercooler

X-CC 1000 High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-1000-ga-general-arrangement-drawing-aftercooler.pdf
Size
375 KB
Format
pdf
View
The ga drawing for the X-CC 1600 aftercooler

X-CC 1600 High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-1600-ga-general-arrangement-drawing-aftercooler.pdf
Size
314 KB
Format
pdf
View
The ga drawing for the X-CC 2000 aftercooler

X-CC 2000 High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-2000-ga-general-arrangement-drawing-aftercooler.pdf
Size
947 KB
Format
pdf
View
The ga drawing for the X-CC 2500 aftercooler

X-CC 2500 High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-2500-ga-general-arrangement-drawing-aftercooler.pdf
Size
710 KB
Format
pdf
View
The ga drawing for the X-CC 3500 aftercooler

X-CC 3500 High Performance Aftercooler

General Arrangement Drawing

Filename
X1-X-CC-3500-ga-general-arrangement-drawing-aftercooler.pdf
Size
688 KB
Format
pdf
View

Features

We’ve constructed our X-CC fin and tube designs to be up to 60% smaller than other conventional components on the market

Available 7 motor configurations to meet all application needs

Heresite core for corrosion protection, water separator for removing condensate

Specifications of our models

Specifications

Maximum working pressure

250 psi

Maximum working temperature

250°F

Cooler material

aluminum

Shroud material

powder painted steel

Fan guard material

zinc plated steel

Fan blade material

polypropylene blades/aluminum hub

Mounting brackets

powder painted steel



ROTARY COMPRESSOR

Air Compressor

Internal Air Flow

Recommended X-CC Model

Horsepower

Maximum cfm

20 hp

113

X-CC 100

25-40 hp

245

X-CC 200

50-75 hp

539

X-CC450

100-125 hp

785

X-CC 600

150-200 hp

1569

X-CC 1000

225-350 hp

2300

X-CC 1600

400-500 hp

3016

X-CC 2000

550-700 hp

4316

X-CC 2500

750-1000 hp

4800

X-CC 3500



PISTON COMPRESSOR

Air Compressor

Internal Air Flow

Recommended X-CC Model

Horsepower

Maximum cfm

20 hp

83

X-CC 100

25-30 hp

181

X-CC 200

40-70 hp

432

X-CC450

75-100 hp

638

X-CC 600

125-200 hp

1256

X-CC 1000

225-300 hp

2133

X-CC 1600

350-400 hp

3400

X-CC 2000

400-500 hp

4458

X-CC 2500

700-850 hp

4800

X-CC 3500



MOISTURE SEPARATORS

Aftercooler

Separator

Series Maximum Capacity

X-CC 100

NF 0175 WS

X-CC 100

X-CC 200

NF 0325 WS

X-CC 200

X-CC450

NF 0700 WS

X-CC450

X-CC 600

NF 0700 WS

X-CC 600

X-CC 1000

NF 1250 WS

X-CC 1000

X-CC 1600

NF 1500 WS

X-CC 1600

X-CC 2000

NFE 3000 WS-ND

X-CC 2000

X-CC 2500

NFE 3000 WS-ND

X-CC 2500

X-CC 3500

NFE 3000 WS-ND

X-CC 3500



Electrical Motor Data

Model

HP RPM

Motor Frame

Single Phase

Three Phase

Voltage

Hz

Full Load amps 230V

Voltage

Hz

Full Load amps 230V

X-CC 100

⅓ 3450

IEC 63

115/230

60

2.6

208-230/460

190/380

60

50

1.1

X-CC 200

½ 3450

IEC 71

115/230

60

3.5

208-230/460

190/380

60

50

1.6

X-CC450

½ 1725

NEMA 56C

115-230/460

60

4.0

208-230/460

60*

2.0

X-CC 600

1 1725

NEMA 56C

115-230/460

60

6.4

208/230/460

60*

3.8

X-CC 1000

2 1725

NEMA 56C

115/230

60

9.2

208-230/460

60*

6.2

X-CC 1600

5 1725

NEMA 184TC

230

60

23

208-230/460

60*

13.2

X-CC 2000

7 ½ 1725

NEMA 213TC

CF

CF

CF

208-230/460

60*

19.6

X-CC 2500

7 ½ 1725

NEMA 213TC

CF

CF

CF

208-230/460

60*

19.6

X-CC 3500

10 1725

NEMA 213TC

CF

CF

CF

208-230/460

60*

26.0



Air Motor Data

Model

Air Pressure to Motor (psi)

Motor Air Consumption (cfm)

Air Motor Connection Size

Fan RPM

X-CC 100

30

10

¼” NPT

3450

X-CC 200

60

17

¼ NPT

3450

X-CC450

40

25

¼” NPT

1725

X-CC 600

40



¼” NPT

1725

X-CC 1000

60

70

½” NPT

1725

X-CC 1600

60

150

1 ¼” NPT

1725

X-CC 2000

80

200

1 ¼” NPT

1725

X-CC 2500

80

200

1 ¼” NPT

1725

X-CC 3500

100

240

1 ¼” NPT

1725



(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
