Desiccant Compressed Air Dryers

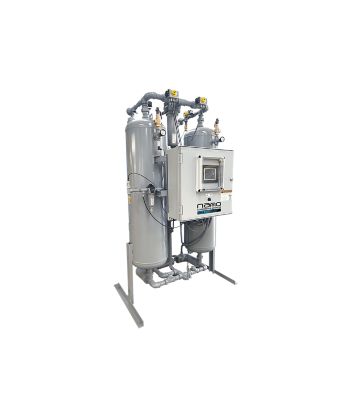

Externally Heated Twin Tower Dryers

The nano D5 EHA externally heated twin tower desiccant compressed air dryers are designed to remove water vapor from your compressed air lowering the pressure dewpoint to -40°F/-40°C. Designed for the most demanding environments, low pressure drop and consistent dew point performance are key benefits of the dryer range. As the size of your compressed air system increases, it becomes more important to reduce purge air consumption. The EHA range does just that with the purge rate averaging 6 to 8% conserving compressed air and saving you money.

Key Specs:

Flow Rate

100 to 5000 scfm

Connection

 1” NPT(F) to 6” Flg

Air Quality

ISO 8573.1:2010 Class 1.2.2 or 1.1.2

Product Documentation

nano-purification solutions product brochure with equipment details

D5 HLA/BPA/EHA - Brochure

Filename
EN-D5-HLA-EHA-BPA-brochure-twin-tower-desiccant-dryers.pdf
Size
9 MB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
equipment user guide product manual

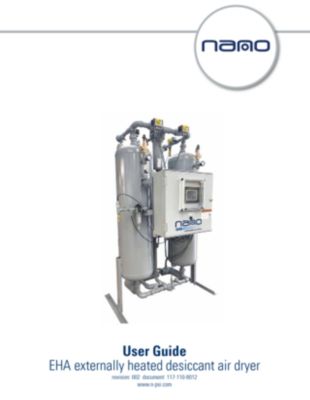

D5 EHA - User Guide

Filename
D5-EHA-user-guide-manual-externally-heated-desiccant-dryer.pdf
Size
2 MB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Application Worksheet

Filename
EN-D-series-worksheet-desiccant-dryers.pdf
Size
212 KB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Technical Paper

Filename
EN-D-Series-technical-paper-desiccant-dryers.pdf
Size
450 KB
Format
application/pdf
View
ga general arrangement drawing

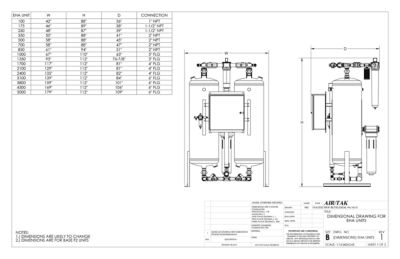

D5 EHA - General Arrangement (GA) Drawing

Filename
D5-EHA-ga-drawing-general-arrangement-externally-heated-twin-tower-desiccant--Airtak-dryer.pdf
Size
621 KB
Format
application/pdf
View
electrical wiring schematics diagram

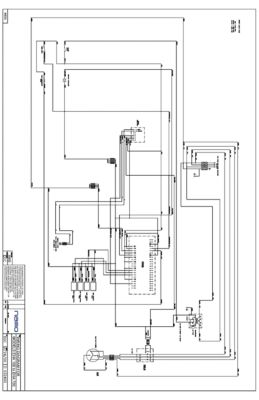

D5 EHA 100-700 - Electrical Diagram

Filename
D5-EHA-100-700-electrical-wiring-schematics-externally-heated-twin-tower-desiccant-dryer.pdf
Size
1 MB
Format
application/pdf
View

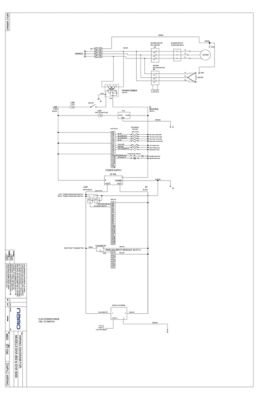

D3 PNU NDL 2110-6130 - Electrical Diagram

Features

Our models are operated by a robust and reliable PLC system housed in a NEMA4X control panel

Our energy saving dew point control option provides the ultimate in energy and power savings and reduces dryer wear and tear

 ASME code pressure vessels, UL/cUL compliant, made in the USA activated alumina, lifting lugs and/or fork lift pockets

Specifications of our models

Dryer Models

Recommended Pre & After Filtration (1)

Inlet & Outlet (2)

Rated Flow (3)

Heater

Pre-Filter

After-Filter

NPT (F) / FLG

scfm

Nm3/h

kW

EHA 100

GF 0105 M01

NHT 0150 M1

1"

100

161

1.5

EHA 175

GF 0325 M01

NHT 0300 M1

1 ½"

175

282

3

EHA 250

GF 0325 M01

NHT 0300 M1

1 ½"

250

403

3

EHA 350

GF 0450 M01

NHT 0450 M1

2"

350

564

6

EHA 500

GF 0700 M01

NHT 0650 M1

2"

500

805

6

EHA 700

GF 0700 M01

NHT 1000 M1

2"

700

1127

9

EHA 850

GF 0850 M01

NHT 1000 M1

2"

850

1369

9

EHA 1000

GF 1250 M01

NHT 1000 M1

3"

1000

1610

12.5

EHA 1350

GF 1500 M01

NHT 1600 M1

3"

1350

2174

12.5

EHA 1700

NFZ 2500 M01

NFZ 2500 M1HT

3"

1700

2737

18

EHA 2100

NFZ 2500 M01

NFZ 2500 M1HT

4"

2100

3381

25

EHA 2400

NFZ 2500 M01

NFZ 2500 M1HT

4"

2400

3864

25

EHA 3100

NFZ 3500 M01

NFZ 3500 M1HT

4"

3100

4991

30

EHA 3800

NFZ 4000 M01

NFZ 4000 M1HT

6"

3800

6118

40

EHA 4300

NFZ 5000 M01

NHT 5000 M1HT

6"

4300

6923

50

EHA 5000

NFZ 5000 M01

NHT 5000 M1HT

6"

5000

8050

50

Specifications

Standard

Optional

maximum water content (ISO class) (5)

class 2 (1 micron)

class 1 (0.01 micron)

maximum water content (ISO class) (5)

class 2 (-40°F/-40°C pdp)

-

minimum/ design /maximum operating pressure range (6)

80 psig / 100 psig / 150 psig

5.5 bar / 6.9 bar / 10.3 bar

58 to 250 psig / 4 to 17.2 bar

minimum / design/ maximum ambient temperature

38°F / 100°F / 120°F

3°C / 38°C  / 49°C

-

minimum / design / maximum inlet temperature

38°F / 100°F/ 120°F

3°C / 38°C  / 49°C

-

power supply requirements

460VAC/60Hz

575V/60Hz or 380 VAC/50Hz

(1) 3" and below are NPT(F) threaded. 4" and above are flanged. All units with 3" piping and above will be ANSI welded pipe

(2) in compliance with ADF 100 specifications for compressed air dryers: Inlet temperature: 100°F/38°C, ambient temperature: 100°F/38°C, inlet pressure dew point: -40°F/-40°C. For all other conditions refer to the correction factors or contact support

(3) approx. weight for all models does not include desiccant installed

(4) recommended for all applications and includes NPT pre and after filters mounted on the dryers. For flanged, consult factory (add -F2 suffix)

(5) per ISO 8573.1:2010

(6) maximum working pressure for all models is 150 psig/10.3 barg. For higher pressures, contact support

(7) be used as a rough guide only. All applications should be confirmed by nano. Contact nano for sizing assistance

(8) all models are UL/cUL compliant

(9) all models have ASME coded pressure vessels. For other approvals, consult support

(10) for sizes above 5000 scfm and pressure below 60 psig/4.1 barg, please contact support

(11) technical specifications subject to change without notice. Direct inquiries to support or contact 704.897.2182
