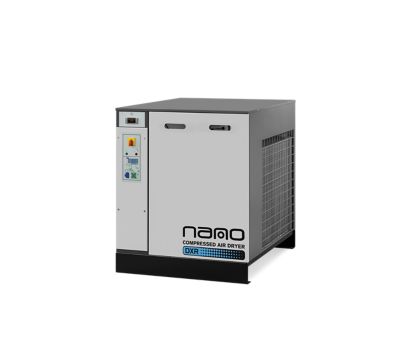

Plug-and-play design is fully packaged into a simple compact design, allowing these models to fit into the smallest spaces
Key Specs:
Flow Rate
10 to 4200 scfm
Connection
½” NPT(M) to 6” Flg
Air Quality
ISO 8573.1:2010 Class 5

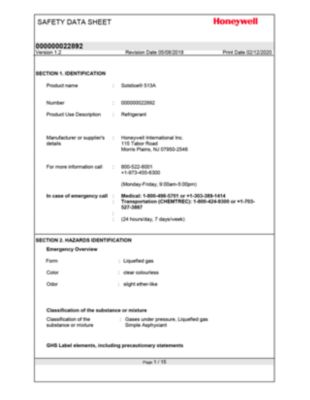

Product Documentation

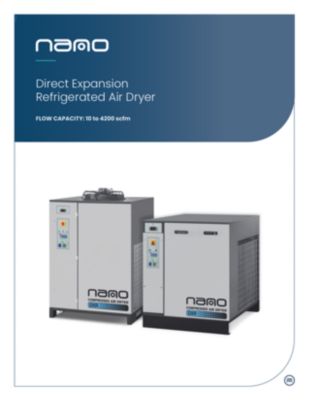

- Brochures
- User Guides
- Worksheet

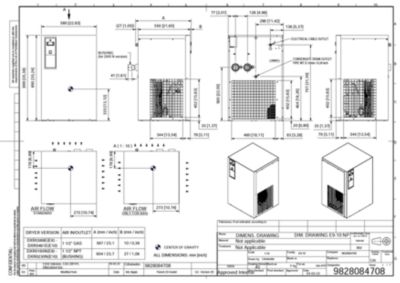

- GA Drawings

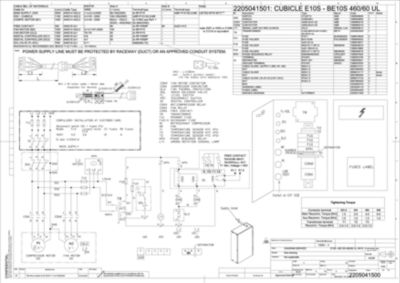

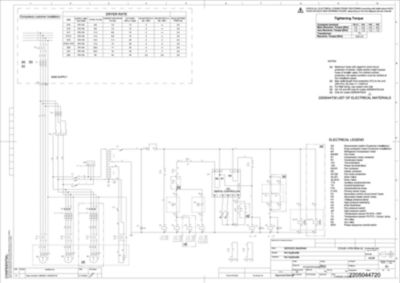

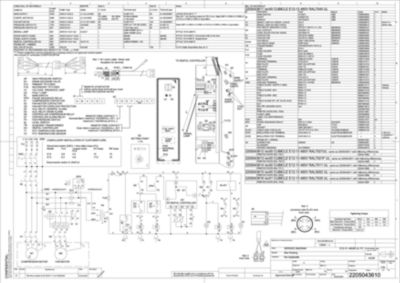

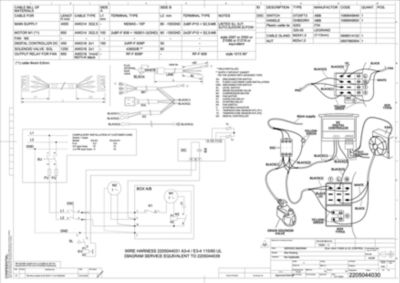

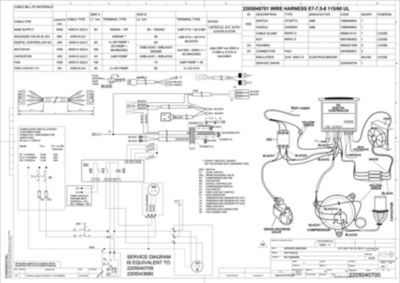

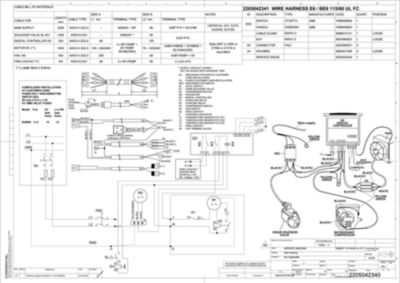

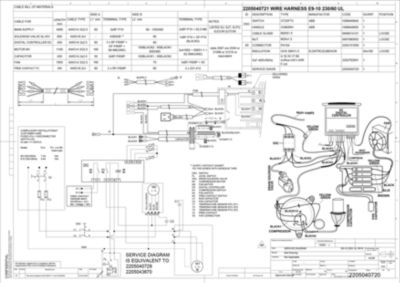

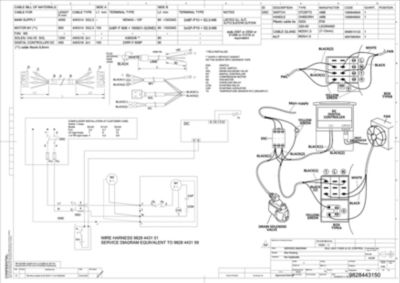

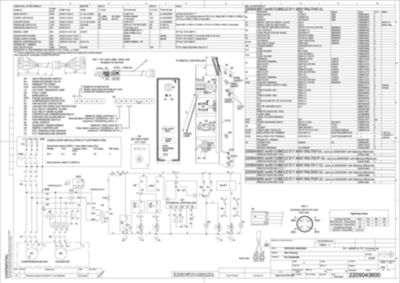

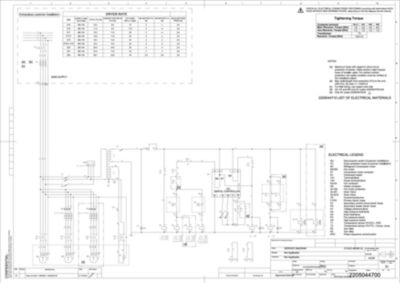

- Electrical Diagrams

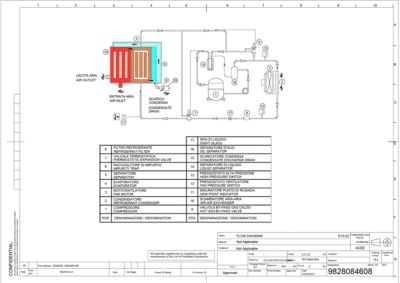

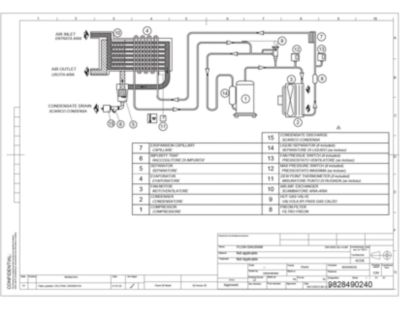

- Flow Diagrams
Features
Powder coated steel panels for optimum corrosion resistance
Pre- and after filter packages available to provide additional energy savings and improved air quality
Specifications of our models
Dryer Model |
Inlet & Outlet (1) |
Rated Flow (2) |
Absorbed Power (2) |
Power Supply (V/Ph/60Hz) (4) | Refrigerant | ||||
NPT/FLG |
scfm |
Nm3/h |
kW |
115/1 |
230/1 |
460/3 |
545/3 |
||
DXR 0010 NA |
½” (M) |
10 |
17 |
0.2 |
• |
R513A |
|||
DXR 0015 NA |
½” (M) |
15 |
26 |
0.2 |
• |
R513A |
|||
DXR 0020 NA |
½” (M) |
20 |
34 |
0.2 |
• |
R513A |
|||
DXR 0030 NA |
½” (M) |
30 |
51 |
0.3 |
• |
R513A |
|||
DXR 0050 NA |
½” (M) |
50 |
85 |
0.9 |
• |
R513A |
|||
DXR 0065 NA |
¾” (M) |
65 |
111 |
0.9 |
• |
R513A |
|||
DXR 0085 NA |
1" (F) |
85 |
145 |
1.0 |
• |
R410A |
|||
DXR 0105 NA |
1" (F) |
105 |
179 |
1.0 |
• |
R410A |
|||
DXR 0125 NA |
1” (F) |
125 |
213 |
1.0 |
• |
R410A |
|||
DXR 0150 NA |
1” (F) |
150 |
255 |
1.5 |
• |
R410A |
|||
DXR 0185 NA |
1½” (F) |
185 |
315 |
1.6 |
• |
R410A |
|||
DXR 0230 NA |
1½” (F) |
230 |
391 |
2.0 |
• |
R410A |
|||
DXR 0250 NA |
1½” (F) |
250 |
425 |
2.4 |
• |
R410A |
|||
DXR 0325 NA |
2” (F) |
325 |
553 |
2.3 |
• |
R410A |
|||
DXR 0400 NA |
2” (F) |
400 |
680 |
3.2 |
• |
R410A |
|||
DXR 0500 NA |
2” (F) |
500 |
850 |
3.2 |
• |
R410A |
|||
DXR 0600 NA |
2” (F) |
600 |
1020 |
4.2 |
• |
R410A |
|||
DXR 0850 NA |
3" (M) |
850 |
1445 |
5.8 |
• |
• |
R410A |
||
DXR 1050 NA |
3" (M) |
1050 |
1785 |
6.0 |
• |
• |
R410A |
||
DXR 1250 NA |
3" (M) |
1250 |
2125 |
6.7 |
• |
• |
R410A |
||
DXR 1600 NA |
4” Flg |
1600 |
2720 |
7.8 |
• |
• |
R410A |
||
DXR 1800 NA |
4” Flg |
1800 |
3060 |
9.4 |
• |
• |
R410A |
||
DXR 2200 NA |
4” Flg |
2200 |
3740 |
9.5 |
• |
• |
R410A |
||
DXR 2400 NA |
6” Flg |
2400 |
4080 |
9.7 |
• |
• |
R410A |
||
DXR 3000 NA |
6” Flg |
3000 |
5100 |
11.4 |
• |
• |
R410A |
||
DXR 3500 NA |
6” Flg |
3500 |
5950 |
12.8 |
• |
• |
R410A |
||
DXR 4200 NA |
6” Flg |
4200 |
7140 |
17.1 |
• |
• |
R410A |
||
Specifications |
DXR 0010 to DXR 0030 |
DXR 0050 to DXR 0250 |
DXR 0325 to DXR 4200 |
Design operating pressure range |
0 to 232 psig |
60 to 203 psig |
60 to 203 psig |
Maximum inlet air temperature |
131°F |
131°F |
140°F |
Maximum ambient temperature |
41°F - 114.8°F |
41°F - 114.8°F |
41°F - 114.8°F |
(1) 1⁄2” to 3” are NPT threaded connections, 4” and up are supplied with ANSI flanged connections.
(2) Rated flow capacity: conditions for rating dryers are in accordance with ISO7183 (Option A2). Compressed air at dryer inlet: 100 psig and 100°F; ambient air temperature: 100°F; operating on 60Hz power supply.
(3) Nominal absorbed power at rated operating conditions using 115/1/60 or 230/1/60 or 460/3/60 power supply (as applicable). For absorbed power at 575V or other conditions, contact our nano support team.
(4) Specify voltage requirements when ordering.
(6) Technical specifications subject to change without notice.
*2 year warranty with pre-filtration and non-corrosive piping system installed.
