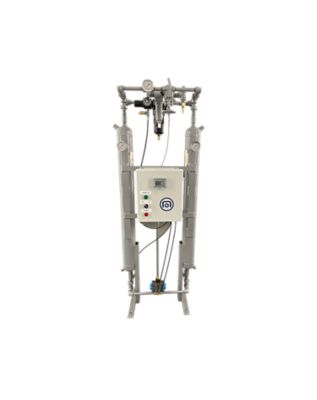

A mid-pressure twin tower desiccant dryer, with the nano logo on the front of the model

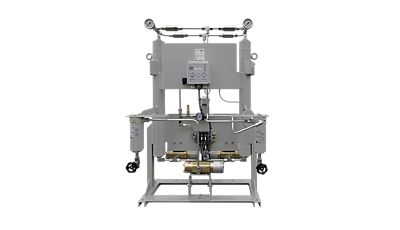

Desiccant Dryers

Mid-Pressure Twin Tower Dryers

nano D5 HLX high pressure heatless desiccant air dryers use expanded dry purge air to regenerate the offline bed. These simple yet effective dryers provide continuous uninterrupted clean dry air in a simple cost-effective and reliable package at elevated pressures.

Key Specs:

Flow Rate

30 to 2400 scfm

Connection

1⁄2" to 2" NPT

Air Quality

ISO 8573.1:2010 Class 2

equipment user guide product manual

D5 HLX - User Guide

Filename
D5-HLX-user-guide-manual-heatless-high-pressure-desiccant-air-dryer.pdf
Size
2 MB
Format
application/pdf

Specifications of our models

Dryer Model

Recommended Pre & After Filtration

Inlet & Outlet

Rated Flow (1)

Pre Filter

After Filter

NPT(F)

scfm

Nm3/h

250 psig / 17.2 barg

HLX1-3-F2

N50A0265 M01

N50A0265 M1

½”

30

51

HLX2-3-F2

N50A0265 M01

N50A0265 M1

½”

45

76

HLX3-3-F2

N50A0324 M01

N50A0324 M1

¾”

100

170

HLX4-3-F2

N50A0492 M01

N50A0492 M1

1”

225

382

HLX5-3-F2

N50A0736 M01

N50A0736 M1

1 ½”

350

595

HLX6-3-F2

N50A1015 M01

N50A1015 M1

1 ½”

500

850

HLX7-3-F2

N50A1882 M01

N50A1882 M1

2”

700

1189

HLX8-3-F2

N50A1882 M01

N50A1882 M1

2”

925

1572

HLX9-3-F2

N50A2998 M01

N50A2998 M1

2”

1150

1954

HLX10-3-F2

N50A2998 M01

N50A2998 M1

2”

1425

2421

500 psig / 34.5 barg

HLX1-5-F2

N50A0265 M01

N50A0265 M1

½”

50

85

HLX2-5-F2

N50A0265 M01

N50A0265 M1

½”

80

136

HLX3-5-F2

N50A0324 M01

N50A0324 M1

¾”

175

297

HLX4-5-F2

N50A0492 M01

N50A0492 M1

1”

325

552

HLX5-5-F2

N50A0736 M01

N50A0736 M1

1 ½”

500

850

HLX6-5-F2

N50A1015 M01

N50A1015 M1

1 ½”

750

1274

HLX7-5-F2

N50A1882 M01

N50A1882 M1

2”

1000

1699

HLX8-5-F2

N50A1882 M01

N50A1882 M1

2”

1350

2294

HLX9-5-F2

N50A2998 M01

N50A2998 M1

2”

1675

2846

HLX10-5-F2

N50A2998 M01

N50A2998 M1

2”

2100

3568

700 psig / 48.3 barg

HLX1-7-F2

N50A0265 M01

N50A0265 M1

½”

70

119

HLX2-7-F2

N50A0265 M01

N50A0265 M1

½”

90

153

HLX3-7-F2

N50A0324 M01

N50A0324 M1

¾”

210

357

HLX4-7-F2

N50A0492 M01

N50A0492 M1

1”

350

595

HLX5-7-F2

N50A0736 M01

N50A0736 M1

1 ½”

600

1019

HLX6-7-F2

N50A1015 M01

N50A1015 M1

1 ½”

875

1487

HLX7-7-F2

N50A1882 M01

N50A1882 M1

2”

1200

2039

HLX8-7-F2

N50A1882 M01

N50A1882 M1

2”

1550

2633

HLX9-7-F2

N50A2998 M01

N50A2998 M1

2”

1950

3313

HLX10-7-F2

N50A2998 M01

N50A2998 M1

2”

2400

4078

Specifications

Standard

Maximum particle size (ISO class) (2)

class 2 (1 micron)

Maximum water content (ISO class) (2)

class 2 (-40°F/-40°C pdp)

Maximum operating pressure range (3)

250 psig / 500 psig / 700 psig

17.2 barg / 34.5 barg / 48.3 barg

Minimum / design / maximum ambient temperature

38°F / 100°F / 120°F

3°C / 38°C / 49°C

Minimum / design / maximum inlet temperature

38°F / 100°F / 120°F

3°C / 38°C / 49°C

Power supply requirements (4)

115V /1 Ph/60 Hz

(1) rated flow at stated pressure, inlet temperature: 100°F/38°C, ambient temperature: 100°F/38°C. For all other conditions refer to the correction factors above or contact [email protected]

(2) per ISO 8573.1:2010

(3) all models have ASME coded pressure vessels. For other approvals, consult [email protected]

(4) all models are UL/cUL compliant
