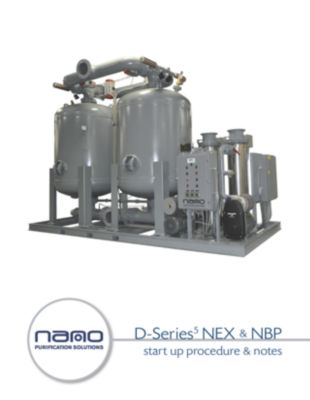

- User Guides
Specifications of these models
Model |
Inlet & Outlet | Rated Flow at 100 psig | Recommended Filtration | |
|---|---|---|---|---|
NPT / Flg |
scfm | Pre-Filter Model |
After-filter Model |
|
NBP 500 |
2" |
500 | NF0700M01 |
NHT0650M1 |
NBP 650 |
2" |
650 | NF0700M01 |
NHT0650M1 |
NBP 800 |
3" Flg |
800 | NF1000M01 |
NHT1000M1 |
NBP 1000 |
3" Flg |
1000 | NF1000M01 |
NHT1000M1 |
NBP 1250 |
3" Flg |
1250 | NF1250M01 |
NHT1250M1 |
NBP 1500 |
3" Flg |
1500 | NF1500M01 |
NHT1600M1 |
NBP 2000 |
3" Flg |
2000 | NFZ2500M01 |
NFZ2500M1HT |
NBP 2500 |
4" Flg |
2500 | NFZ2500M01 |
NFZ2500M1HT |
NBP 3000 |
6" Flg |
3000 | NFZ3000M01 |
NFZ3000M1HT |
NBP 3500 |
6" Flg |
3500 | NFZ3500M01 |
NFZ3500M1HT |
NBP 4000 |
6" Flg |
4000 | NFZ4000M01 |
NFZ4000M1HT |
NBP 5000 |
6" Flg |
5000 | NFZ5000M01 |
NFZ5000M1HT |
NBP 6000 |
6" Flg |
6000 | NFZ6000M01 |
NFZ6000M1HT |
NBP 7000 |
8" Flg |
7000 | NFZ7500M01 |
NFZ7500M1HT |
NBP 8000 |
8" Flg |
8000 | NFZ8500M01 |
NFZ8500M1HT |
NBP 9000 |
10" Flg |
9000 | NFZ10000M01 |
NFZ10000M1HT |
NBP 10000 |
10" Flg |
10000 | NFZ10000M01 |
NFZ10000M1HT |
Specifications |
Standard | Optional |
|---|---|---|
Maximum particle size (ISO class) |
class 2 (1 micron) |
class 1 (0.01 micron) |
Maximum water content (ISO class) |
class 2 (-40°F PDP) |
- |
Design operating pressure range |
80 to 150 psig |
58 to 250 psig |
Recommended operating temp range |
40 to 100°F |
- |
Design operating temperature range |
35 to 120°F |
- |
| Power supply requirements | 460 VAC / 60 Hz | 575 V / 60 Hz or 380 VAC / 50 Hz |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
