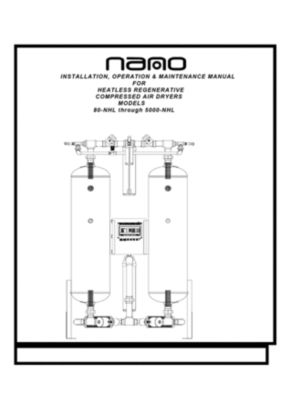

- User Guides
Specifications of these models
Model |
Inlet & Outlet | Flow Rate at 100 psig | Recommended Filter | |
|---|---|---|---|---|
NPT/Flg |
scfm | Pre-Filter Model |
After-Filter Model |
|
NHL 200 |
1" |
200 | NF0290M01 |
NF0290M1 |
NHL 250 |
1 1/2" |
250 | NF0290M01 |
NF0290M1 |
NHL 300 |
1 1/2" |
300 | NF0325M01 |
NF0325M1 |
NHL 400 |
2" |
400 | NF0450M01 |
NF0450M1 |
NHL 500 |
2" |
500 | NF0700M01 |
NF0700M1 |
NHL 600 |
2" |
600 | NF0700M01 |
NF0700M1 |
NHL 800 |
3" Flg |
800 | NF1000M01 |
NF1000M1 |
NHL 1000 |
3" Flg |
1000 | NF1000M01 |
NF1000M1 |
NHL 1250 |
3" Flg |
1250 | NF1250M01 |
NF1250M1 |
NHL 1500 |
3" Flg |
1500 | NF1500M01 |
NF1500M1 |
NHL 2000 |
4" Flg |
2000 | NFZ2500M01 |
NFZ2500M1 |
NHL 2500 |
4" Flg |
2500 | NFZ2500M01 |
NFZ2500M1 |
NHL 3000 |
4" Flg |
3000 | NFZ3000M01 |
NFZ3000M1 |
NHL 3500 |
6" Flg |
3500 | NFZ3500M01 |
NFZ3500M1 |
NHL 4000 |
6" Flg |
4000 | NFZ4000M01 |
NFZ4000M1 |
NHL 4500 |
6" Flg |
4500 | NFZ5000M01 |
NFZ5000M1 |
NHL 5000 |
6" Flg |
5000 | NFZ5000M01 |
NFZ5000M1 |
Specifications |
Standard |
Optional |
|---|---|---|
Maximum particle size (ISO class) |
class 2 (1 micron) | class 1 (0.01 micron) |
Maximum water content (ISO class) |
class 2 (-40°F) | class 1 (-94°F) |
Design operating pressure range |
80 to 150 psig | 50 to 250 psig |
Recommended operating temp range |
38 to 120°F |
- |
| Design operating temperature range | 35 to 120°F | - |
Power supply requirements |
115V/1Ph/60Hz |
220V/1Ph/50Hz & 230V/1Ph/60Hz |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
