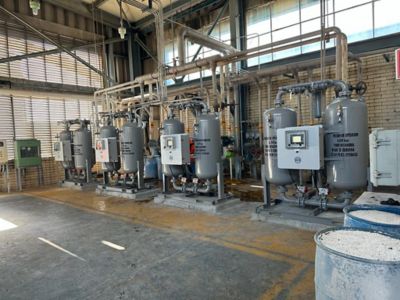

This equipment is operated by a robust and reliable PLC system housed in a NEMA4X control panel.
Key Specs:
Flow Rate
100 to 3000 scfm
Connection
¾” NPT (F) to 6" Flg
Air Quality
ISO 8573.1:2010 Class 1.2.2 or 1.1.2
Product Documentation
- Brochures

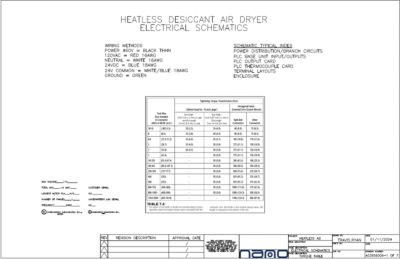

- Electrical Diagrams

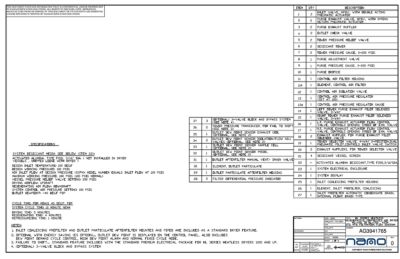

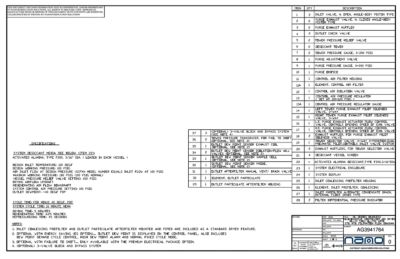

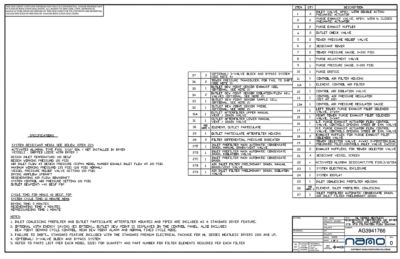

- Flow Diagrams

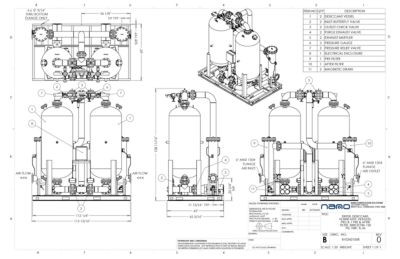

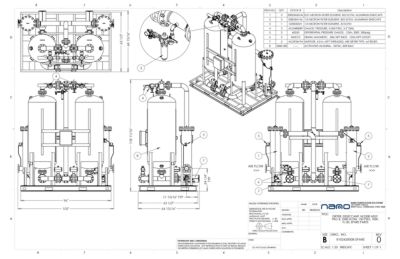

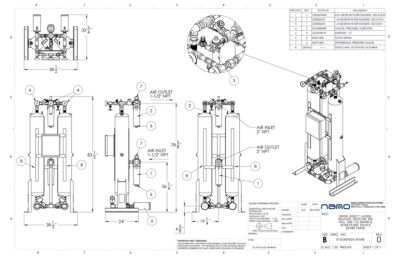

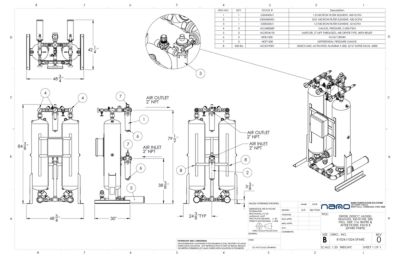

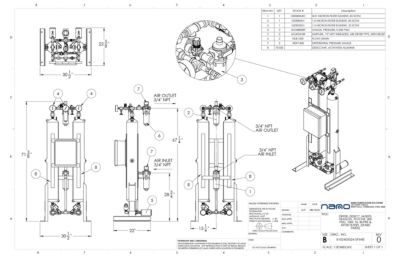

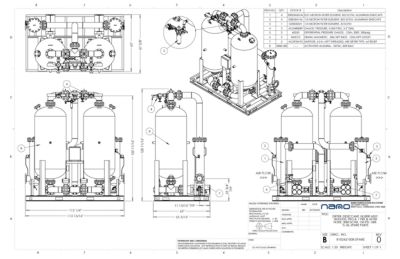

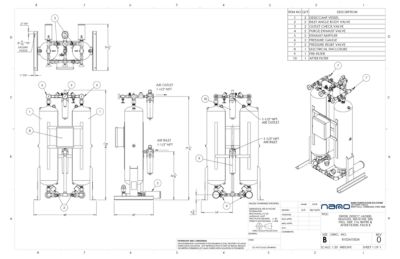

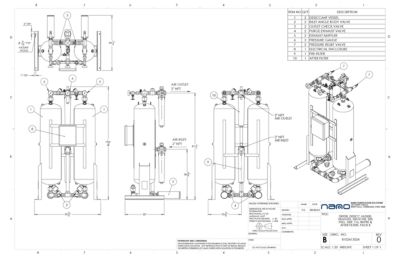

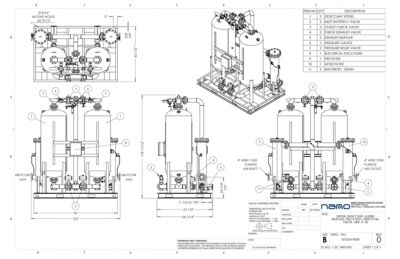

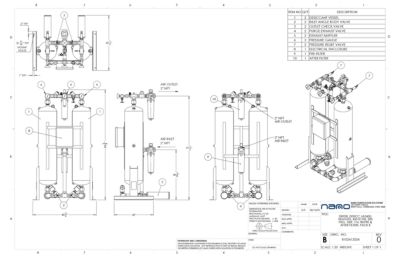

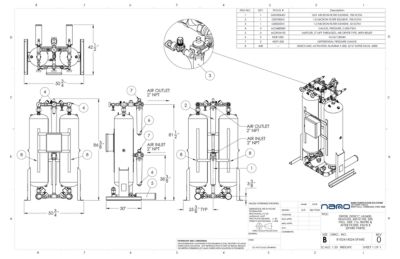

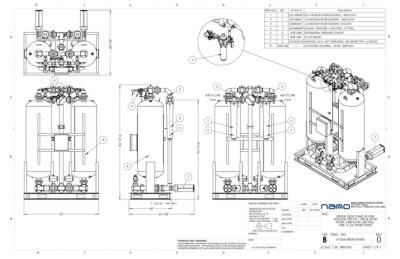

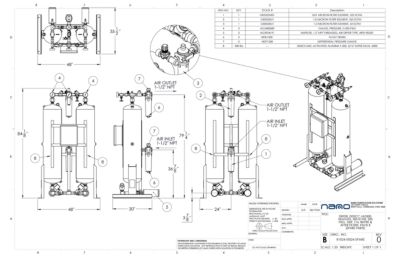

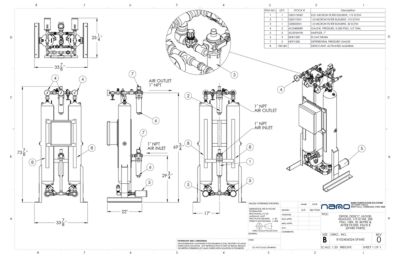

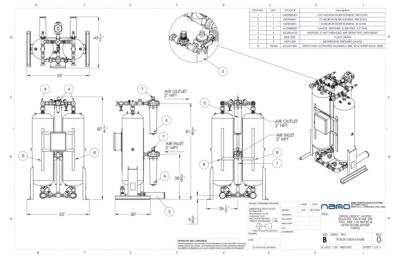

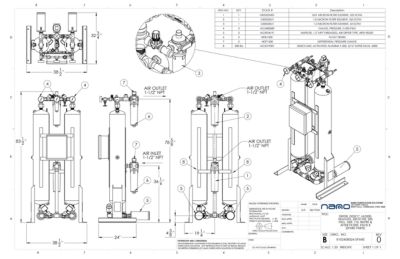

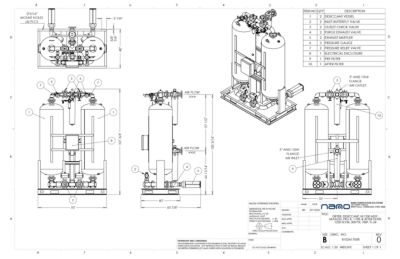

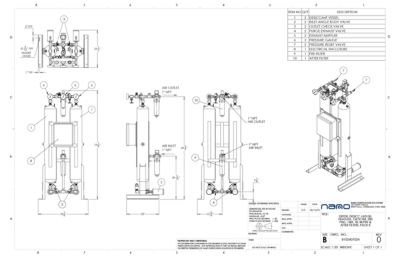

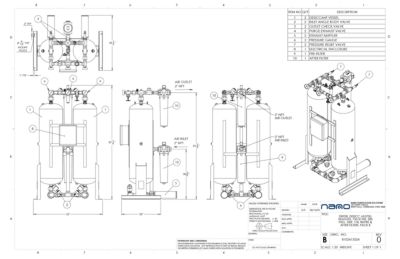

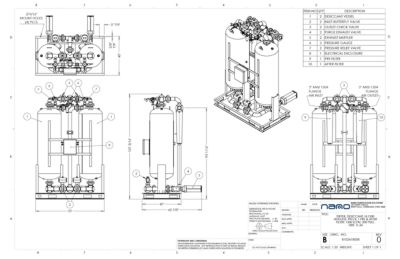

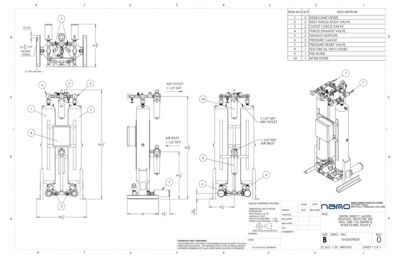

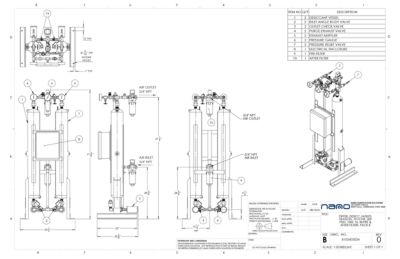

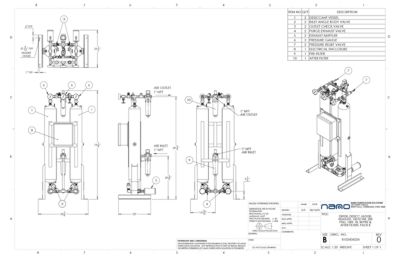

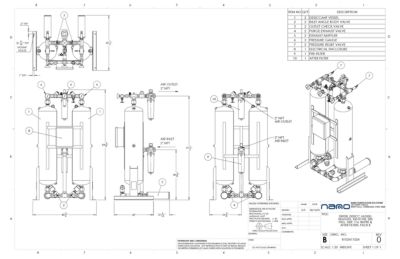

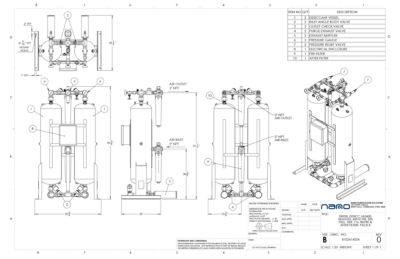

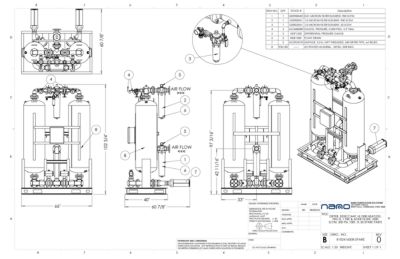

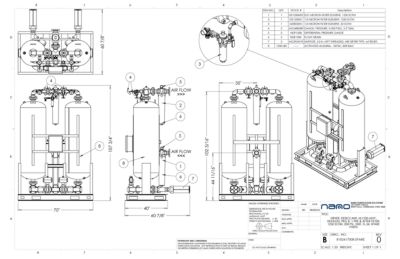

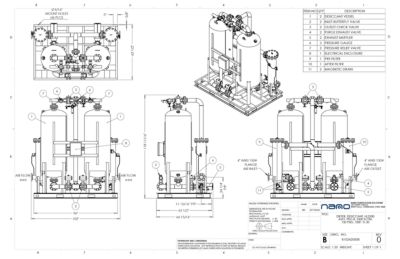

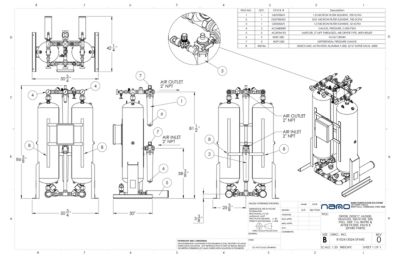

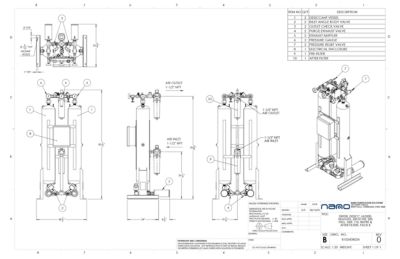

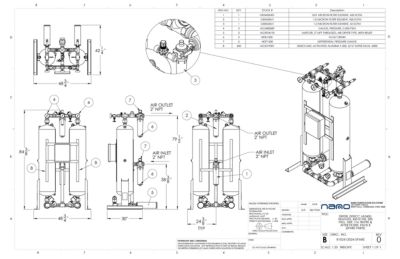

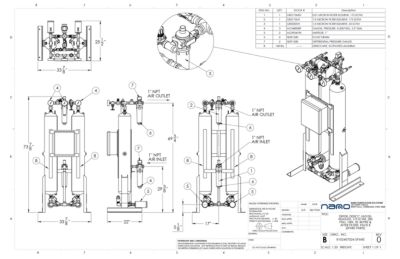

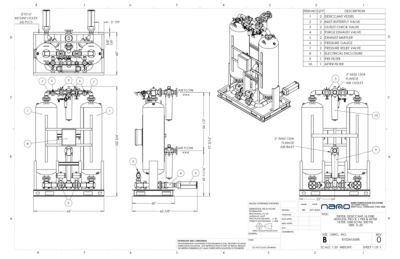

- General Arrangement Drawings
- Material Safety Data Sheets
- Spare Parts List
- With Pre & After Filters
- With Pre & After Filters
Features
Our energy-saving dew point control option provides the ultimate in energy and power savings and reduces dryer wear and tear.
ASME code pressure vessels, UL/cUL compliant, made in the USA activated alumina, lifting lugs and/or fork lift pockets
Specifications of our models
Dryer Models |
Recommended Pre & After Filtration |
Inlet & Outlet |
Rated Flow at 100 psig |
|
|---|---|---|---|---|
Prefilter |
After Filter |
NPT (F) / FLG |
scfm |
|
GFN 0085 M01 |
GFN 0085 M1 |
¾" |
70 |
|
GFN 0105 M01 |
GFN 0105 M1 |
1" |
100 |
|
GFN 0175 M01 |
GFN 0175 M1 |
1" |
150 |
|
GFN 0325 M01 |
GFN 0325 M1 |
1 ½" |
200 |
|
GFN 0325 M01 |
GFN 0325 M1 |
1 ½" |
250 |
|
GFN 0325 M01 |
GFN 0325 M1 |
1 ½" |
300 |
|
GFN 0450 M01 |
GFN 0450 M1 |
2" |
350 |
|
GFN 0450 M01 |
GFN 0450 M1 |
2" |
450 |
|
GFN 0700 M01 |
GFN 0700 M1 |
2" |
500 |
|
GFN 0700 M01 |
GFN 0700 M1 |
2" |
600 |
|
GFN 0850 M01 |
GFN 0850 M1 |
2" |
750 |
|
GFN 1250 M01 |
GFN 1250 M1 |
3" Flg |
1000 |
|
GFN 1250 M01 |
GFN 1250 M1 |
3" Flg |
1250 |
|
GFN 1500 M01 |
GFN 1500 M1 | 3" Flg |
1500 |
|
| HL2000 | NFZ 2500 M01 | NFZ 2500 M1 | 4" Flg | 2000 |
| HL2500 | NFZ 2500 M01 | NFZ 2500 M1 | 4" Flg | 2500 |
| HL3000 | NFZ 3500 M01 | NFZ 3500 M1 | 6" Flg | 3000 |
Specifications |
Standard |
Optional |
|---|---|---|
Maximum particle size (ISO class) |
class 2 |
class 1 |
Maximum water content (ISO class) |
class 2 |
- |
Minimum / design / maximum operating pressure range (HL0070 to HL1500) |
60 / 100 / 180 psig |
- |
Minimum / design / maximum operating pressure range (HL2000 to HL3000) |
60 / 100 / 135 psig |
- |
Minimum / design / maximum ambient temperature |
38 / 100 / 120°F |
20 / 100 / 120°F |
Minimum / design / maximum inlet temperature |
38 / 100 / 120°F |
- |
| Power supply requirements | 115V / 1Ph / 60Hz | 230V / 1Ph / 60Hz & 12V DC |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
