nano NDC CO2 Removal Adsorption Dryer for On-Site Purge Gas Generation

Compressed Air Dryers

On-demand CO2‑free purge gas—no cylinders required

Replace traditional purge gas cylinders with the nano range of CO2‑free air dryers, engineered to deliver a continuous, reliable supply of clean, dry, CO2‑free air for critical lab applications.

Connect nano's CO2-free air dryer to your existing compressed air line to generate purge gas in-house, cut running costs, eliminate changeouts, and avoid interruptions that can lead to downtime, recalibration, and safety concerns.

Ideal for: FTIR purge, TOC purge, NMR, GC flame gas, and laser purging

Switch to a nano NDC range of CO2-free air dryer today for a simpler, safer, more cost-effective workflow.

Request Price

Key Specs

Flow Rate

5.3 to 424 ft3/hr

Connection

⅜” PTC to 1” NPT (F)

Air Quality

CO2 levels of less than 1 ppm

Product Documentation

Osuszacze usuwające CO2 NDC

Osuszacze usuwające CO2 NDC

Broszura produktu

Filename
en-uk-ndc-co2-removal-dryer-brochure-000.pdf
Size
1 MB
Format
pdf
Obejrzyj
ISO compressed air quality standards brochure

ISO 8573-1 Compressed Air Quality Standards

Product Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View
Declaration of Conformity - EC Council Directive

NDC 0015 to 0140 Declaration of Conformity

Certificate

Filename
EC-Declaration-of-Conformity-2014-68-EU-COC-NDL-0010-0020-NDC-015-140.pdf
Size
123 KB
Format
pdf
View
Declaration of Conformity - EC Council Directive

NDC 0300 to 0600 Declaration of Conformity

Certificate

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-030-050-NBA-030-050-NDC-300-600.pdf
Size
124 KB
Format
pdf
View
Declaration of Conformity - EC Council Directive

NDC 0900 to 1200 Declaration of Conformity

Certificate

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-060-130-NDC-900-1200-NBA-060-120.pdf
Size
124 KB
Format
pdf
View
equipment electrical wiring diagram and electrical schematics

NDC 015 to 1200 CO2 Removal Dryers

Electrical Diagram

Filename
L1-CO2-electrical-wiring-schematics-CO2-removal-dryer.pdf
Size
88 KB
Format
pdf
View
ga general arrangement drawing

NDC 015 to 600 CO2 Removal Dryers

General Arrangement Drawing

Filename
L1-NDC-015-600-ga-general-arrangement-drawing-CO2-adsorption-dryer-removal.PDF
Size
363 KB
Format
pdf
View

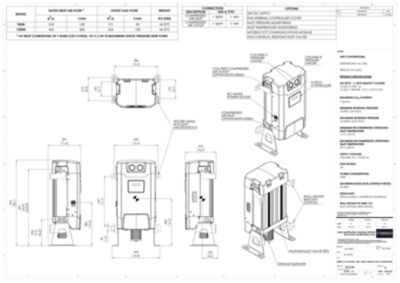

NDC 900N-1200N General Arrangement Drawing

NDC 900N to 1200N CO2 Removal Dryers

General Arrangement Drawing

Filename
PD-0126_REV_01_SERIES_2_CO2_DRYER_NDC-900N-1200N.pdf
Size
272 KB
Format
pdf
View
NDC CO2 Removal Dryers - Sylobead MS 514

NDC CO2 Removal Dryers - Sylobead MS 514

Material Safety Data Sheet

Filename
EN-L1-NDC-MSDS-oil-vapor-removal-Sylobead-MS-514-Rev 6.9.pdf
Size
437 KB
Format
pdf
View
NDC CO2 Removal Dryers

NDC CO2 Removal Dryers

service intervals

Filename
EN-US-L1-NDC-parts-guide-co2-removal-dryer-ver-000.pdf
Size
546 KB
Format
pdf
View
NDC CO2 Removal Dryers

NDC CO2 Removal Dryers

spare parts guide

Filename
EN-US-L1-NDC-parts-guide-co2-removal-dryer-ver-000.pdf
Size
546 KB
Format
pdf
View
nano user guide for NDC 015 to NDC 1200N CO2 removal dryers

NDC 015 to 1200N CO2 Removal Dryers

User Guide

Filename
17-100-0854_REV 01 L2 Series User Guide (N-Tech).pdf
Size
9 MB
Format
pdf
View

Key Benefits

These models were developed for laboratories, so these units require no bench space, can be wall mounted, and ensure quiet operation with a novel exhaust silencer.

Each model requires less than 15 minutes for maintenance due to unique factory built-in filtration and adsorption cartridges.

PLC Controller with clear text display as standard.

Technical Data By Model

Usuwanie CO2

Model suszarki

Standard GFN
Filtr wstępny

Wejście i wyjście

Przepływ powietrza na wlocie przy 7 barg

Przepływ gazu wylotowego
Nr części

BSPP

l/min

l/min

NDC 015

GFNB 0025

⅜”

2.5

1.5

NDC 050

GFNB 0025

⅜”

8.3

5.0

NDC 140

GFNB 0025

⅜”

25

15

NDC 300

GFNB 0025

⅜”

50

30

NDC 600

GFNB 0025

½”

100

60

NDC 900

GFNB 0050

1″

150

90

NDC 1200

GFNB 0050

1″

200

120

Outlet Gas Quality

Standard

Optional

Maximum CO2 content

1 ppm

-

Maximum pressure dew point

-94°F

-

Maximum particulate size

1 micron

0.01 micron

Maximum oil content

-

0.003 ppm
Dane techniczne

Projektowy zakres ciśnienia roboczego

od 4 do 12 barg

Zalecany zakres temperatur roboczych

od 1.5 do 20°C

Wymagania dotyczące zasilania

85 do 264V AC (50/60Hz)

Maksymalny poziom hałasu (podczas redukcji ciśnienia)

60 dBa

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
