Compressed Air Dryers

Lab Gas CO2 Removal

Generate your own supply of purge gas in-house with the nano L1 range of lab gas CO2 free air separators. Connect them to your existing compressed air system to deliver a continuous supply of clean, dry and CO2 free purge gas with lower running costs and without the hassle of traditional cylinders. Ideal for laboratory applications including FTIR purge, TOC purge, NMR, GC flame gas and laser purging, these systems eliminate the interruptions, recalibrations and safety concerns associated with high pressure oxygen and nitrogen cylinders.

Request Price

Key Specs:

Flow Rate

5.3 to 424 ft3/hr

Connection

⅜” PTC to 1” NPT(F)

Air Quality

CO2 levels of less than 1 ppm

Product Documentation

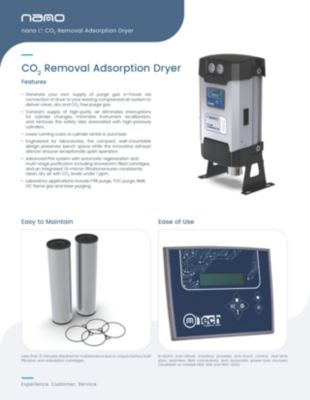

nano-purification solutions product brochure with equipment details

L1 NDC Brochure - CO2 Removal

Filename
EN-L1-brochure-co2-removal-adsorption-dryer.pdf
Size
683 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
equipment user guide product manual

L1 NDC 015-600 - User Guide

Filename
L1-NDC-015-600-user-guide-manual-co2-removal-air-dryer.pdf
Size
2 MB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NDC 0015-0140

Filename
EC-Declaration-of-Conformity-2014-68-EU-COC-NDL-0010-0020-NDC-015-140.pdf
Size
123 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NDC 0300-0600

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-030-050-NBA-030-050-NDC-300-600.pdf
Size
124 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NDC 0900-1200

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-060-130-NDC-900-1200-NBA-060-120.pdf
Size
124 KB
Format
application/pdf
View

L1 NDC 015-600 - GA Drawing

ga general arrangement drawing

L1 NDC 900-1200 - GA Drawing

Filename
L1-NDC-900-1200-ga-general-arrangement-drawing-CO2-adsorption-dryer-removal.PDF
Size
709 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

L1 NDC - Electrical Diagram

Filename
L1-CO2-electrical-wiring-schematics-CO2-removal-dryer.pdf
Size
89 KB
Format
application/pdf
View

Features

These models were developed for laboratories, so these units require no bench space, can be wall mounted, and ensure quiet operation with a novel exhaust silencer

Each model requires less than 15 minutes for maintenance due to unique factory built-in filtration and adsorption cartridges

PLC Controller with clear text display as standard

Specifications of our models

Dryer Model

Included

Pre-Filtration (3)

Optional

Pre-Filtration (4)

Service Kit

Inlet & Outlet (1)

Inlet Air

Flow (2)

Outlet Gas

Flow (2)

Part No.

NPT (f)

ft3/h

l/min

ft3/hr

l/min

NDC 015-F

NF0025M01

NF0025AC

NDK 011-F

3/8” PTC

5.3

2.5

3.2

1.5

NDC 050-F

NF0025M01

NF0025AC

NDK 011-F

3/8” PTC

17.6

8.3

10.6

5.0

NDC 140-F

NF0025M01

NF0025AC

NDK 021-F

3/8” PTC

53

25

32

15

NDC 300-F

NF0025M01

NF0025AC

NDK 031-F

3/8” PTC

106

50

64

30

NDC 600-F

NF0030M01

NF0030AC

NDK 051-F

½” PTC

212

100

127

60

NDC 900-F

NF0090M01

NF0090AC

NDK 061-F

1”

318

150

191

90

NDC 1200-F

NF0090M01

NF0090AC

NDK 071-F

1”

424

200

254

120

Outlet Gas Quality

Standard

Optional

Maximum CO2 content

1 ppm

-

Maximum pressure dew point

-94°F /  -70°C

-

Maximum particulate size

1 micron

0.01 micron(5)

Maximum oil content

-

0.003 ppm (4)

Specifications

NDC 015-F to NDC 300-F

NDC 600-F to NDC 1200-F

Design operating pressure range

58 to 145 psig / 4 to 10 bar

58 to 174 psig / 4 to 12 bar

Recommended operating temperature range

59 to 86°F / 15 to 30°C

Power supply requirements

50 or 60 Hz, 100 to 240 VAC

Maximum noise level (during depressurization)

60 dBa

Manufacturing quality standards

ISO 9001.2015 & CE

Warranty

1 year

(1) list price includes a nano M01 high efficiency coalescing prefilter as standard

(2) NDC 015 to NDC 600 have push to connect fittings on the inlet and outlet. All other models have NPT threaded connections

(3) at inlet conditions of 100 psig and 68°F and up to 375 ppm CO2. For all other conditions contact [email protected] for sizing assistance

(4) optional 0.01 micron post filter

(5) optional AC activated carbon filter at the inlet for the removal of hydrocarbon vapors

(6) NDC 900 to NDC 1200 - noise level is 80 dBa

(6) tower pressure gauges as standard on NDC 140 and above. Applies to serial numbers 20-H-xxxx-xx and above
