Compressed Air Dryers

Lab Gas CO2 Removal

Say goodbye to the hassle of traditional purge gas cylinders with the revolutionary nano range of lab gas CO2-free air dryers. These dryers are designed to deliver a continuous and affordable supply of clean, dry, and CO2-free purge gas to your laboratory applications, including FTIR purge, TOC purge, NMR, GC flame gas, and laser purging. Connecting the nano range to your existing compressed air system allows you to generate your purge gas supply, reducing running costs and eliminating interruptions, recalibrations, and safety concerns. Switch to the nano range of CO2-free air dryers today and experience a seamless, efficient, and cost-effective workflow.

Key Specs:

Flow Rate

5.3 to 424 ft3/hr

Connection

⅜” PTC to 1” NPT(F)

Air Quality

CO2 levels of less than 1 ppm

Product Documentation

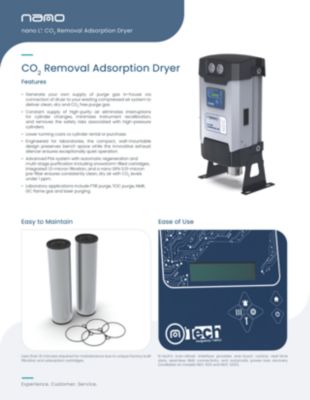

nano-purification solutions product brochure with equipment details

NDC CO2 Removal Dryers

Product Brochure

Filename
EN-L1-brochure-co2-removal-adsorption-dryer.pdf
Size
683 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Product Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View
Declaration of Conformity - EC Council Directive

NDC 0015-0140 Declaration of Conformity

Certificate

Filename
EC-Declaration-of-Conformity-2014-68-EU-COC-NDL-0010-0020-NDC-015-140.pdf
Size
123 KB
Format
pdf
View
Declaration of Conformity - EC Council Directive

NDC 0300-0600 Declaration of Conformity

Certificate

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-030-050-NBA-030-050-NDC-300-600.pdf
Size
124 KB
Format
pdf
View
Declaration of Conformity - EC Council Directive

NDC 0900-1200 Declaration of Conformity

Certificate

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-060-130-NDC-900-1200-NBA-060-120.pdf
Size
124 KB
Format
pdf
View
equipment electrical wiring diagram and electrical schematics

NDC 015-1200 CO2 Removal Dryers

Electrical Diagram

Filename
L1-CO2-electrical-wiring-schematics-CO2-removal-dryer.pdf
Size
89 KB
Format
pdf
View

NDC 015-600 CO2 Removal Dryers

General Arrangement Drawing

ga general arrangement drawing

NDC 900-1200 CO2 Removal Dryers

General Arrangement Drawing

Filename
L1-NDC-900-1200-ga-general-arrangement-drawing-CO2-adsorption-dryer-removal.PDF
Size
709 KB
Format
pdf
View

NDC CO2 Removal Dryer Sylobead MS 514

Material Safety Data Sheet

Filename
EN-L1-NDC-MSDS-oil-vapor-removal-Sylobead-MS-514-Rev 6.9.pdf
Size
432 KB
Format
pdf
View
NDC Lab Gas CO2 Removal Dryers User Guide

NDC 015-1200 Lab Gas CO2 Removal Dryers

User Guide

Filename
L1-NDC-015-1200-user-guide-co2-removal-dryers.pdf
Size
3 MB
Format
pdf
View

Features

These models were developed for laboratories, so these units require no bench space, can be wall mounted, and ensure quiet operation with a novel exhaust silencer.

Each model requires less than 15 minutes for maintenance due to unique factory built-in filtration and adsorption cartridges.

PLC Controller with clear text display as standard.

Specifications of our models

Dryer Model

Standard
Prefiltration

Optional
Prefiltration

Service Kit

Inlet & Outlet

Inlet Air Flow at 100 psig

Outlet Gas Flow

Part No. Part No.

Part No.

NPT (f)

ft3/h

ft3/hr

NDC 015-F

NF0025M01

NF0025AC

NDK 011-F

3/8” PTC

5.3

3.2

NDC 050-F

NF0025M01

NF0025AC

NDK 011-F

3/8” PTC

17.6

10.6

NDC 140-F

NF0025M01

NF0025AC

NDK 021-F

3/8” PTC

53

32

NDC 300-F

NF0025M01

NF0025AC

NDK 031-F

3/8” PTC

106

64

NDC 600-F

NF0030M01

NF0030AC

NDK 051-F

½” PTC

212

127

NDC 900-F

NF0090M01

NF0090AC

NDK 061-F

1”

318

191

NDC 1200-F

NF0090M01

NF0090AC

NDK 071-F

1”

424

254


Outlet Gas Quality

Standard

Optional

Maximum CO2 content

1 ppm

-

Maximum pressure dew point

-94°F

-

Maximum particulate size

1 micron

0.01 micron

Maximum oil content

-

0.003 ppm


Specifications

NDC 015-F to NDC 300-F

NDC 600-F to NDC 1200-F

Design operating pressure range

58 to 145 psig

58 to 174 psig

Recommended operating temperature range

59 to 86°F

Power supply requirements

50 or 60 Hz, 100 to 240 VAC

Maximum noise level (during depressurization)

60 dBa

Manufacturing quality standards

ISO 9001.2015 & CE

Warranty

1 year

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
