Compressed Air Dryers

Lab Gas CO2 Removal

Say goodbye to the hassle of traditional purge gas cylinders with the revolutionary nano range of lab gas CO2-free air dryers. These dryers are designed to deliver a continuous and affordable supply of clean, dry, and CO2-free purge gas to your laboratory applications, including FTIR purge, TOC purge, NMR, GC flame gas, and laser purging. Connecting the nano range to your existing compressed air system allows you to generate your purge gas supply, reducing running costs and eliminating interruptions, recalibrations, and safety concerns. Switch to the nano range of CO2-free air dryers today and experience a seamless, efficient, and cost-effective workflow.

Key Specs:

Flow Rate

2.5 to 200 I/min

Connection

⅜” to 1” BSPP

Air Quality

CO2 levels of less than 1 ppm

Product Documentation

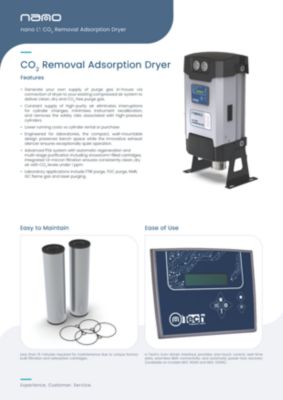

nano-purification solutions product brochure with equipment details

NDC CO2 Removal Dryers

Product Brochure

Filename
EN-L1-brochure-co2-removal-adsorption-dryer.pdf
Size
683 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Product Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View
Declaration of Conformity - EC Council Directive

NDC 0015-0140 Declaration of Conformity

Certificate

Filename
EC-Declaration-of-Conformity-2014-68-EU-COC-NDL-0010-0020-NDC-015-140.pdf
Size
123 KB
Format
pdf
View
Declaration of Conformity - EC Council Directive

NDC 0300-0600 Declaration of Conformity

Certificate

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-030-050-NBA-030-050-NDC-300-600.pdf
Size
124 KB
Format
pdf
View
Declaration of Conformity - EC Council Directive

NDC 0900-1200 Declaration of Conformity

Certificate

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-060-130-NDC-900-1200-NBA-060-120.pdf
Size
124 KB
Format
pdf
View
equipment electrical wiring diagram and electrical schematics

NDC 015-1200 CO2 Removal Dryers

Electrical Diagram

Filename
L1-CO2-electrical-wiring-schematics-CO2-removal-dryer.pdf
Size
89 KB
Format
pdf
View

NDC 015-600 CO2 Removal Dryers

General Arrangement Drawing

ga general arrangement drawing

NDC 900-1200 CO2 Removal Dryers

General Arrangement Drawing

Filename
L1-NDC-900-1200-ga-general-arrangement-drawing-CO2-adsorption-dryer-removal.PDF
Size
709 KB
Format
pdf
View

NDC CO2 Removal Dryer Sylobead MS 514

Material Safety Data Sheet

Filename
EN-L1-NDC-MSDS-oil-vapor-removal-Sylobead-MS-514-Rev 6.9.pdf
Size
432 KB
Format
pdf
View
NDC Lab Gas CO2 Removal Dryers User Guide

NDC 015-1200 Lab Gas CO2 Removal Dryers

User Guide

Filename
L1-NDC-015-1200-user-guide-co2-removal-dryers.pdf
Size
3 MB
Format
pdf
View

Features

These models were developed for laboratories, so these units require no bench space, can be wall mounted, and ensure quiet operation with a novel exhaust silencer.

Each model requires less than 15 minutes for maintenance due to unique factory built-in filtration and adsorption cartridges.

PLC Controller with clear text display as standard.

Specifications of our models

Dryer Model

Recommended Filtration

Inlet & Outlet

Inlet Air Flow at 7 barg Outlet Gas FLow

Part no.

BSPP

l/min

l/min

NDC 015

GFNB 0025

3/8”

2.5

1.5

NDC 050

GFNB 0025

⅜”

8.3

5.0

NDC 140

GFNB 0025

3/8”

25

15

NDC 300

GFNB 0025

⅜”

50

30

NDC 600

GFNB 0025

½”

100

60

NDC 900

GFNB 0050

1”

150

90

NDC 1200

GFNB 0050

1”

200

120



Outlet Gas Quality

Standard

Optional

Maximum CO2 content

1 ppm

-

Maximum pressure dew point

-70°C

-

Maximum particulate size

1 micron

0.01 micron

Maximum oil content

-

0.003 ppm



Specifications

Design operating pressure range

4 to 12 barg

Recommended operating temperature range

1.5 to 20°C

Power supply requirements

85 to 264V AC (50/60Hz)

Maximum noise level (during purge)

60 dBa

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
