Compressed Air & Gas Filters

High Pressure Stainless Steel Filters

Introducing nano's range of high-pressure stainless steel filters, the perfect solution for a wide range of demanding applications. Whether you're in the chemical, food and beverage, manufacturing, military, oil and gas, or pharmaceutical industry, our comprehensive range of filters is designed to meet your needs. With pressure ratings of up to 5000 psig, our filters are built to withstand even the most challenging conditions. Moreover, our high-pressure filtration models are manufactured in an ISO 9001-approved facility and tested according to ISO 8573-1:2010 standards so that you can be sure of their quality and reliability. Choose the nano range of high-pressure stainless steel filters today and experience the benefits of high-quality filtration for your business.

Key Specs:

Flow Rate

28 to 2000 scfm

Connection

¼” to 2” NPT

Filtration

25, 5, 1 & 0.01 micron &, AC

Product Documentation

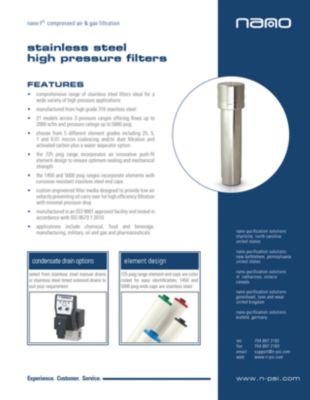

Stainless Steel High Pressure Filters Brochure

High Pressure Stainless Steel Filters

Product Brochure

Filename
EN-F4-N50Ss-N100SS-N350SS-brochure-stainless-steel-high-pressure-filters.pdf
Size
509 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View

Features

Our filter media is custom-engineered to prevent oil carryover by providing high-efficiency filtration with minimal pressure drop, achieved through low air velocity.

Our quality models are manufactured from high grade 316 stainless steel.

Stainless steel high-pressure manual or stainless steel high-pressure timed solenoid drains are available to suit your condensate management requirements.



Specifications of our models

Filter Model

Replacement Element

Inlet & Outlet

Rated Flow at 725, 1450 or 5000 psig

Part No.

NPT

scfm

N50SS (725 psig)

N50SS 0060 (grade)

E50SS 0060 (grade)

¼”

60

N50SS 0120 (grade)

E50SS 0120 (grade)

⅜”

120

N50SS 0200 (grade)

E50SS 0200 (grade)

½”

200

N50SS 0300 (grade)

E50SS 0300 (grade)

¾”

300

N50SS 0600 (grade)

E50SS 0600 (grade)

1”

600

N50SS 1000 (grade)

E50SS 1200 (grade)

1 ½”

1000

N50SS 1200 (grade)

E50SS 1200 (grade)

2”

1200

N50SS 2000 (grade)

E50SS 2000 (grade)

2”

2000

N100SS (1450 psig)

N100SS 0060 (grade)

E100SS 0060 (grade)

¼”

60

N100SS 0185 (grade)

E100SS 0185 (grade)

½”

185

N100SS 0270 (grade)

E100SS 0270 (grade)

¾”

270

N100SS 0400 (grade)

E100SS 0400 (grade)

1”

400

N100SS 0700 (grade)

E100SS 0700 (grade)

1”

700

N100SS 1000 (grade)

E100SS 1000 (grade)

1 ½”

1000

N100SS 2000 (grade)

E100SS 2000 (grade)

2”

2000

N350SS (5000 psig)

N350SS 0028 (grade)

E350SS 0028 (grade)

¼”

28

N350SS 0067 (grade)

E350SS 0067 (grade)

¼”

67

N350SS 0150 (grade)

E350SS 0150 (grade)

½”

150

N350SS 0300 (grade)

E350SS 0300 (grade)

¾”

300

N350SS 0445 (grade)

E350SS 0445 (grade)

1”

445

N350SS 0775 (grade)

E350SS 0775 (grade)

1”

775


Specifications

NB50SS

N100SS

N350SS

Design operating pressure

0 to  725 psig

0 to 1450 psig

0 to 5000 psig

Condensate drain (included)

manual ball valve

Housing material

315 stainless steel


Element Performance

M25

M5

M1

M01

AC

Particle Removal (microns)

25

5

1

0.01

-

Max Oil Carry Over at 68°F

10 ppm

5 ppm

0.1 ppm

0.01 ppm

0.003 ppm

Recommended Operating Temp Range



35 to 77°F

Design Operating Temperature Range



35 to 122°F

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
