A high pressure stainless steel filter stands with its internal element, which lays in front

Compressed Air & Gas Filters

High Pressure Stainless Steel Filters

The nano F4 range of high pressure stainless steel filters is a comprehensive range of stainless steel filters ideal for a wide variety of high pressure applications, including chemical, food and beverage, manufacturing, military, oil and gas and pharmaceuticals. With pressure ratings of up to 5000 psig, our high pressure filtration models are manufactured in an ISO 9001 approved facility and tested in accordance with ISO 8573-1:2010.

Key Specs:

Flow Rate

28 to 2000 scfm

Connection

¼” to 2” NPT

Filtration

25, 5, 1 & 0.01 micron &, AC & WS

nano-purification solutions product brochure with equipment details

F4 N50SS/N100SS/N350SS Brochure - High Pressure Stainless Steel Filters

Filename
EN-F4-N50SS-N100SS-N350SS-brochure-stainless-steel-high-pressure-filters.pdf
Size
510 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View

Features

Custom engineered filter media designed to provide low air velocity preventing oil carry over for high efficiency filtration with minimal pressure drop

Our quality models are manufactured from high grade 316 stainless steel

Stainless steel high pressure manual or stainless steel high pressure timed solenoid drains available to suit your condensate management requirements



Specifications of our models

Filter

Model

Replacement Element

Part No.

Inlet & Outlet


Rated

Flow (1)



NPT

scfm

Nm3/h

N50SS (725 psig)

N50SS 0060 (grade)

E50SS 0060 (grade)

¼”

60

100

N50SS 0120 (grade)

E50SS 0120 (grade)

⅜”

120

200

N50SS 0200 (grade)

E50SS 0200 (grade)

½”

200

340

N50SS 0300 (grade)

E50SS 0300 (grade)

¾”

300

500

N50SS 0600 (grade)

E50SS 0600 (grade)

1”

600

1000

N50SS 1000 (grade)

E50SS 1200 (grade)

1 ½”

1000

1700

N50SS 1200 (grade)

E50SS 1200 (grade)

2”

1200

2040

N50SS 2000 (grade)

E50SS 2000 (grade)

2”

2000

3400

N100SS (1450 psig)

N100SS 0060 (grade)

E100SS 0060 (grade)

¼”

60

100

N100SS 0185 (grade)

E100SS 0185 (grade)

½”

185

315

N100SS 0270 (grade)

E100SS 0270 (grade)

¾”

270

460

N100SS 0400 (grade)

E100SS 0400 (grade)

1”

400

680

N100SS 0700 (grade)

E100SS 0700 (grade)

1”

700

1200

N100SS 1000 (grade)

E100SS 1000 (grade)

1 ½”

1000

1700

N100SS 2000 (grade)

E100SS 2000 (grade)

2”

2000

3400

N350SS (5000 psig)

N350SS 0028 (grade)

E350SS 0028 (grade)

¼”

28

48

N350SS 0067 (grade)

E350SS 0067 (grade)

¼”

67

111

N350SS 0150 (grade)

E350SS 0150 (grade)

½”

150

255

N350SS 0300 (grade)

E350SS 0300 (grade)

¾”

300

510

N350SS 0445 (grade)

E350SS 0445 (grade)

1”

445

750

N350SS 0775 (grade)

E350SS 0775 (grade)

1”

775

1330

Element Performance

WS (2)

M25

M5

M1

M01

AC (3)

Particle Removal (microns)

-

25

5

1

0.01

-

Max Oil Carry Over at 68°F (ppm or mg/m3)

25

10

5

0.1

0.01

0.003

Recommended Operating Temp Range

35 to 212°F / 2 to 100°C

35 to 77°F / 2 to 25°C

Design Operating Temperature Range

35 to 248°F / 2 to 100°C

35 to 122°F / 2 to 52°C

(1) at 725, 1450 or 5000 psig as applicable. For all other pressures, refer to the pressure correction factor table above

(2) not available for models N50SS 0060, N50SS 2000, N100SS 0700, N100SS 1000, N350SS 0150, N350SS 0300,

N350SS 0445 and N350SS 0775

(3) install with air flow from inside to outside for coalescing and from outside to inside for dry dust filtration

(4) differential pressure indicator not included

(5) technical specifications subject to change without notice. Direct inquiries to [email protected] or contact 704.897.2182

Related Products

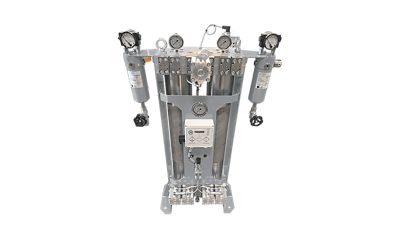

Compact High Pressure Desiccant Dryers
