Flow Rate
250 to 7750 scfm
Connection
1 ½” NPT(F) to 8” Flg
Air Quality
ISO 8573.1:2010 Class 1.2.2
Product Documentation

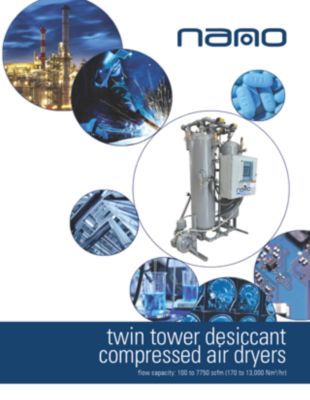

- Brochures

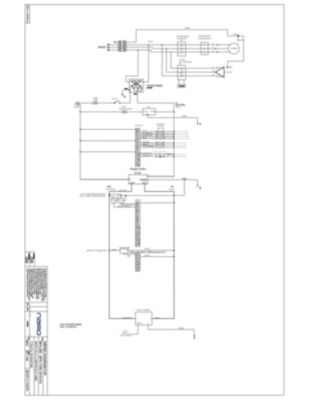

- Electrical Diagram

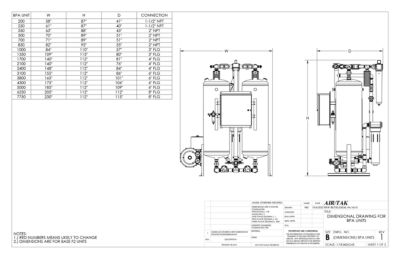

- GA Drawing

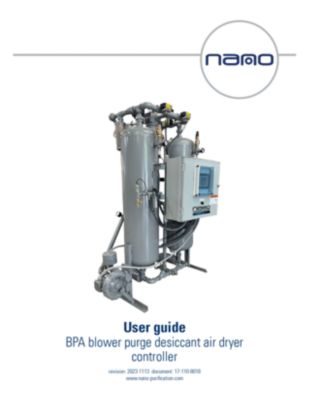

- User Guides
Specifications of our models
Dryer Models |
Recommended Pre & After Filtration |
Inlet & Outlet |
Rated Flow at 100 psig |
Heater |
|
|---|---|---|---|---|---|
Pre-Filter |
After-Filter |
NPT (F)/FLG |
scfm |
kW |
|
GF 0325 M01 |
NHT 0300 M1 |
1 ½" |
200 |
6 |
|
GF 0450 M01 |
NHT 0450 M1 |
2" |
250 |
6 |
|
GF 0700 M01 |
NHT 0650 M1 |
2" |
350 |
9 |
|
GF 0700 M01 |
NHT 1000 M1 |
2" |
500 |
12.5 |
|
GF 0850 M01 |
NHT 1000 M1 |
2" |
700 |
12.5 |
|
GF 1250 M01 |
NHT 1000 M1 |
3" |
850 |
15 |
|
GF 1500 M01 |
NHT 1600 M1 |
3" |
1000 |
18 |
|
NFZ 2500 M01 |
NFZ 2500 M1HT |
4" |
1350 |
25 |
|
NFZ 2500 M01 |
NFZ 2500 M1HT |
4" Flg |
1700 |
30 |
|
NFZ 2500 M01 |
NFZ 2500 M1HT |
4" Flg |
2100 |
38 |
|
NFZ 3500 M01 |
NFZ 3500 M1HT |
6" Flg |
2400 |
50 |
|
NFZ 4000 M01 |
NFZ 4000 M1HT |
6" Flg |
3100 |
60 |
|
NFZ 5000 M01 |
NFZ 5000 M1HT |
6" Flg |
3800 |
85 |
|
NFZ 5000 M01 |
NFZ 5000 M1HT |
6" Flg |
4300 |
85 |
|
NFZ 7500 M01 |
NFZ 7500 M1HT |
8" Flg |
5000 |
100 |
|
BPA 7750 |
NFZ 8500 M01 |
NFZ 8500 M1HT |
8" Flg |
6250 |
120 |
Specifications |
Standard |
Optional |
|---|---|---|
Maximum particle size (ISO class) |
class 2 (1 micron) |
class 1 (0.01 micron) |
Maximum water content (ISO class) |
class 2 (-40°F pdp) |
- |
Minimum / design / maximum operating pressure range |
80 psig / 100 psig / 150 psig | 58 to 250 psig |
Minimum / design / maximum ambient temperature |
38°F / 100°F/ 120°F | - |
Minimum / design / maximum inlet temperature |
38°F / 100°F/ 120°F | - |
Power supply requirements |
460 VAC / 60 Hz |
575V / 60 Hz or 380 VAC / 50 Hz |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
