Durable stainless steel butterfly valves with actuators ensure long-lasting, reliable performance and are built to withstand high regeneration air temperatures.
Key Specs:
Flow Rate
1188 to 10,800 Nm3/hr
Connection
80 to 150 50Hz: G/PN16
Air Quality
ISO 8573.1:2010
Product Documentation
- Brochures
Features
Uses ambient atmospheric air for regeneration, ensuring efficient operation. Built with rugged construction for durability and easy maintenance, with an optional air intake filter available for added protection.
Save even more energy with the zero purge option. The addition of a cooling loop in the blower circuit allows the dryer to cool the desiccant bed with ambient air without adding moisture to the bed in the process. This eliminates the requirement for process air to be used saving compressor power and increasing the effective capacity of the system.
Specifications of Our Models

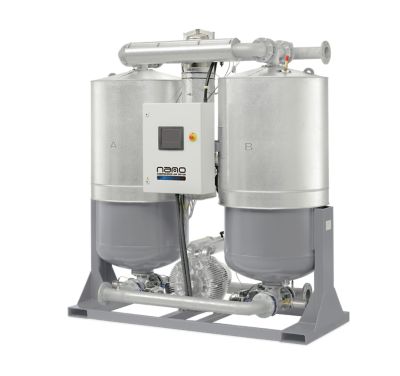

Blower Purge Desiccant Dryer Model |
Inlet & Outlet |
Rated Flow at 7 bar(e) |
|---|---|---|
50 Hz: G/PN16 |
Nm3/hr |
|
| BP 330 | 80 |
1188 |
BP 400 |
80 |
1440 |
BP 550 |
80 |
1980 |
BP 850 |
100 |
3060 |
BP 1100 |
100 |
3960 |
BP 1400 |
150 |
5040 |
BP 1800 |
150 |
6480 |
BP 2200 |
150 |
7920 |
BP 3000 |
150 |
10800 |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
