The durable stainless steel design ensures a long service life, while nickel plating on the heater pipe protects against corrosion. The heater is housed within an insulated pipe to maximise energy efficiency, and to minimise heat loss further, insulated vessels are available as an option for -40°C dryers and come standard on the -70°C model.
Key Specs:
Flow Rate
1188 to 10,800 Nm3/hr
Connection
80 to 200 50 Hz: G/PN 16
air quality
ISO 8573.1:2010 Class 1.2.2 or 1.1.2
Product Documentation
- Brochures
Features
Housed in a genuine IP54-rated cubicle to enhance safety and simplify cabling, the system continuously monitors all key parameters to ensure reliable and efficient installation performance.
The unit offers easy handling with a standard frame featuring forklift slots and lifting eyes, improved efficiency through wide vessels that ensure low air speed and longer contact time, and a reduced overall height thanks to integrated flanges in the top and bottom vessel shells.
Specifications of Our Models

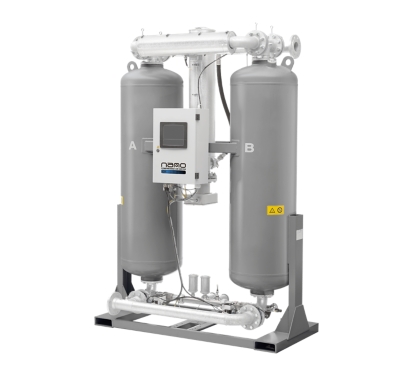

Externally Heated Desiccant Dryer Model |
Inlet & Outlet |
Rated Flow at 7 bar(e) |
|---|---|---|
50 Hz: G/PN16 |
Nm3/hr |
|
| EH 330 | 80 |
1188 |
EH 400 |
80 |
1440 |
| EH 550 | 80 |
1980 |
EH 850 |
100 |
3060 |
| EH 1100 | 100 |
3960 |
| EH 1400 | 150 |
5040 |
| EH 1800 | 150 |
6480 |
| EH 2200 | 150 |
7920 |
| EH 3000 | 200 |
10800 |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
