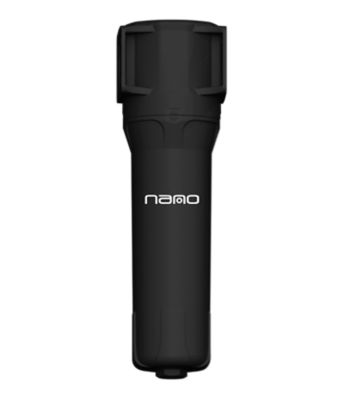

Custom engineered hydrophobic and oleophobic borosilicate glass microfiber media repels oil and water for high efficiency filtration with minimal pressure drop
Key Specs:
Flow Rate
161 to 3203 Nm3/h
Connection
¼” to 2” BSPP
Filtration
1 & 0.01 micron, AC
Product Documentation
- General Arrangement Drawings

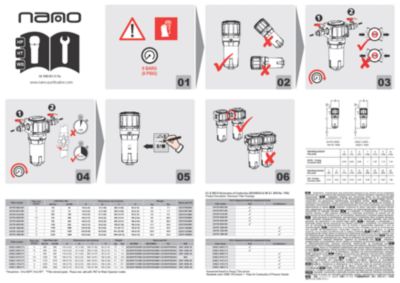

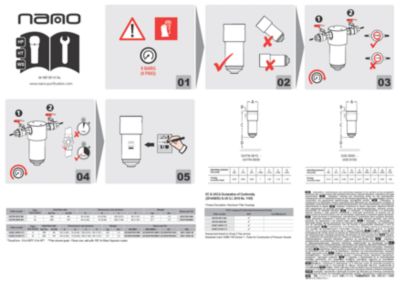

- User Guides
Features
Our design incorporates an innovative push-fit element design with dual o-ring seals to ensure optimum sealing and mechanical strength
Robust design with internal/external stainless steel support cores and glass filled nylon end caps
Specifications of our models
Filter Model |
Replacement Element |
Inlet & Outlet |
Rated Flow at 50 barg |
|---|---|---|---|
Part No. |
BSPP |
Nm3/h |
|
G50B 0095 (grade) |
GE50HP 0015 (grade) | ¼” |
161 |
G50B 0150 (grade) |
GE50HP 0030 (grade) | ⅜” |
255 |
G50B 0265 (grade) |
GE50HP 0265 (grade) |
½” |
450 |
G50B 0325 (grade) |
GE50HP 0325 (grade) | ¾” |
552 |
G50B 0490 (grade) |
GE50HP 0490 (grade) | 1” |
833 |
G50B 0735 (grade) |
GE50HP 0735 (grade) | 1½” |
1249 |
G50B 1015 (grade) |
GE50HP 1135 (grade) | 1½” |
1724 |
G50B 1135 (grade) |
GE50HP 1135 (grade) | 2” |
1928 |
G50B 1885 (grade) |
GE50HP 1885 (grade) | 2” |
3203 |
Specifications |
|
|---|---|
| Design operating pressure range |
0 to 50 barg |
Condensate drain (included) |
manual ball valve (grades WS/M1/M01) ¼” connection |
Filter housing material |
machined & die-cast aluminium |
Element Performance |
WS |
M1 |
M01 |
AC |
|---|---|---|---|---|
Particle removal |
- |
1 micron |
0.01 micron |
- |
Max oil carryover at 20°C |
25 mg/m3 |
0.1 mg/m3 |
0.01 mg/m3 |
0.003 mg/m3 |
Recommended operating temp range |
1.7 to 100°C |
31.7 to 100°C |
1.7 to 100°C |
1.7 to 25°C |
Design operating temperature range |
1.7 to 120°C |
1.7 to 120°C |
1.7 to 120°C |
1.7 to 120°C |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
