Condensate Management

Zero Air Loss Drains

nano provides a wide range of condensate drains to support virtually any industrial compressed air or gas application. Our full range of zero air loss condensate drains protect your downstream equipment by effectively removing harmful liquid condensate such as water, oil and other liquids.  Designed for zero compressed air waste, the drains are energy efficient opening only when liquid waste is present. Compact with minimal space required, the drains are easy to clean and maintain.

Key Specs:

Flow Rate

Flows to fit any system

Connection

¼” NPT (F) to ½” NPT

Maximum Pressure

230 psig  / 16 barg max pressure

Product Documentation

nano-purification solutions product brochure with equipment details

ND Brochure - Condensate Drains

Filename
EN-ND-brochure-condensate drains.pdf
Size
243 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
NMD 6 zero air loss drain user guide

NMD 6 - User Guide

Filename
ND-NMD-6-user-guide-zero-air-loss-drains.pdf
Size
744 KB
Format
application/pdf
View
NMD 12 zero air loss drain user guide

NMD 12 - User Guide

Filename
ND-NMD-12-user-guide-zero-air-loss-drains.pdf
Size
812 KB
Format
application/pdf
View
The nano user guide for zero air loss drains 4L-350L

NED 4L-350L - User Guide

Filename
ND-NED-4L-350L-user-guide-zero-air-loss-drains.pdf
Size
5 MB
Format
application/pdf
View
Zero air loss drain NED-LC 4 ga drawing

NED-LC 4 - GA Drawing

Filename
ND-NED-LC-4-ga-general-arrangement-drawing-zero-air-loss-drains-ED-03.pdf
Size
264 KB
Format
application/pdf
View
Zero air loss drain NED-LC 6 ga drawing

NED-LC 6 - GA Drawing

Filename
ND-NED-LC-6-ga-general-arrangement-drawing-zero-air-loss-drains-ED-03.pdf
Size
249 KB
Format
application/pdf
View
Zero air loss drain NED-LC 8 ga drawing

NED-LC 8 - GA Drawing

Filename
ND-NED-LC-8-ga-general-arrangement-drawing-zero-air-loss-drains-ED-02.pdf
Size
120 KB
Format
application/pdf
View
The NED 12 zero air loss drain general arrangement drawing

NED 12 - GA Drawing

Filename
ND-NED-12-ga-general-arrangement-drawing-zero-air-loss-drains.pdf
Size
236 KB
Format
application/pdf
View
Zero air loss drain NED-LC 16 ga drawing

NED-LC 16 - GA Drawing

Filename
ND-NED-LC-16-ga-general-arrangement-drawing-zero-air-loss-drains-ED-02.pdf
Size
120 KB
Format
application/pdf
View
Zero air loss drain NED-LC 160 ga drawing

NED-LC 160 - GA Drawing

Filename
ND-NED-LC-160-ga-general-arrangement-drawing-zero-air-loss-drains-ED-02.pdf
Size
134 KB
Format
application/pdf
View
Zero air loss drain NED-LC 350 ga drawing

NED-LC 350 - GA Drawing

Filename
ND-NED-LC-350-ga-general-arrangement-drawing-zero-air-loss-drains-ED-02.pdf
Size
135 KB
Format
application/pdf
View
NMD general arrangement drawing

NMD - GA Drawing

Filename
ND-NMD-ga-general-arrangement-drawing-zero-air-loss-drains.pdf
Size
194 KB
Format
application/pdf
View

Features

Types includes float, magnetic, and electronic level controlled

NMD & TD for use in remote or classified area applications

NED & NHD includes power cord and alarm capabilities

Specifications of our models

Drain Model

Inlet

Outlet

Pressure Rating

Supply Voltage

NPT

NPT

psig / barg

1ph/60hz

NMD Magnetic Zero Air Loss

NMD 6

½” (f)

1/8” (f)

230 / 16

230V

NMD 12

½” (f)

1/8” (f)

230 / 16

230V

NED-LC Level Controlled Zero Air Loss

NED 4L N12 115

½” (f) x2

3/8” (f)

230 / 16

115V

NED 8LC N12 115

½” (f) x2

3/8” (f)

230 / 16

115V

NED 16LC N12 115

½” (f) x2

3/8” (f)

230 / 16

115V

NED 40LC N12 115

½” (f) x2

3/8” (f)

230 / 16

115V

NED 160LC N12 115

½” (G) x2

3/8” (f)

230 / 16

115V

NED Automatic Float

NED 12

½” (f)

½” (f)

290 / 20

-

TD Pneumatic Zero Air Loss

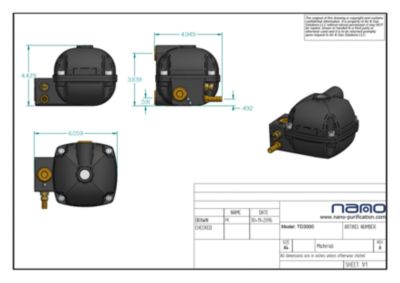

TD 3000

½” (f) x3

¼” (f)

230 / 16

-

NHD Heated Zero Air Loss

NHD 12

½” (f)

¼” (f)

230 / 16

115V

Specifications

NED

NED-LC

NMD

TD

Material of construction

aluminum

aluminum (3)

aluminum

aluminum

Isolation valve

-

-

-

-

Strainer

-

integral

-

inegral

Timer

-

-

-

-

Anti air lock connector

included

-

included

-

6 ft power cord

-

included

-

-

(1) inlet connection fits both 1⁄2” (f) and 1⁄4” (m) threads

(2) the NMD 6 is a smaller, more compact version of the NMD 12 and is painted black

(3) NED4L is made from glass reinforced plastic. All other NED-LC models are aluminum

(4) 115V and 230V models only. 24V models include unwired DIN connector

(5) technical specifications subject to change without notice.
