Refrigerated Compressed Air Dryers

Cycling Dryers

With savings up to 80% over a traditional dryer, the unique dry thermal mass in the nano NXC cycling refrigerated compressed air dryer takes power savings to the next level.  Matching power to actual demand and conditions, the NXC refrigerated compressed air dryer offers steady dew point performance, low pressure drop and reliable operation to ensure you have continuous, worry free, clean and dry compressed air. As a result, the energy saving cycling dryer is eligible for rebates in many parts of the country.

Key Specs:

Flow Rate

20 to 2000 scfm

Connection

 ½” NPT to 4” Flg

Product Grade

ISO 8573.1:2010 Class 4 - 6

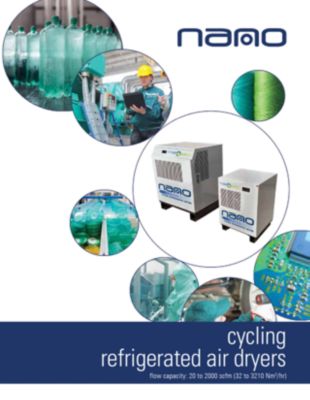

nano-purification solutions product brochure with equipment details

R1 NXC Brochure - Cycling Refrigerated Dryers

Filename
EN-R1-NXC-brochure-cycling-refrigerated-dryers.pdf
Size
1 MB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Brochure - Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
nano-purification solutions product brochure with equipment details

Safe Quality Food (SQF) Standards

Filename
EN-SQF-brochure-safe-quality-food-air-quality-standard.pdf
Size
848 KB
Format
application/pdf
View

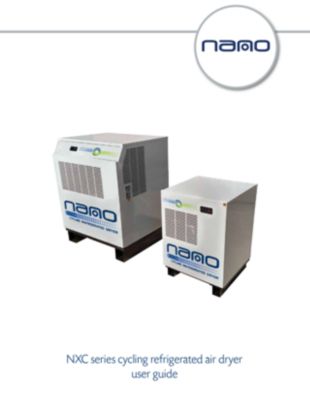

nano equipment user guide

R1 NXC User Guide

Filename
R1-NXC-0020-2000-user-guide-manual-refrigerated-cycling-dryer.pdf
Size
3 MB
Format
application/pdf
View

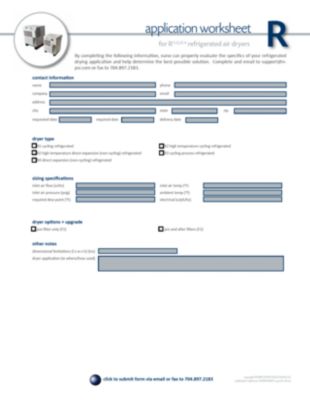

equipment worksheet product technical paper

Refrigerated Dryer Worksheet

Filename
EN-R-series-worksheet-refrigerated-dryers.pdf
Size
186 KB
Format
application/pdf
View

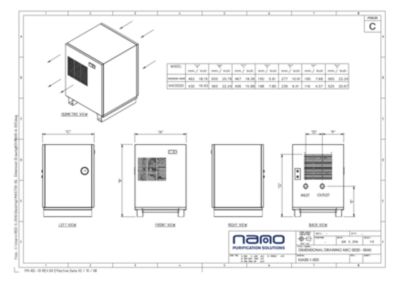

ga general arrangement drawing

R1 NXC 0020-0045

Filename
R1-NXC-0020-0045-ga-general-arrangement-drawing-cyclin-refrigerated-dryers.pdf
Size
338 KB
Format
application/pdf
View
ga general arrangement drawing

R1 NXC 0065-0400

Filename
R1-NXC-0065-0400-ga-general-arrangement-drawing-cyclin-refrigerated-dryers.pdf
Size
386 KB
Format
application/pdf
View
ga general arrangement drawing

R1 NXC 500

Filename
R1-NXC-500-ga-general-arrangement-drawing-cyclin-refrigerated-dryers.pdf
Size
368 KB
Format
application/pdf
View

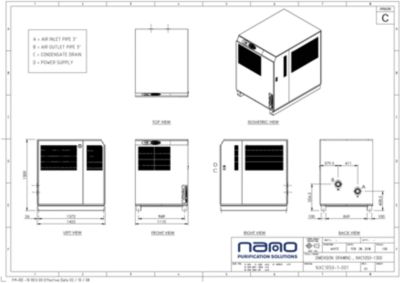

ga general arrangement drawing

R1 NXC 1050-1300

Filename
R1-NXC-1050-1300-ga-general-arrangement-drawing-cyclin-refrigerated-dryers.pdf
Size
428 KB
Format
application/pdf
View

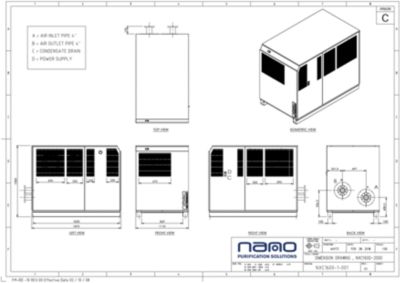

ga general arrangement drawing

R1 NXC 1600-2000

Filename
R1-NXC-1600-2000-ga-general-arrangement-drawing-cyclin-refrigerated-dryers.pdf
Size
406 KB
Format
application/pdf
View

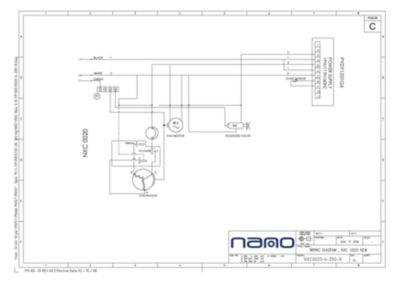

equipment electrical wiring diagram and electrical schematics

R1 NXC 0020 Electrical Drawing

Filename
R1-NXC-0020-electrical-wiring-schematics-refrigerated-dryer.pdf
Size
313 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

R1 NXC 0030-0045 Electrical Drawing

Filename
R1-NXC-0030-0045-electrical-wiring-schematics-refrigerated-dryer.pdf
Size
290 KB
Format
application/pdf
View

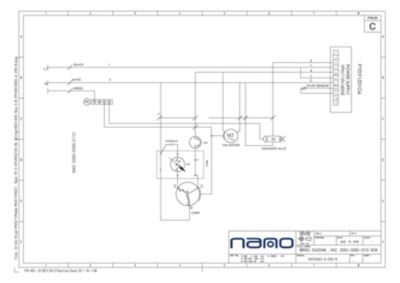

equipment electrical wiring diagram and electrical schematics

R1 NXC 0065-0090 Electrical Drawing

Filename
R1-NXC-0065-0090-electrical-wiring-schematics-refrigerated-dryer.pdf
Size
290 KB
Format
application/pdf
View

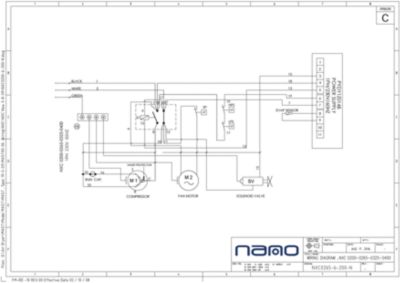

equipment electrical wiring diagram and electrical schematics

R1 NXC 0200-0400 Electrical Drawing

Filename
R1-NXC-0200-0265-0325-0400-230V-electrical-wiring-schematics-refrigerated-dryer.pdf
Size
271 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

R1 NXC 0500 - 0850 Electrical Drawing

Filename
R1-NXC-0500-0650-0850-electrical-wiring-schematics-refrigerated-dryer.pdf
Size
257 KB
Format
application/pdf
View

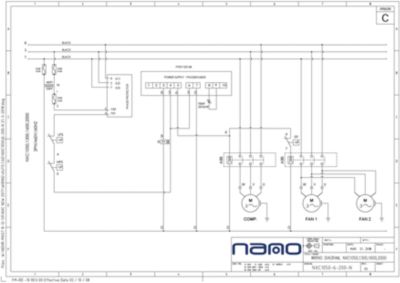

equipment electrical wiring diagram and electrical schematics

R1 NXC 1050-2000 Electrical Drawing

Filename
R1-NXC-1050-1300-1600-2000-electrical-wiring-schematics-refrigerated-dryer.pdf
Size
1 MB
Format
application/pdf
View

Features

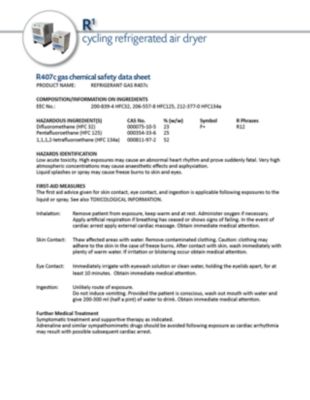

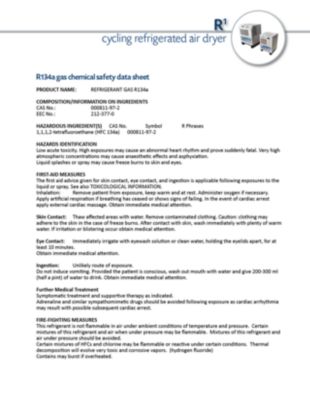

R134a or R407C refrigerant and non-toxic silica dry mass utilized in all models

Easy to install, and start up with no overnight precooling of thermal mass required

Pre- and after filter packages available to provide additional energy savings and improved air quality

Specifications of our models

Dryer Model

Recommended Filtration

Inlet & Outlet (1)

Rated Flow (2)

Absorbed Power (3)

Power Supply (V/Ph/60Hz) (4)

Pre-Filter

After-Filter

NPT/Flg

scfm

Nm3/h

kW

115/1

230/1

460/3

NXC 0020

GF 0050 M1

GF 0050 M01

½"

20

32

0.23



NXC 0030

GF 0085 M1

GF 0085 M01

¾"

30

48

0.24



NXC 0045

GF 0105 M1

GF 0085 M01

¾"

45

72

0.25



NXC 0065

GF 0105 M1

GF 0105 M01

1"

65

104

0.47



NXC 0090

GF 0105 M1

GF 0105 M01

1"

90

144

0.49



NXC 0110

GF 0125 M1

GF 0125 M01

1"

110

177

0.51



NXC 0130

GF 0325 M1

GF 0325 M01

1 ½"

130

209

0.97



NXC 0165

GF 0325 M1

GF 0325 M01

1 ½"

165

265

1.02



(Models NXC 0020 to NXC 0165: UL STD 60335-1 & 60335-2-40 / CSA STD C22.2)

NXC 0200

GF 0450 M1

GF 0450 M01

2"

200

321

1.41



NXC 0265

GF 0450 M1

GF 0450 M01

2"

265

425

1.41



NXC 0325

GF 0450 M1

GF 0450 M01

2"

325

522

1.47



NXC 0400

GF 0450 M1

GF 0450 M01

2"

400

642

1.52



NXC 0500

GF 0850 M1

GF 0850 M01

2 ½"

500

803

2.50



NXC 0650

GF 0900 M1

GF 0900 M01

3"

650

1043

3.46



NXC 0850

GF 0900 M1

GF 0900 M01

3"

850

1364

3.60



NXC 1050

GF 01250 M1

GF 1250 M01

3"

1050

1685

5.00



NXC 1300

GF 1500 M1

GF 1500 M01

3"

1300

2087

5.15



NXC 1600

NFZ 2500 M1

NFZ 2500 M01

4" Flg

1600

2568

6.90



NXC 2000

NFZ 2500 M1

NFZ 2500 M01

4" Flg

2000

3210

7.20



Specifications

Design operating pressure range

0 to 232 psig / 0 to 16 bar

Maximum inlet temperature 158°F

158°F / 70°C

Maximum ambient temperature

110°F - 122°F / 43 to 50°C depending on refrigerant (contact support for details)

(1) 1⁄2” to 3” are NPT threaded connections, 4” are supplied with ANSI flanged connections

(2) rated flow capacity: conditions for rating dryers are in compliance with ISO7183 (Option A2). Compressed air at dryer inlet: 100 psig (7 bar) and 100°F (38°C); ambient air temperature: 100°F (38°C); operating on 60Hz power supply

(3) nominal absorbed power at rated operating conditions using 115/1/60 or 460/3/60 power supply (as applicable). for absorbed power at other voltages or conditions, contact support

(4) specify voltage requirements when ordering
