Thousands of hollow fibers with a unique inner coating increases separation efficiency between the water vapor and air, giving unprecedented low air leakage and lowest purge air loss
Key Specs:
Flow Rate
6.4 to 74.2 scfm
Connection
½” NPT (F)
Air Quality
ISO 8573.1 Class
Product Documentation
- Brochures

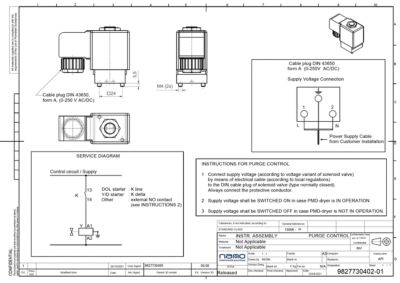

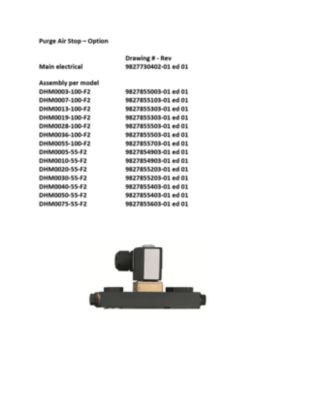

- Electrical Diagrams

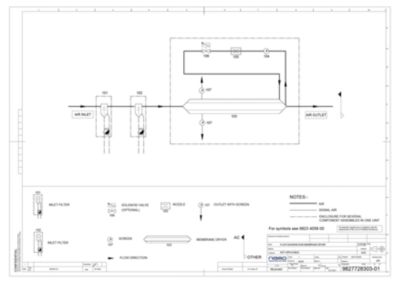

- Flow Diagrams

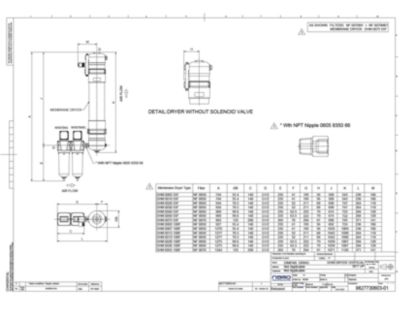

- GA Drawings

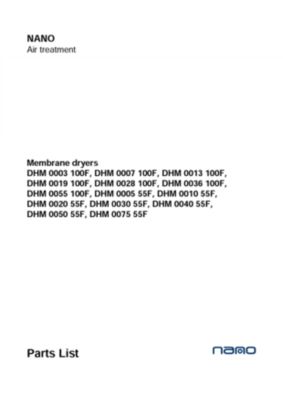

- Service Manuals

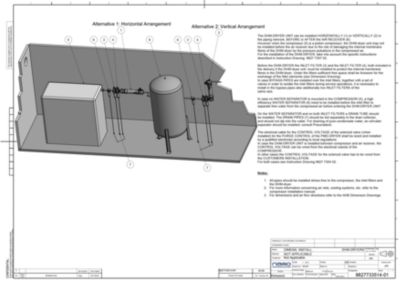

- User Guides
Features
With pre filtration as standard, dryers are easy to install either horizontally or vertically, with no moving or wearing parts to maintain
For environments with space restrictions, widely fluctuating temperatures, lack of power or high vibration areas
Specifications of our models
Dryer Models |
Prefilters |
Pressure Dew Point Suppression |
Inlet & Outlet |
Rated Flow at 101.5 psig |
|---|---|---|---|---|
| Part No. | °F |
NPT (F) |
scfm |
|
NF 0050 M1/M01 |
57.6 |
½" |
6.4 |
|
NF 0050 M1/M01 |
57.6 |
½" |
10.6 |
|
NF 0050 M1/M01 |
57.6 |
½" |
19.1 |
|
NF 0050 M1/M01 |
57.6 |
½" |
29.7 |
|
NF 0050 M1/M01 |
57.6 |
½" |
40.3 |
|
NF 0050 M1/M01 |
57.6 |
½" |
53 |
|
NF 0070 M1/M01 |
57.6 |
½" |
74.2 |
|
NF 0050 M1/M01 |
99 |
½" |
3.2 |
|
NF 0050 M1/M01 |
99 |
½" |
7.4 |
|
NF 0050 M1/M01 |
99 |
½" |
12.7 |
|
NF 0050 M1/M01 |
99 |
½" |
19.1 |
|
NF 0050 M1/M01 |
99 |
½" |
27.5 |
|
NF 0050 M1/M01 |
99 |
½" |
36 |
|
NF 0070 M1/M01 |
99 |
½" |
55.1 |
Specifications |
Standard |
|---|---|
Minimum/maximum operating pressure range |
53 to 203 psig |
Minimum/maximum ambient temperature |
33.8 to 150.8°F |
Minimum/maximum inlet temperature |
33.8 to 150.8°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
