High performance valves designed for durability, ease of maintenance and long service life.
Key Specs:
Flow Rate
5.1 Nm3/h and up
Connection
⅜” PTC to 2 ½” BSPP
Air Quality
ISO 8573.1:2010 Class 1.2.2
Product Documentation
- Brochures

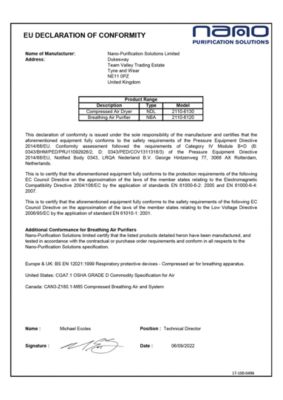

- Certificates
- Electrical Diagrams
- General Arrangement Drawings
- Material Safety Data Sheets
- P & ID
- Service Intervals
- Spare Parts Guide
- Service Manuals
- User Guides
- Worksheets
Features
Patented, high density snowstorm filled cartridges (models NDL 010 to NDL 130) with integrated after filter (all models) can be serviced in less than 15 minutes and provide maximum adsorption capacity.
Designed for ease of use, the nTech control platform (as standard) delivers instant access to critical operating data, alarm notifications, and system controls. Optional remote monitoring and automatic memory retention help maximize uptime and efficiency.
Specifications of Our Models
Desiccant Dryer Model |
Recommended Pre Filters |
Inlet & Outlet |
Flow Rate at 7 barg |
|---|---|---|---|
Part No. |
PTC/BSPP |
Nm3/h |
|
D1 |
|||
NDL 010 |
GFNB 0006 M1 / M01 |
3/8” PTC |
5.1 |
NDL 020 |
GFNB 0006 M1 / M01 |
3/8” PTC |
8.5 |
NDL 030 |
GFNB 0015 M1 / M01 |
3/8” PTC |
17 |
NDL 040 |
GFNB 0015 M1 / M01 |
3/8” PTC |
26 |
NDL 050 |
GFNB 0025 M1 / M01 |
3/8” PTC |
33 |
D2 |
|||
NDL 060N |
GFNB 0050 M1 / M01 |
1” |
58 |
NDL 070N |
GFNB 0050 M1 / M01 |
1” |
70 |
NDL 080N |
GFNB 0070 M1 / M01 |
1” |
90 |
NDL 090N |
GFNB 0070 M1 / M01 |
1” |
112 |
NDL 100N |
GFNB 0105 M1 / M01 |
1” |
150 |
NDL 110N |
GFNB 0125 M1 / M01 |
1” |
180 |
NDL 120N |
GFNB 0175 M1 / M01 |
1” |
224 |
NDL 130N |
GFNB 0175 M1 / M01 |
1” |
301 |
D3 |
|||
NDL 2110N |
GFNB 0280 M1 / M01 |
2” |
360 |
NDL 2120N |
GFNB 0280 M1 / M01 |
2” |
469 |
NDL 2130N |
GFNB 0450 M1 / M01 |
2” |
680 |
NDL 3130N |
GFNB 0700 M1 / M01 |
2” |
951 |
NDL 4130N |
GFNB 0850 M1 / M01 |
2 ½” |
1274 |
NDL 6120N |
GFNB 0850 M1 / M01 |
2 ½” |
1407 |
NDL 6130N |
GFNB 1250 M1 / M01 |
2 ½” |
1886 |
Specifications |
D1/ D2 |
D3 |
||
|---|---|---|---|---|
Standard |
Optional |
Standard |
Optional |
|
Maximum water content (ISO class) |
class 2 (-40°C pdp) |
class 1 (-70°C) |
class 2 (-40°C pdp) |
class 1 (-70°C) |
Minimum operating pressure |
4 barg |
- |
4 barg |
- |
Maximum operating pressure |
16 barg |
- |
10 barg |
16 barg |
Recommended operating temp range |
1.5 to 35°C |
- |
1.5 to 35°C |
- |
Design operating temperature range |
1.5 to 35°C |
- |
1.5 to 50°C |
- |
Power supply requirements |
50 or 60 Hz |
24V DC |
85 to 264V AC, 50/60 Hz |
24 V DC |
Power rating |
25W (D1) 35W (D2) |
- |
35W |
- |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
