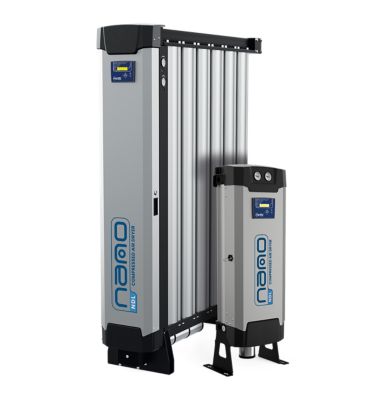

D series of the nano desiccant dryers standing together

Desiccant Compressed Air Dryers

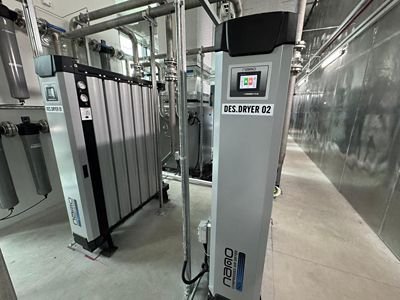

Heatless Modular Desiccant Dryers

Designed for use in the compressor room, at the point of application or integrated into your original equipment, nano heatless modular desiccant compressed air dryers are an effective solution to the problems caused by contaminated compressed air. Perfect for sensitive processes or instrumentation, these -40°F/-40°C pressure dew point dryers have a modular, space-saving design that is easy to install & ready for use in spaces too small for a traditional twin tower dryer design.  Standard pre-filter and outlet filtration, low pressure drop and consistent dew point performance are just a few of the many benefits of the modular dryer system.

Key Specs:

Flow Rate

3 scfm and up

Connection

 ⅜” PTC to 2 1/2 ” NPT(F)

Air Quality

ISO 8573.1:2010 Class 1.2.2

Product Documentation

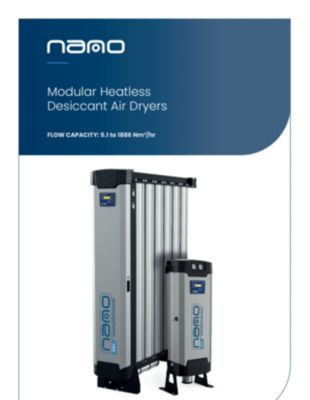

D1/D2/D3 NDL - Brochure

D1/D2/D3 NDL - Brochure

Filename
UK-D1-D2-D3-brochure-modular-desiccant-dryers.pdf
Size
705 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
equipment user guide product manual

D1 NDL 010-050 - User Guide

Filename
D1-NDL-010-050-C-user-guide-manual-heatless-desiccant-air-dryer.pdf
Size
2 MB
Format
application/pdf
View
equipment user guide product manual

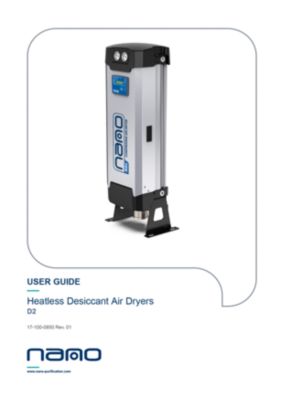

D2 NDL 060-130 - User Guide

Filename
D2-NDL-60-130-user-guide-manual-desiccant-dryer.pdf
Size
2 MB
Format
application/pdf
View
equipment user guide product manual

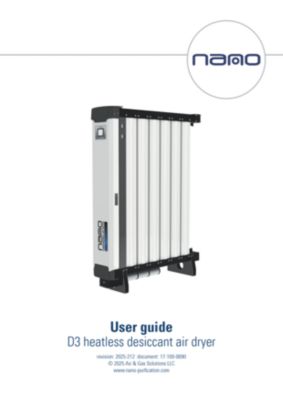

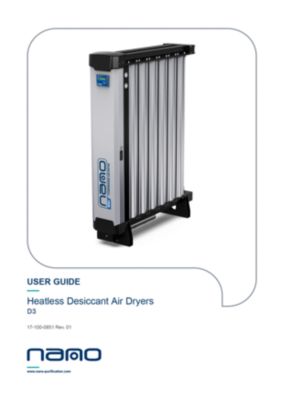

D3 NDL 2110-6130 - User Guide

Filename
D3-NDL-2110-6130-user-guide-manual-heatless-desiccant-dryer.pdf
Size
2 MB
Format
application/pdf
View
D1 NDL - Service Manual

D1 NDL - Service Manual

Filename
D1-NDL-service-manual-maintenance-modular-desiccant-dryers.pdf
Size
1 MB
Format
application/pdf
View
D2.2 NDL - Service Manual

D2.2 NDL - Service Manual

Filename
D2.2-NDL-service-manual-maintenance-modular-desiccant-dyers.pdf
Size
2 MB
Format
application/pdf
View
The manual for the D3 modular desiccant dryer standard controller

D3 Standard Controller

Filename
D3-NDL-standard-controller-service-manual-maintanence-modular-dessicant-dryer-controller.pdf
Size
5 MB
Format
application/pdf
View
The manual for the D3 modular desiccant dryer advanced controller

D3 Advanced Controller

Filename
D3-NDL-advanced-controller-service-manual-maintanence-modular-dessicant-dryer-advanced-controller.pdf
Size
6 MB
Format
application/pdf
View
A safety data sheet for the nano-brand desiccant material used in the NDL compressed air modular dryers

NDL Desiccant - Safety Data Sheet

Filename
NDL-desiccant-data-sheet-AxSorb-UK.pdf
Size
132 KB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Application Worksheet

Filename
EN-D-series-worksheet-desiccant-dryers.pdf
Size
212 KB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Technical Paper

Filename
EN-D-Series-technical-paper-desiccant-dryers.pdf
Size
450 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NDL 0010-0020

Filename
EC-Declaration-of-Conformity-2014-68-EU-COC-NDL-0010-0020-NDC-015-140.pdf
Size
123 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NDL 0030-0050

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-030-050-NBA-030-050-NDC-300-600.pdf
Size
124 KB
Format
application/pdf
View
Declaration of Conformity - EC Council Directive

Declaration of Conformity - NDL 0060-0130

Filename
EC-Declaration-of-Conformity-2014-68-EU-NDL-060-130-NDC-900-1200-NBA-060-120.pdf
Size
124 KB
Format
application/pdf
View
ga general arrangement drawing

D1 NDL 0010-0050 - GA Drawing

Filename
D1-NDL-010-050-C-ga-general-arrangement-drawing-CRN-modular-desiccant-dryers.pdf
Size
867 KB
Format
application/pdf
View
ga general arrangement drawing

D2 NDL 0060-0130 - GA Drawing

Filename
D2-NDL-060-130-ga-general-arrangement-drawing-desiccant-dryer.pdf
Size
2 MB
Format
application/pdf
View
ga general arrangement drawing

D3 NDL 2110-6130 - GA Drawing

Filename
D3-NDL-2110-6130-ga-general-arrangement-drawing-desiccant-dryer.pdf
Size
5 MB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

D1 NDL 010-050 - Electrical Diagram

Filename
D1-NDL-010-050-electrical-wiring-schematics-desiccant-dryer.pdf
Size
477 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

D2 NDL 060-130 - Electrical Diagram

Filename
D2-NDL-010-050-electrical-wiring-schematics-desiccant-dryer.pdf
Size
275 KB
Format
application/pdf
View
D2/D3 NDL - Electrical Diagram (Premium Controller)

D2/D3 NDL - Premium Controller

Filename
D2-D3-NDL-electrical-wiring-schematics-premium-controller-desiccant-dryer.pdf
Size
305 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

D3 NDL 2110-6130 - Electrical Diagram

Filename
D3-NDL-2110-6130-electrical-wiring-schematics-desiccant-dryer.pdf
Size
275 KB
Format
application/pdf
View

Features

High performance valves designed for durability, ease of maintenance and long service life

Patented, high density snowstorm filled cartridges (models NDL 010 to NDL 130) with integrated after filter (all models) can be serviced in less than 15 minutes and provide maximum adsorption capacity

Energy Saving Dew Point Control, -94°F/-70°C pressure dew point, advanced PLC controller available (models NDL 2110 to NDL 6130)

Specifications of our models

Dryer Model

Recommended Pre Filter

Inlet & Outlet

Rated Flow (3)



Model

BSPP (1)

scfm

Nm3/h

D1

NDL 010

GFNB 0006 M01

3/8” (1)

3

5.1

NDL 020

GFNB 0006 M01

3/8” (1)

5

8.5

NDL 030

GFNB 0015 M01

3/8” (1)

10

17

NDL 040

GFNB 0015 M01

3/8” (1)

15

26

NDL 050

GFNB 0025 M01

3/8” (1)

20

33

D2

NDL 060

GFNB 0050 M01

1”

34

58

NDL 070

GFNB 0050 M01

1”

41

70

NDL 080

GFNB 0070 M01

1”

53

90

NDL 090

GFNB 0070 M01

1”

66

112

NDL 100

GFNB 0105 M01

1”

88

150

NDL 110

GFNB 0125 M01

1”

106

180

NDL 120

GFNB 0175 M01

1”

132

224

NDL 130

GFNB  0175 M01

1”

177

301

D3

NDL 2110

GFNB 0280 M01

2”

212

360

NDL 2120

GFNB 0280 M01

2”

276

469

NDL 2130

GFNB 0450 M01

2”

400

680

NDL 3130

GFNB 0700 M01

2”

560

951

NDL 4130

GFNB 0850 M01

2 ½”

750

1274

NDL 6120

GFNB 0850 M01

2 ½”

828

1407

NDL 6130

GFNB 1250 M01

2 ½”

1110

1886

Specifications

D1/ D2

D3



Standard

Optional

Standard

Optional

Maximum water content (ISO class) (4)

class 2 (-40°C pdp)

class 1 (-70°C)

class 2 (-40°C pdp)

class 1 (-70°C)

Minimum operating pressure

4 barg

-

4 barg

-

Maximum operating pressure

16 barg

-

10 barg

16 barg

Recommended operating temp range

1.5 to 35°C

-

1.5 to 35°C

-

Design operating temperature range

1.5 to 35°C

-

1.5 to 50°C

-

Power supply requirements

50 or 60 Hz

24V DC

85 to 264V AC, 50/60 Hz

24 V DC

Power rating

25W (D1) 35W (D2)

-

35W

-

(1) at an inlet conditions of 7 barg and 25°C and a -40°C outlet pressure dew point. For all other conditions refer to the correction factors above

(2) recommended for all applications. Required when dryer is to be installed immediately downstream of an oil lubricated compressor

(3) per ISO 8573.1:2010

(4) to be used as a rough guide only. All applications should be confirmed by nano. Contact us

(5) filter port size may differ from dryer port size
