![R6 VDR 6350-8450 (watercooled) [Metric] - General Arrangement (GA) Drawing](http://atlascopco.scene7.com/is/image/atlascopco/R6-VDR-6350-8450-watercooled-ga-general-arrangement-drawing-metric-variable-speed-ref-Ilr8DQ9nPM "R6 VDR 6350-8450 (watercooled) [Metric] - General Arrangement (GA) Drawing")
These models can reduce power consumption up to 80% vs non-cycling dryers.
Key Specs:
Flow Rate
2600 to 8450 scfm
Connection
6” to 8” Flg
Air Quality
ISO 8573.1:2010 Class 4
Product Documentation
- Brochures

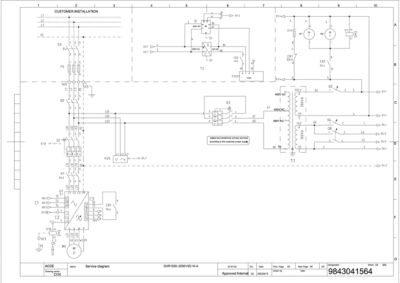

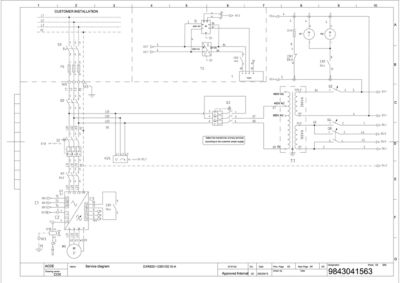

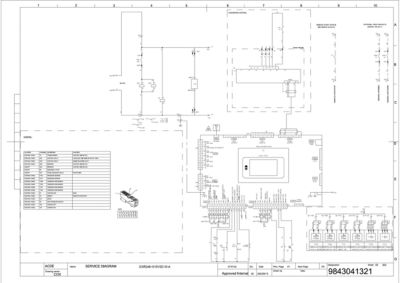

- Electrical Diagrams
- Flow Diagrams
- General Arrangement Drawings
- Material Safety Data Sheets
- Installation Diagrams
- Worksheets
- User Guides
Features
Each unit maintains a constant dewpoint even as the compressed air flow rate fluctuates.
Uses zero ozone depletion and low CO2 emissions refrigerant.
Specifications of our models
Dryer Model |
Inlet & Outlet |
Rated Flow at 100 psig |
Pressure Drop |
Absorbed Power |
Power Supply |
|---|---|---|---|---|---|
Flg |
scfm |
psi |
kW |
460/60/3 |
|
Aircooled |
|||||
6” |
2600 |
2.6 |
9.9 |
• |
|
6” |
3150 |
2.6 |
10.5 |
• |
|
6” |
3700 |
2.2 |
11.3 |
• |
|
6” |
4200 |
2.8 |
14.2 |
• |
|
6” |
5050 |
3.9 |
19.1 |
• |
|
8” |
6350 |
2.8 |
23.9 |
• |
|
8” |
8450 |
2.8 |
28.1 |
• |
|
Watercooled |
|||||
6” |
2600 |
2.6 |
6.1 |
• |
|
6” |
3150 |
2.6 |
6.6 |
• |
|
6” |
3700 |
2.2 |
7.5 |
• |
|
6” |
4200 |
2.8 |
8.3 |
• |
|
6” |
5050 |
3.9 |
12.8 |
• |
|
8” |
6350 |
2.8 |
14.4 |
• |
|
8” |
8450 |
2.8 |
19.7 |
• |
|
Specifications |
|
|---|---|
Design operating pressure range |
30 to 203 psig |
Maximum inlet temperature |
158°F |
Design ambient temperature |
45 to 114.8°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
