Combination Oil Aftercoolers

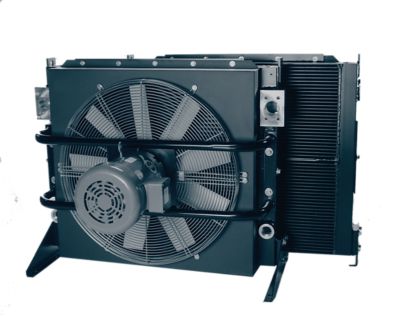

Upgrade your compressor system with the X-AOC Series, the ultimate aftercooler oil cooler package. With this revolutionary product, you can convert your water-cooled compressors to air-cooled ones, eliminating the need for costly water bills and preventing corrosion. What's more, you can mount the cooling package remotely from the compressor to reduce noise or set it up in a cleaner, cooler, and more convenient location. Don't miss out on the opportunity to upgrade your compressor system with the X-AOC Series and experience the benefits of a more efficient and cost-effective cooling solution.

Request Price

Key Specs:

Use

For 5 HP to 350 HP Air Compressors

Operating Temperature

35 to 250°F

Max Allowable Working Pressure

250 psig

Product Documentation

X1 X-AOC combination aftercooler oil cooler brochure

X-AOC Combination Oil Aftercoolers

Product Brochure

Filename
EN-X1-AOC-combination-aftercooler-oil-cooler-brochure.pdf
Size
678 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO 8573-1 Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View
The ga drawing for the X-AOC 8 aftercooler

X-AOC 8 Combination Oil Aftercooler

General Arrangement Drawing

Filename
X1-X-AOC-8-ga-general-arrangement-drawing-combination-oil-aftercooler.pdf
Size
250 KB
Format
pdf
View
The ga drawing for the X-AOC 15 aftercooler

X-AOC 15 Combination Oil Aftercooler

General Arrangement Drawing

Filename
X1-X-AOC-15-ga-general-arrangement-drawing-combination-oil-aftercooler.pdf
Size
233 KB
Format
pdf
View
The ga drawing for the X-AOC 30 aftercooler

X-AOC 30 Combination Oil Aftercooler

General Arrangement Drawing

Filename
X1-X-AOC-30-ga-general-arrangement-drawing-combination-oil-aftercooler.pdf
Size
252 KB
Format
pdf
View
The ga drawing for the X-AOC 40 aftercooler

X-AOC 40 Combination Oil Aftercooler

General Arrangement Drawing

Filename
X1-X-AOC-40-ga-general-arrangement-drawing-combination-oil-aftercooler.PDF
Size
401 KB
Format
pdf
View
The ga drawing for the X-AOC 075 aftercooler

X-AOC 75 Combination Oil Aftercooler

General Arrangement Drawing

Filename
X1-X-AOC-75-ga-general-arrangement-drawing-combination-oil-aftercooler.PDF
Size
672 KB
Format
pdf
View
The ga drawing for the X-AOC 125 aftercooler

X-AOC 125 Combination Oil Aftercooler

General Arrangement Drawing

Filename
X1-X-AOC-125-ga-general-arrangement-drawing-combination-oil-aftercooler.pdf
Size
430 KB
Format
pdf
View
The ga drawing for the X-AOC 175 aftercooler

X-AOC 175 Combination Oil Aftercooler

General Arrangement Drawing

Filename
X1-X-AOC-175-ga-general-arrangement-drawing-combination-oil-aftercooler.PDF
Size
866 KB
Format
pdf
View
The ga drawing for the X-AOC 250 aftercooler

X-AOC 250 Combination Oil Aftercooler

General Arrangement Drawing

Filename
X1-X-AOC-250-ga-general-arrangement-drawing-combination-oil-aftercooler.PDF
Size
400 KB
Format
pdf
View
The ga drawing for the X-AOC 350 aftercooler

X-AOC 350 Combination Oil Aftercooler

General Arrangement Drawing

Filename
X1-X-AOC-350-ga-general-arrangement-drawing-combination-oil-aftercooler.PDF
Size
1 MB
Format
pdf
View

Features

We’ve constructed our fin and tube designs to be up to 60% smaller than other conventional components on the market.

Includes aftercooler/oil cooler, fan, motor, guards, and mounting brackets

6 motor configurations to meet all application needs

Specifications of Our Models

Aftercooler Specifications

Maximum working pressure

250 psi

Maximum working temperature

250°F

Cooler material

aluminum

Shroud material

powder painted steel

Fan guard material

zinc plated steel

fFn blade material

polypropylene blades/aluminum hub

Mounting brackets

powder painted steel

ROTARY COMPRESSOR

Air Compressor

Recommended X-AOC Model

Horsepower

5-7.5 hp

X-AOC8

10-15 hp

X-AOC15

20-30 hp

X-AOC30

40 hp

X-AOC40

50-75 hp

X-AOC75

100-125 hp

X-AOC125

150-175 hp

X-AOC175

200-250 hp

X-AOC250

300-350 hp

 X-AOC350

Electrical Motor Data

Model

HP RPM

Motor Frame

Single Phase

Three Phase

Voltage

Hz

Full Load amps 230V

Voltage

Hz

Full Load amps 230V

X-AOC8

⅓ 3250

IEC 63

115/230

60

2.6

208-230/460

200/220

380/440

60

50

50

1.2

X-AOC15

½ 3250

IEC 71

115/230

60

3.4

208-230/460

200/220

380/440

60

50

50

1.2

X-AOC30

½ 1725

NEMA 56C

115-208/230

60

4.4

208-230/460

190/200 208/220

380/400 416/440

60

50

50

2.0

X-AOC40

1 1725

NEMA 56C

115-208/230

60

6.4

208/230/460

190/200 208/220

380/400 416/440

60

50

50

3.4

X-AOC75

2 1725

NEMA 56C

115/230

60

10

208-230/460

190/200 208

380/400 416

60

50

50

6.5

X-AOC125

5 1725

NEMA 184TC

230

60

23

208-230/460

190/200 208

380/400 416

60

50

50

13.4

X-AOC175

7 ½ 1725

NEMA 213TC

CF

CF

CF

208-230/460

190/200 208

380/400 416

60

50

50

19.2

X-AOC250

7 ½ 1725

NEMA 213TC

CF

CF

CF

208-230/460

190/200 208

380/400 416

60

50

50

19.2

X-AOC350

10 1725

NEMA 215TC

CF

CF

CF

208-230/460

190/200 208

380/400 416

60

50

50

26.0

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
