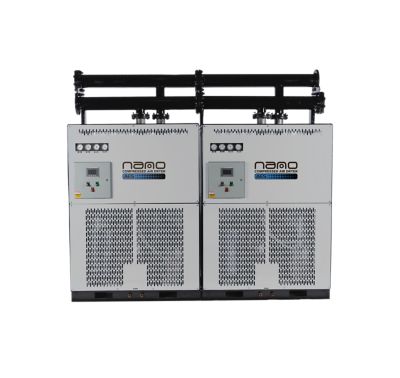

Digital scroll compressors modulate on and off, immediately and accurately based on on system demand.
Key Specs:
Flow Rate
600 to 10,000 scfm
Connection
3" NPT to 12” Flg
Air Quality
ISO 8573.1:2010 Class 5
Product Documentation

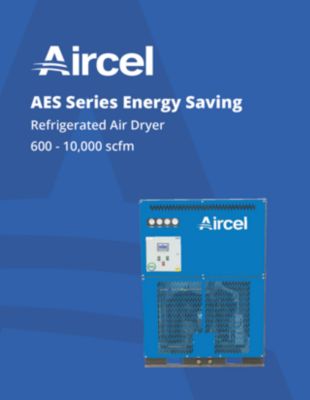

- Brochures

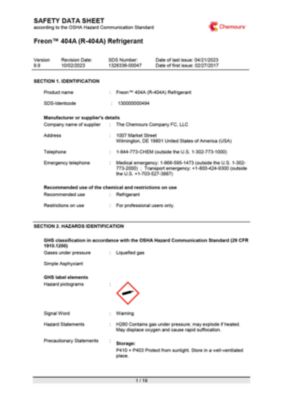

- Material Safety Data Sheets

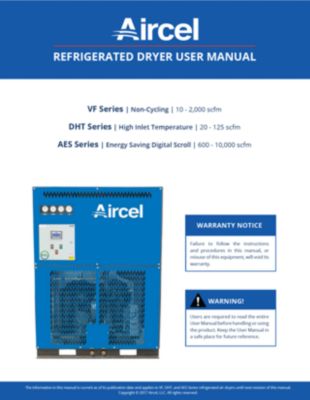

- User Guides
Features
Interface up to five modules with isolation valves to expand drying capabilities.
Pre- and after filter packages available to provide additional energy savings and improved air quality.
Specifications of our models
Dryer Model |
Inlet & |
Rated Flow |
Absorbed Power |
Power Supply (V/Ph) |
|---|---|---|---|---|
NPT/FLG |
scfm |
kW |
460/3 |
|
| Air-Cooled | ||||
| AES-600A | 3" | 600 | 5.6 | • |
| AES-800A | 3" | 800 | 7.0 | • |
| AES-1000A | 3" | 1000 | 8.1 | • |
| AES-1250A | 3" | 1250 | 9.6 | • |
| AES-1500A | 4" | 1500 | 11.7 | • |
| AES-1750A | 4" | 1750 | 16.3 | • |
| AES-2000A | 4" | 2000 | 17 | • |
| AES-2500A | 6" | 2500 | 19 | • |
| AES-3000A | 6" | 3000 | 23.3 | • |
| AES-3500A | 8" | 3500 | 32.6 | • |
| AES-4000A | 8" | 4000 | 33.8 | • |
| AES-4500A | 8" | 4500 | 23.3 | • |
| AES-5250A | 8" | 5250 | 32.6 | • |
| AES-6000A | 8" | 6000 | 33.8 | • |
| AES-7000A | 10" | 7000 | 59.5 | • |
| AES-8000A | 10" | 8000 | 70.1 | • |
| AES-8750A | 12" | 8750 | 74.4 | • |
| AES-10000A | 12" | 10000 | 87.6 | • |
| Water-Cooled | ||||
| AES-600W | 3" | 600 | CF | • |
| AES-800W | 3" | 800 | CF | • |
| AES-1000W | 3" | 1000 | CF | • |
| AES-1250W | 3" | 1250 | CF | • |
| AES-1500W | 4" | 1500 | CF | • |
| AES-1750W | 4" | 1750 | CF | • |
| AES-2000W | 4" | 2000 | CF | • |
| AES-2500W | 6" | 2500 | CF | • |
| AES-3000W | 6" | 3000 | CF | • |
| AES-3500W | 8" | 3500 | CF | • |
| AES-4000W | 8" | 4000 | CF | • |
| AES-4500W | 8" | 4500 | CF | • |
| AES-5250W | 8" | 5250 | CF | • |
| AES-6000W | 8" | 6000 | CF | • |
| AES-7000W | 10" | 7000 | CF | • |
| AES-8000W | 10" | 8000 | CF | • |
| AES-8750W | 12" | 8750 | CF | • |
| AES-10000W | 12" | 10000 | CF | • |
| Specifications | |
|---|---|
Design operating pressure range |
0 to 232 psig |
Maximum inlet air temperature |
120°F |
Maximum ambient temperature |
40°F - 120°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
