nano TMC thermal mass cycling refrigerated dryers

Refrigerated Compressed Air Dryers

Thermal Mass Cycling Dryers

Are you tired of high energy bills from traditional dryers? Introducing the TMC thermal mass cycling refrigerated compressed air dryer with a unique glycol thermal mass that can save you up to 80% on power! This innovative dryer matches power to actual demand and conditions, guaranteeing a steady dew point performance, low-pressure drop, and reliable operation. Say goodbye to the hassle of continuous maintenance and enjoy worry-free, clean, and dry compressed air. Plus, you may be eligible for rebates in many parts of the country due to its energy-saving capabilities. Upgrade to the TMC thermal mass cycling dryer today for a more efficient and cost-effective compressed air solution!

Key Specs:

Flow Rate

30 to 635 scfm

Connection

 ½” to 2 ½” NPT

Product Grade

ISO 8573.1:2010 Class 5

TMC Thermal Mass Cycling Refrigerated Dryers

Product Brochure

ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View

TMC 0030-0105 N Thermal Mass Cycling Refrigerated Dryers

General Arrangement Drawing

Filename
R1-EN-TMC0030-TMC0105N-ga-grawing-thermal-mass-cycling-refrigerated-dryers.pdf
Size
739 KB
Format
pdf
View

TMC 0130-0265 N Thermal Mass Cycling Refrigerated Dryers

General Arrangement Drawing

Filename
R1-EN-TMC0130-0265N-ga-drawing-thermal-mass-cycling-refrigerated-dryers.pdf
Size
369 KB
Format
pdf
View

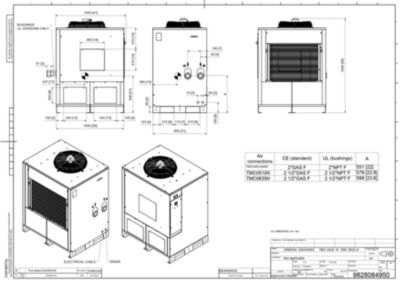

TMC 0320-0635 N Thermal Mass Cycling Refrigerated Dryers

General Arrangement Drawing

Filename
R1-EN-TMC0320-0635N-ga-drawing-thermal-mass-cycling-refrigerated-dryers.pdf
Size
322 KB
Format
pdf
View
NA MSDS

TMC Thermal Mass Cycling Refrigerated Dryers R410A Refrigerant

Material Safety Data Sheet

Filename
EN-DXR-VDR-TMC-Refrigerated-Dryers-MSDS-R410A-EN.pdf
Size
295 KB
Format
pdf
View
NA MSDS

TMC Thermal Mass Cycling Refrigerated Dryers R513A Refrigerant

Material Safety Data Sheet

Filename
EN-DXR-TMC-HTR-Refrigerated_Dryers-MSDS-R513A-EN.pdf
Size
331 KB
Format
pdf
View
CODICE 771647

TMC 0030 N-0105 N Thermal Mass Cycling Refrigerated Dryers

User Guide

Filename
EN-TMC0030N-TMC0105N-user-guide-manual-thermal-mass-cycling-refrigerated-dryers.pdf
Size
2 MB
Format
pdf
View
The user guide for the nano TMC 0130-0635 thermal mass cycling refrigerated dryer.

TMC 0130 N-0635 N Thermal Mass Cycling Refrigerated Dryers

User Guide

Filename
EN-TMC-0130-0635-user-guide-manual-thermal-mass-cycling-refrigerated-dryers.pdf
Size
3 MB
Format
pdf
View


Features

The system features a revolutionary Thermal Mass Circuit (TMC) that uses a unique glycol thermal mass to save energy and money. This technology treats the compressed air based on the actual flow, delivering a constant flow of cold liquid to ensure a consistent dew point in the compressed air outlet.

The TMC range satisfies the energy efficiency criteria required to be eligible for rebates from utility companies.

All models make use of environmentally friendly refrigerants R513a and R410a.

Specifications of our models

Dryer Model

Recommended
Filtration

Inlet & Outlet

Rated Flow
at 100 psig

Absorbed Power

Power Supply (V/Ph/60Hz)

Prefilter

After Filter

NPT

scfm

kW

115/1

230/1

460/3

TMC 0030 N

GF 0050 M1

GF 0050 M01

½"

30

0.44



TMC 0055 N

GF 0085 M1

GF 0085 M01

½"

55

0.78



TMC 0075 N

GF 0105 M1

GF 0085 M01

1 ¼”

75

0.83



TMC 0105 N

GF 0105 M1

GF 0105 M01

1 ¼”

105

1.1



TMC 0130 N

GF 0105 M1

GF 0105 M01

1 ½"

130

1.0



TMC 0170 N

GF 0125 M1

GF 0125 M01

1 ½"

170

1.1



TMC 0200 N

GF 0325 M1

GF 0325 M01

1 ½"

200

1.3





TMC 0265 N

GF 0325 M1

GF 0325 M01

1 ½"

265

1.9





TMC 0320 N

GF 0450 M1

GF 0450 M01

2"

320

2.5





TMC 0400 N

GF 0450 M1

GF 0450 M01

2"

400

3.0





TMC 0510 N

GF 0450 M1

GF 0450 M01

2 ½"

510

3.7





TMC 0635 N

GF 0450 M1

GF 0450 M01

2 ½"

635

4.7






Specifications

Design operating pressure range

0 to 210 psig

Maximum inlet temperature

140°F

Maximum ambient temperature

115°F

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
