A group of water separator products

Compressed Air & Gas Filters

Water Separators

The nano range of centrifugal water separators eliminate 99% of bulk liquid contamination from your compressed air and gas system improving your processes and reducing costly downtime. Manufactured in an ISO 9001 approved facility and tested in accordance with ISO 12500-4, these water separators eliminate corrosion and damage to your downstream equipment reducing system downtime and maintenance costs.

Request Price

Key Specs:

Flow Rate

6 to 3000 scfm

Connection

⅛” NPT (F) to 4” Flg

Added Feature

Automatic Drain

Product Documentation

The brochure for the water separator models of filters

F1.1 GF WS - Brochure

Filename
EN-F1.1-GF-WS-brochure-water-separator-filters.pdf
Size
624 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
nano-purification solutions product brochure with equipment details

Safe Quality Food (SQF) Standards

Filename
EN-SQF-brochure-safe-quality-food-air-quality-standard.pdf
Size
848 KB
Format
application/pdf
View
A general arrangement drawing for the 0006 to 0015 models of water separator filters

F1.1 GF WS 0006-0015 - GA Drawing

Filename
F1.1-GF-WS-0006-0015-ga-general-arrangement-drawing-water-separator-filters.pdf
Size
107 KB
Format
application/pdf
View
A general arrangement drawing for the 0025 to 0050 models of water separator filters

F1.1 GF WS 0025-0050 - GA Drawing

Filename
F1.1-GF-WS-0025-0050-ga-general-arrangement-drawing-water-separator-filters.pdf
Size
138 KB
Format
application/pdf
View
A general arrangement drawing for the 0070 to 0175 models of water separator filters

F1.1 GF WS 0070-0175 - GA Drawing

Filename
F1.1-GF-WS-0070-0175-ga-general-arrangement-drawing-water-separator-filters.pdf
Size
136 KB
Format
application/pdf
View
A general arrangement drawing for the 0280 to 0325 models of water separator filters

F1.1 GF WS 0280-0325 - GA Drawing

Filename
F1.1-GF-WS-0280-0325-ga-general-arrangement-drawing-water-separator-filters.pdf
Size
129 KB
Format
application/pdf
View
A general arrangement drawing for the 0700 model of water separator filters

F1.1 GF WS 0700 - GA Drawing

Filename
F1.1-GF-WS-0700-ga-general-arrangement-drawing-water-separator-filters.pdf
Size
138 KB
Format
application/pdf
View
A general arrangement drawing for the 0850 to 1500 models of water separator filters

F1.1 GF WS 0850-1500 - GA Drawing

Filename
F1.1-GF-WS-0850-1500-ga-general-arrangement-drawing-water-separator-filters.pdf
Size
134 KB
Format
application/pdf
View

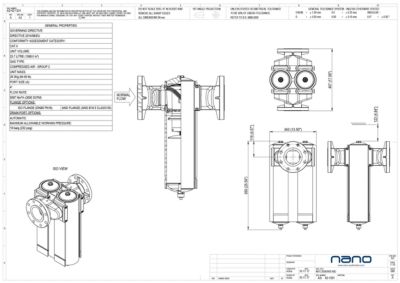

The ga drawing for the NFE 3000 water separator filter product

F1.1 NFE 3000 WS - GA Drawing

Filename
F1.1-NFE-3000-WS-general-arrangement-ga-drawing-water-separator-filter.pdf
Size
208 KB
View
The ga drawing for the NFE 3000 water separator filter product

F1.1 NFE 3000 WS - GA Drawing

Filename
F1.1-NFE-3000-WS-general-arrangement-ga-drawing-water-separator-filter.pdf
Size
208 KB
View

Features

Die-cast aluminum housing with internal and external E-Coat™ finishing for optimum corrosion resistance.

 Ensures the separated liquids cannot re-enter the air or gas stream greatly improves drainage and further improves separation performance.

This range works with a broader spectrum of flow rates.

Specifications of our models

Filter Model

Inlet & Outlet

Rated Flow (1)

NPT/Flg

scfm

Nm3/h

GF 0006 WS

1/8”

6

10

GF 0015 WS

¼”

15

25

GF 0025 WS

¼”

25

42

GF 0035 WS

3/8”

35

60

GF 0050 WS

½”

50

85

GF 0070 WS

½”

70

119

GF 0125 WS

¾”

125

212

GF 0175 WS

1”

175

298

GF 0280 WS

1 ¼”

280

476

GF 0325 WS

1 ½”

325

553

GF 0700 WS

2”

700

1190

GF 0850 WS

2 ½”

850

1445

GF 1500 WS

3”

1500

2550

NFE 3000 WS-ND

4” Flg

3000

5097

Specifications

0006 to 0050 WS

0070 to 1500 WS

NFE 3000 WS-ND

Recommended operating temperature range

35 to 176°F / 2 to 80° C

35 to 176°F / 2 to 80° C

35 to 176°F / 2 to 80° C

Design operating temperature range

35 to 176°F / 2 to 80° C

35 to 176°F / 2 to 80° C

35 to 176°F / 2 to 80° C

Design operating pressure range

0 to 232 psig / 0 to 16 bar

0 to 232 psig / 1.5 to 16 bar

0 to 232 psig / 1.5 to 16 bar

Condensate drain (included) (3)

GFDK 0050

GFDK 1500

-

(1) at 100 psig/7 barg. For all other pressures, refer to the pressure correction factors above

(2) for pressures below 22 psig/1.5 barg order with an GFDK 0050 condensate drain

(3) models NF 0006 to 1500 WS are supplied with an automatic float drain. When high liquid loads are anticipated we recommend installing a high capacity external condensate drain.

(4) technical specifications subject to change without notice.
