Custom engineered hydrophobic and oleophobic borosilicate glass microfiber media repels oil and water for high efficiency filtration with minimal pressure drop
Key Specs:
Flow Rate
95 to 1885 scfm
Connection
¼” to 2” NPT
Filtration
1 & 0.01 micron, AC
Product Documentation

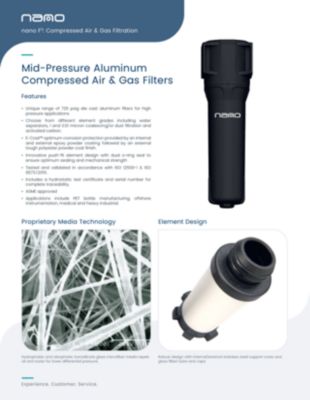

- Brochures

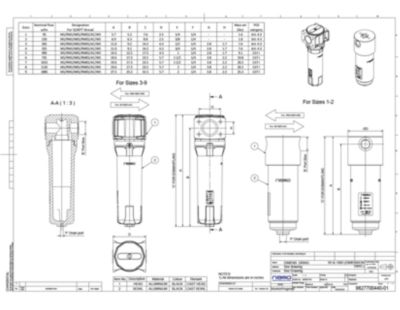

- General Arrangement Drawings
- User Guides
Features
Our design incorporates an innovative push-fit element design with dual o-ring seals to ensure optimum sealing and mechanical strength
Robust design with internal/external stainless steel support cores and glass filled nylon end caps
Specifications of our models
Filter Model |
Replacement Element |
Inlet & Outlet |
Rated Flow at 725 psig |
|---|---|---|---|
Part No. |
NPT |
scfm |
|
G50N 0095 (grade) |
GE50HP 0015 (grade) | ¼” |
95 |
G50N 0150 (grade) |
GE50HP 0030 (grade) | ⅜” |
150 |
G50N 0265 (grade) |
GE50HP 0265 (grade) |
½” |
265 |
G50N 0325 (grade) |
GE50HP 0325 (grade) | ¾” |
325 |
G50N 0490 (grade) |
GE50HP 0490 (grade) | 1” |
490 |
G50N 0735 (grade) |
GE50HP 0735 (grade) | 1½” |
735 |
G50N 1015 (grade) |
GE50HP 1135 (grade) | 1½” |
1015 |
G50N 1135 (grade) |
GE50HP 1135 (grade) | 2” |
1135 |
G50N 1885 (grade) |
GE50HP 1885 (grade) | 2” |
1885 |
Specifications |
|
|---|---|
| Design operating pressure range |
0 to 725 psig |
Condensate drain (included) |
manual ball valve (grades WS/M1/M01) ¼” connection |
Filter housing material |
machined & die-cast aluminum |
Element Performance |
WS |
M1 |
M01 |
AC |
|---|---|---|---|---|
Particle removal |
- |
1 micron |
0.01 micron |
- |
Max oil carryover at 68°F |
25 ppm |
0.1 ppm |
0.01 ppm |
0.003 ppm |
Recommended operating temp range |
35 to 212°F |
35 to 212°F |
35 to 212°F |
35 to 77°F |
Design operating temperature range |
35 to 248°F |
35 to 248°F |
35 to 248°F |
35 to 248°F |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
