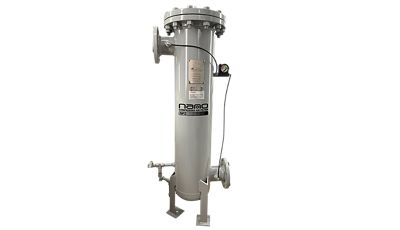

A large, gray, high flow capacity filter

Compressed Air & Gas Filters

High Flow Filters

Our high capacity fabricated carbon steel filters are a reliable and efficient liquid and particulate removal with low pressure drop for high flow industrial applications. These powerful filters are built in accordance with ASME VIII with U-Stamp approval. These models are available in two flow configurations to fit every application, and are manufactured in an ISO 9001 approved facility and tested in accordance with ISO 12500 for the best quality.

Key Specs:

Flow Rate

2500 to 10,000 scfm

Connection

4” to 10” ANSI Flg

Filtration

1, 1 HT & 0.01 micron & AC

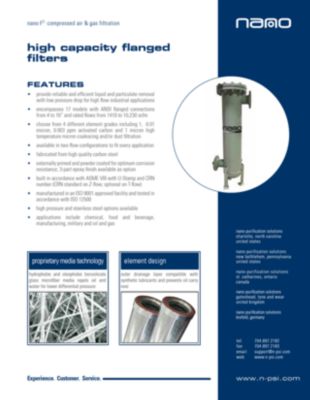

nano-purification solutions product brochure with equipment details

F2 NFZ/NFT - High Capacity Flanged Filters

Filename
EN-F2-NFZ-NFT-brochure-high-capacity-flanged-filters.pdf
Size
250 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View

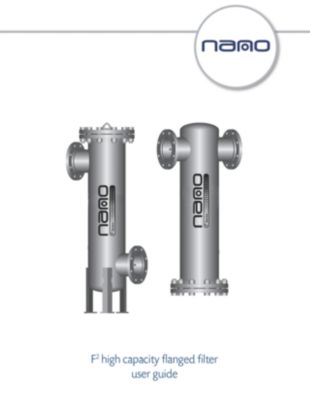

equipment user guide product manual

F2 NFZ - User Guide

Filename
F2-NFZ-2500-100000-user-guide-manual-high-capacity-flanged-filter.pdf
Size
2 MB
Format
application/pdf
View

Features

Fabricated from quality carbon steel; externally primed and powder coated for optimum corrosion resistance

These models are compatible with synthetic lubricants, and the outer drainage layer prevents carry over

High pressure, stainless steel, and 3-part epoxy finish options available

Specifications of our models

Filter Model

Replacement Element Part No.

Inlet & Outlet

Nominal Flow (1)

Flange

scfm

Nm3/h

NFZ 2500 (grade)

E 0853 (grade) - AL

4"

2500

4248

NFZ 3000 (grade)

E 0853 (grade) - AL

4"

3000

5097

NFZ 3500 (grade)

E 0853 (grade) - AL

6"

3500

5947

NFZ 4000 (grade)

E 0853 (grade) - AL

6"

4000

6796

NFZ 5000 (grade)

E 0853 (grade) - AL

6"

5000

8495

NFZ 6000 (grade)

E 0853 (grade) - AL

6"

6000

10,194

NFZ 7500 (grade)

E 0853 (grade) - AL

8"

7500

12,743

NFZ 8500 (grade)

E 0853 (grade) - AL

8"

8500

14,442

NFZ 10000 (grade)

E 0853 (grade) - AL

10"

10,000

16,990

NFT (T flow)

NFT 1700 (grade)

E 0853 (grade) - AL

4"

1700

2888

NFT 2500 (grade)

E 0853 (grade) - AL

4"

2500

4248

NFT 3500 (grade)

E 0853 (grade) - AL

6"

3500

5947

NFT 4000 (grade)

E 0853 (grade) - AL

6"

4000

6796

NFT 5000 (grade)

E 0853 (grade) - AL

6"

5000

8495

NFT 7000 (grade)

E 0853 (grade) - AL

8"

7000

11,893

NFT 8500 (grade)

E 0853 (grade) - AL

8"

8500

14,442

NFT 10000 (grade)

E 0853 (grade) - AL

10"

10,000

16,990

element performance

M1

M1 HT (1)

M01

AC

maximum particle size (ISO Class) (3)

2

2

1

-

maximum oil content (ISO Class) (3)

2

2

2

1

particle removal (microns)

1

1

0.01

-

max oil carry over at 68°F (ppm or mg/m3

0.1

0.1

0.01

0.003

recommended operating temp range

35 to 212°F /2 to 100°C

35 to 450 °F / 2 to 232°C

35 to 212°F / 2 to 100°C

35 to 77°F / 2 to 25°C

design operating temperature range

35 to 248°F / 2 to 120°C

35 to 450 °F / 2 to 232°C

35 to 248°F / 2 to 120°C

35 to 122°F / 2 to 50°C

(1) at 100 psig. For all other pressures, refer to the pressure correction factor table above

(2) per ISO 8573.0:2010

(3) for coalescing inlet is at bottom, outlet at top. For particulate, inlet is at top, outlet at bottom

(4) install with air flow from inside to outside for coalescing filtration and from outside to inside for dry particulate filtration

(5) differential pressure gauge indicators and external float drains are fitted to all models (except AC grade elements and

high temperature applications

(6) technical specifications subject to change without notice. Direct inquiries to [email protected] or contact 704.897.2182

Related Products

Mist Eliminator Filters

The nano-purification solutions range of mist eliminators deliver durability and low operating costs. Learn more about our filtration options today.

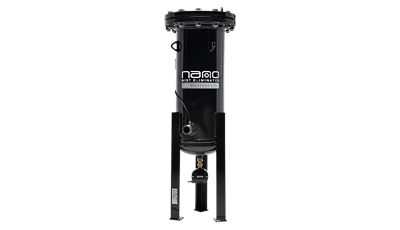

A large mist eliminator filter product on a stand with three legs

Timed Solenoid Drains

Our cost-effective timer drains work by utilizing their automatic valve to discharge downstream condensate build-up.

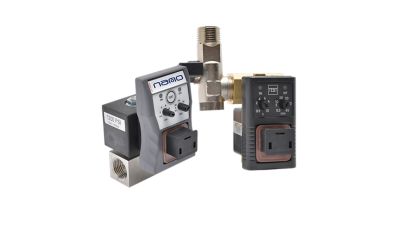

nano-purifications quality, high-performing timer drain options
