A nano legacy model, the R2 RTC refrigerated dryer

Legacy Equipment

RTC High Temperature Cycling Refrigerated Dryers

The nano RTC line of refrigerated dryers were specifically designed with an oversized condenser to provide clean, dry compressed air in unique demands of high temperature applications in a thermal mass cycling design.

nano-purification solutions product brochure with equipment details

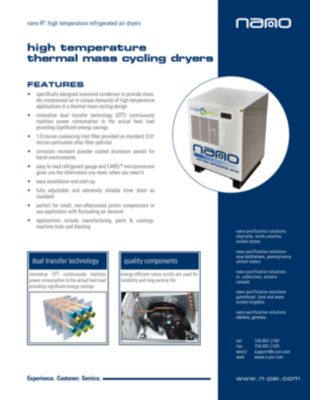

R2 RTC - Brochure

Filename
EN-R2-RTC-brochure-high-temperature-thermal-mass-cycling-dryers.pdf
Size
269 KB
Format
application/pdf
View
general arrangement drawing nano equipment

RTC 0010-0025 - General Arrangement (GA) Drawing

Filename
R2-RTC-0010-0025-ga-general-arrangement-drawing-without-filter.pdf
Size
307 KB
Format
application/pdf
View
general arrangement drawing nano equipment

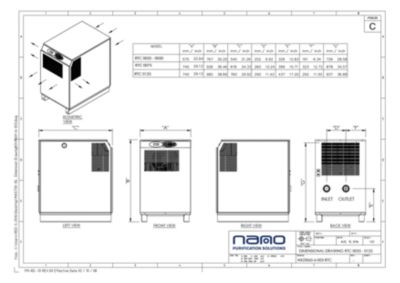

RTC 0035-0125 - General Arrangement (GA) Drawing

Filename
R2-RTC-0035-0125-ga-general-arrangement-drawing-without-filter.pdf
Size
364 KB
Format
application/pdf
View
nano equipment user guide

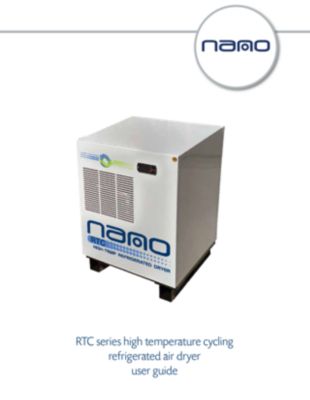

R2 RTC - User Guide

Filename
R2-RTC-0010-0125-user-guide-manual-high-temperature-cycling-refrigerated-dryer.pdf
Size
2 MB
Format
application/pdf
View

Specifications of these models

Dryer Model

Prefilter (Included)

Inlet & Outet

Rated Flow (1)

Absorbed Power (2)

Power Supply (V/Ph/60Hz)

NPT

scfm

Nm3/h

kW

115/1

230/1

RTC 0010-F

NF 0050 M1

½”

10

16

0.23



RTC 0015-F

NF 0085 M1

¾”

15

24

0.24



RTC 0025-F

NF 0085 M1

¾”

25

40

0.25



RTC 0035-F

NF 0090 M1

1”

35

56

0.47



RTC 0050-F

NF 0090 M1

1”

20

80

0.49



RTC 0075-F

NF 0290 M1

1 ½”

75

120

0.97



RTC 0125-F

NF 0450 M1

2”

125

201

1.41



Specifications

Design operating pressure range

0 to 232 psig / 0 to 69 barg

Maximum inlet temperature

158°F / 70°C

Maximum ambient temperature

110°F to 122°F / 43 to 50°C depending on refrigerant

Prefilter (included)

M1 (1 micron)

Condensate drain (included)

automatic timed solenoid

(1) at 125 psig & 140°F /8.6 barg & 60°C inlet conditions, 95°F/35°C ambient and a 50°F/10 outlet pressure dew point. For all other conditions, please contact support for sizing assistance

(2) nominal absorbed power at rated operating conditions using 115/1/60 and 230/1/60 power supply (as applicable). For absorbed power at other voltages or conditions, contact [email protected]

(3) 115 volt models include a 6-foot power cord and plug

(4) grade M01 (0.01 micron) after filter available as an option

(5) Intertek UL/CSA 22.2 approval (models RTC 0010 to RNC 0075)

(6) technical specifications subject to change without notice. Direct inquiries to support or contact 704.897.2182
