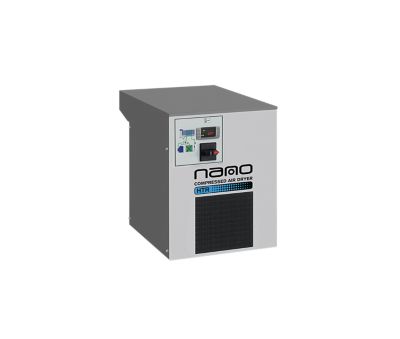

A nano high temperature direct expansion refrigerated compressed air dryer

Refrigerated Compressed Air Dryers

High-Inlet Temperature Direct Expansion Refrigerated Dryers

Are you looking for a reliable and efficient solution for your high-inlet temperature compressed air applications? Look no further than the HTR high-inlet temperature refrigerated compressed air dryers, part of the highly-regarded nano R2 range. With an integrated pre-cooler, this dryer is capable of providing clean and dry compressed air even when inlet temperatures are as high as 180°F. The zero air loss drain is a standard feature, enhancing the dryer's energy efficiency and reliability. You can trust the HTR dryer to deliver an outlet dew point of 50°F, keeping your operations running smoothly and efficiently. Upgrade to the HTR high-inlet temperature refrigerated compressed air dryer today.

Request Price

Key Specs:

Flow Rate

25 to 125 scfm

Connection

¾” NPT (M) to 1” NPT (F)

Air Quality

ISO 8573.1:2010 Class 6

Product Documentation

Product leaflet

HTR Refrigerated Dryers for High Temperature Applications

Product leaflet
Filename
2026_R2_ HTR_US_Letter_2pg_Brochure_v0.pdf
Size
460 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

ISO compressed air quality standards brochure
Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View

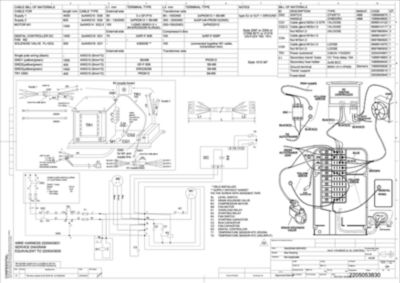

The R2 HTR 0025 electrical diagram

R2 HTR 0025 - Electrical Diagram

The R2 HTR 0025 electrical diagram
Filename
R2-HTR-0025-electrical-wiring-schematics-high-temperature-direct-expansion-refrigerated-dryer-ED-03.pdf
Size
1006 KB
Format
pdf
View

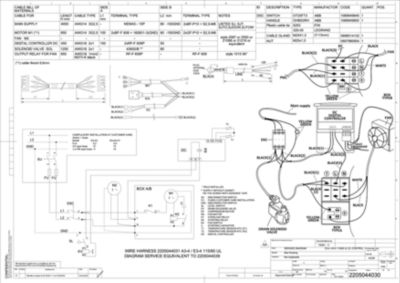

The R2 HTR 0050 electrical diagram

R2 HTR 0050 - Electrical Diagram

The R2 HTR 0050 electrical diagram
Filename
R2-HTR-0050-electrical-wiring-schematics-high-temperature-direct-expansion-refrigerated-dryer-ED-05.pdf
Size
865 KB
Format
pdf
View

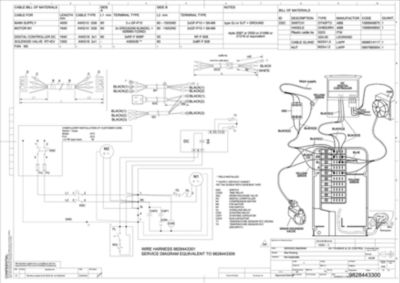

The R2 HTR 0075 electrical diagram

R2 HTR 0075 - Electrical Diagram

The R2 HTR 0075 electrical diagram
Filename
R2-HTR-0075-electrical-wiring-schematics-high-temperature-direct-expansion-refrigerated-dryer-ED-04.pdf
Size
805 KB
Format
pdf
View

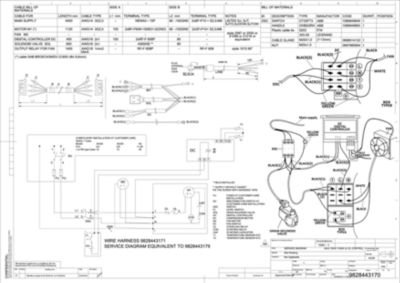

The R2 HTR 0100-0125 electrical diagram

R2 HTR 0100-0125 - Electrical Diagram

The R2 HTR 0100-0125 electrical diagram
Filename
R2-HTR-0100-0125-electrical-wiring-schematics-high-temperature-direct-expansion-refrigerated-dryer-ED-03.pdf
Size
1 MB
Format
pdf
View
The general arrangement drawing for the R2 HTR refrigerated dryer 0025

R2 HTR 0025 - General Arrangement (GA) Drawing

The general arrangement drawing for the R2 HTR refrigerated dryer 0025
Filename
R2-HTR-0025-ga-general-arrangement-drawing-ED-05.pdf
Size
225 KB
Format
pdf
View
The general arrangement drawing for the R2 HTR refrigerated dryers 0050-0125

R2 HTR 0050-0125 - General Arrangement (GA) Drawing

The general arrangement drawing for the R2 HTR refrigerated dryers 0050-0125
Filename
R2-HTR-0050-0125-ga-general-arrangement-drawing-ED-01.pdf
Size
263 KB
Format
pdf
View

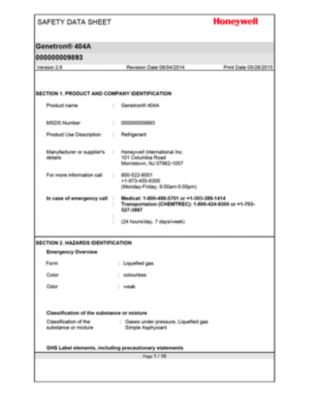

Microsoft Word - 00000000000002851764_1432878613255.rtf

Microsoft Word - 00000000000002851764_1432878613255.rtf

Material Safety Data Sheet

Filename
EN-HTR-Refrigerated-Dryers-MSDS-R4040A-EN.pdf
Size
59 KB
Format
pdf
View
NA MSDS

NA MSDS

Material Safety Data Sheet

Filename
EN-DXR-TMC-HTR-Refrigerated_Dryers-MSDS-R513A-EN.pdf
Size
333 KB
Format
pdf
View
Instruction booklet for the R2 HTR refrigerated dryers, model 0025

R2 HTR 0025 - Instruction Book

Instruction booklet for the R2 HTR refrigerated dryers, model 0025
Filename
R2-HTR-0025-Instruction-Book-ED-00.pdf
Size
927 KB
Format
pdf
View
Instruction booklet for the R2 HTR refrigerated dryers, models 0050-0125

R2 HTR 0050-0125 - Instruction Book

Instruction booklet for the R2 HTR refrigerated dryers, models 0050-0125
Filename
R2-HTR-0050-0125-Instruction-Book-ED-00.pdf
Size
1 MB
Format
pdf
View
equipment worksheet product technical paper

R-Series Application Worksheet

equipment worksheet product technical paper
Filename
EN-R-series-worksheet-refrigerated-dryers.pdf
Size
186 KB
Format
pdf
View

Features

These plug-and-play systems are combined with space-saving design.

Dryers include a digital display with high/low dew point indicator and service reminder.

Pre- and after filter packages are available to provide additional energy savings and improved air quality.

Specifications of Our Models

High-Inlet Temperature

Refrigerated Dryer Model

Prefilter
(Recommended)

Inlet & Outlet

Rated Flow at 125 psig

Absorbed Power

Part No.

NPT

scfm

kW

HTR 0025

GFN 0050 M1

½”

25

0.47

HTR 0050

GFN 0050 M1

1”

50

0.70

HTR 0075

GFN 0085 M1

¾”

75

1.37

HTR 0100

GFN 0105 M1

¾”

100

1.33

HTR 0125

GFN 0175 M1

¾”

125

1.55

Specifications

Design operating pressure range

0 to 232 psig

Maximum inlet temperature

180°F

Maximum ambient temperature

120°F

Inlet filter (optional)

M1 (1 micron)

Condensate drain (included)

zero air loss

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
