The nano membrane nitrogen generator option for strict standard environments

Nitrogen Generation

Membrane Nitrogen Generators

The nano NMG membrane gas generators use a simple and proven membrane technology to separate this nitrogen from the air simply and cost effectively with no moving parts or electricity.  With a rapid return on investment, this range of generators produces nitrogen in-house simply and inexpensively, requiring only a pre-treated compressed air system.

Key Specs:

Purity

95 to 99.9%

Flow Rate

8 to 2500 scfh

Added Feature

Wall-mountable System

Product Documentation

The product brochure for the membrane nitrogen generator range

N2 NMG - Brochure

Filename
EN-N2-NMG-brochure-high-purity-membrane-nitrogen-generators-REV-01.pdf
Size
747 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
The user guide for the nmg membrane nitrogen generator

N2 NMG - User Guide (REV 004)

Filename
N2-NMG-115-1317-user-guide-membrane-nitrogen-generator-REV-004.pdf
Size
3 MB
Format
application/pdf
View
A pre-filter installation diagram for the NNG nitrogen generator

N2 NNG - Pre Filtration Diagram

Filename
N2-NNG-diagram-Pre-Filtration.pdf
Size
213 KB
Format
application/pdf
View
equipment worksheet product technical paper

N-Series Application Worksheet

Filename
EN-N2-Series-worksheet-nitrogen-generators.pdf
Size
214 KB
Format
application/pdf
View
equipment worksheet product technical paper

N-Series Technical Paper

Filename
EN-N2-Series-technical-paper-nitrogen-generators.pdf
Size
464 KB
Format
application/pdf
View
equipment worksheet product technical paper

N-Series E941 Food Grade Certificate

Filename
EN-N2-Series-declaration-certificate-food-grade-E941-nitrogen-generators.pdf
Size
262 KB
Format
application/pdf
View
N2-NMG115-General-Arrangement-Drawing

N2 NMG 115- GA Drawing

Filename
N2-NMG115-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
N2-NMG130-General-Arrangement-Drawing

N2 NMG 130- GA Drawing

Filename
N2-NMG130-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
N2-NMG163-general-arrangement-drawing-nitrogen-generator

N2 NMG 163- GA Drawing

Filename
N2-NMG163-ga-drawing-nitrogen-generator.pdf
Size
1009 KB
Format
application/pdf
View
N2-NMG1126-general-arrangement-drawing-nitrogen-generator

N2 NMG 1126 - GA Drawing

Filename
N2-NMG1126-ga-general-arrangement-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
N2-NMG1317-general-arrangement-drawing-nitrogen-generator

N2 NMG 1317- GA Drawing

Filename
N2-NMG1317-ga-general-arrangement-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View

Features

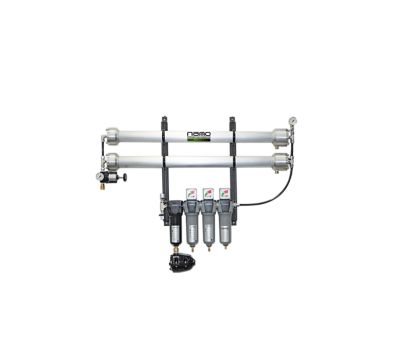

All-in-one packages includes F1.1 centrifugal water separator, NMD magnetic condensate drain, F1.1 1.0 and 0.01 micron coalescing filters, F1 AC activated carbon filter with no electricity required

Composed of hundreds of thousands of hollow fibers separate nitrogen from air through a process known as selective permeation

Compact and lightweight design provides horizontal or vertical placement in tight spaces with wall mounting brackets included as standard

Specifications of our models

Generator Model

Inlet Air

Pressure

Air Inlet Requirement and Nitrogen Flow by Model

scfh Nitrogen (scfm Feed Air)

psig

99.9%

(0.1%)

99.5%

(0.5%)

99%

(1%)

98%

(2%)

97%

(3%)

96%

(4%)

95%

(5%)

NMG 115

100

8 (1)

15 (1)

23 (1)

29 (1)

38 (2)

49 (2)

56 (2)

125

12 (2)

21 (2)

32 (2)

42 (2)

56 (2)

67 (3)

77 (3)

150

13 (2)

24 (2)

35 (2)

45 (2)

63 (3)

77 (3)

91 (3)

200

20 (3)

35 (3)

56 (3)

70 (3)

95 (4)

113 (4)

134 (4)

NMG 130

100

16 (2)

30 (2)

46 (2)

58 (2)

76 (4)

98 (4)

112 (4)

125

24 (4)

42 (4)

64 (4)

84 (4)

112 (4)

134 (6)

154 (6)

150

26 (4)

48 (4)

70 (4)

90 (4)

126 (6)

154 (6)

182 (6)

200

40 (6)

70 (6)

112 (6)

140 (6)

190 (8)

226 (8)

268 (8)

NMG 163

100

32 (5)

63 (5)

84 (5)

130 (6)

165 (7)

204 (8)

243 (9)

125

44 (7)

87 (7)

116 (7)

176 (8)

226 (9)

278 (11)

328 (11)

150

50 (8)

101 (8)

134 (8)

197 (9)

257 (10)

314 (12)

388 (13)

200

73 (12)

146 (12)

194 (12)

293 (13)

388 (15)

459 (17)

529 (18)

NMG 1126

100

64 (10)

126 (10)

168 (10)

260 (12)

330 (14)

408 (16)

486 (18)

125

88 (14)

174 (14)

232 (14)

352 (16)

452 (18)

556 (22)

656 (22)

150

100 (16)

202 (16)

268 (16)

394 (18)

514 (20)

628 (24)

776 (26)

200

146 (24)

292 (24)

388 (24)

586 (26)

776 (30)

918 (34)

1058 (36)

NMG 1317

100

159 (26)

317 (26)

423 (26)

600 (29)

776 (32)

953 (36)

1130 (39)

125

212 (35)

424 (35)

565 (34)

812 (38)

1059 (43)

1306 (48)

1518 (52)

150

238 (40)

476 (40)

635 (38)

918 (41)

1200 (48)

1447 (52)

1730 (58)

200

357 (60)

715 (60)

953 (57)

1341 (60)

1765 (70)

2154 (78)

2542 (85)

Specifications

inlet & outlet connections

½” NPT

Design operating pressure range

100 to 200 psig / 7 to 14 bar

Design operating temperature range

41 to 113°F / 5 to 45°C

Pressure drop

7 to 10 psig / 0.5 to 0.7 bar

(1) the amount of compressed air required at the inlet as a function of the nitrogen flow at the outlet. Values are approximate. Contact us for detailed compressed air inlet requirements. At 100 psig inlet. For feed air required at different inlet pressure, contact support
